Bottle Typing/Diagnostic Shapes

Bottle group showing a variety of bottle shapes; click to enlarge.

1916-1917 Kearns-Gorsuch Bottle Co.
Bottle Catalog

HOME: Bottle Typing/Diagnostic Shapes: 1906 I.G.Co. Bottle Catalog

One of the best sources for determining bottle types based on the shape are old glass/bottle makers catalogs.  An assortment of catalogs have been used in the preparation of this website to assist with bottle dating, and in particular, bottle typing - i.e., what a bottle likely contained or was used for.  A very few bottle makers catalog were reproduced in the 1960s and 1970s, but all are long out of print and variably difficult to obtain.  However, there is no better source for determining potential use and period shape names than these old catalogs.

Because of this utility to archaeologists and collectors alike, I have reproduced the entire 1916-1917 Kearns-Gorsuch Bottle Company (KGBCo.) catalog on this website; a catalog never reproduced to the authors knowledge although a few examples of it are known to be in the hands of collectors (empirical observations).  This catalog was titled "The Packers' Handy Reference Book" (cover to the right) indicating the market niche the company was aiming towards.  The KGBCo. was located in Zanesville, OH. and was a large producer of various bottles, though specialized in bottles and jars for commercial packers of various food products.  This catalog shows the large array of food bottles and jars the company produced, as well as a smattering of other bottle types with lesser variety.

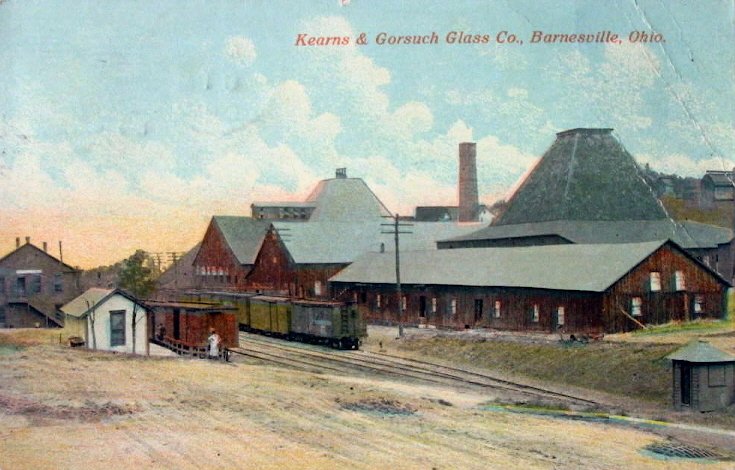

(The image of the company's Barnesville, OH. factory below is from a 1916 postcard. This factory was used from 1912 until it burned down in 1919.  See the linked article on the company below.)

The title page notes that the catalog contains "Machine Made and Hand Blown" bottles although it appears that a large majority of the bottles - in the opinion of the author of this site - are machine-made.  Some of the sauce bottles may have been mouth blown as may have been special orders for those customers who "...prefer shapes and designs of their own." (See page 9 of the catalog.)  The timing of this catalog - 1916-1917 - is important as that was the time where the production of machine-made bottles was clearly dominating the bottle market, with mouth-blown containers an every shrinking minority.  An important study of machine-made vs. mouth-blown production in the early 20th century noted that by 1917 roughly 5 to 10% of the bottles and jars produced in the U.S. were mouth or hand-blown; 90+% were produced by automatic and semi-automatic methods and would exhibit typical machine-made characteristics (Miller & Sullivan 1981).

For a complete history of the Kearns-Gorsuch Bottle Co. (and its predecessors) consult the following reference; a pdf copy of this article is included on this website (excerpted from the References Sources/Bibliography page):

Lockhart, Bill, Pete Schulz, Carol Serr, and Bill Lindsey.  2008d. The Kearns Glass Companies. Bottles and Extras 19(4):50-58 (July/August 2008).  Covers the history - and related maker’s markings - of the various Kearns Glass Companies in Zanesville, OH. (primarily).  This article is available on this website at:

For additional information on the bottles this company made, see the recently published book (2011) entitled Zanesville Glass by J. William Barrett II.   Scores of  illustrated bottle catalog pages from the 1908 and early 1910s (approximate; both catalogs are undated) KGBCo. catalogs - those pages which are not repeated in the following 1916-1917 catalog (which is reproduced in its entirety) - are reprinted in the later portions of this book.  Zanesville Glass (an exceptional work!) also includes various bottle listing illustrations from a 1920 KGBCo. catalog as well as information from catalogs published in 1926, 1929 and 1931 after the company was acquired by Hazel-Atlas (1920).  A comparison of these various catalogs makes for an interesting study of the time progression of designs, sizes, finishes, and much more.  (See the References page for an email link to contact Bill Barrett about the availability of this fine work on all the various Zanesville, OH. glass makers and their products.)

Also of notable interest are pages 58, 104 and 122 which in combination outline the details of "The National Pure Food Law - The Pure Food and Drugs Act, June 30th, 1906, as Amended August 23, 1912."  (Page 104 also includes a reference to the Gould Act of 1913 which specified the period for compliance to take place.)  This is apparently an entire copy of the amended law which includes the original act details as well as a discussion of the "The Net Weight Law" amendment from 1912 which "...compels manufacturers to make a clear statement of the weight, volume or contents of their packages of food."  The 1912 amendment, in hand with the Gould Amendment (March 3rd, 1913), required the clear labeling of the contents of bottled products.  This is a useful dating tool for bottles having such (on the label or embossed in the glass) since very few bottled products had such designation prior to these laws which in combination required compliance no later than September 1914 (Lockhart 2006a).

All of the pages in the 1916-1917 KGBCo. catalog are hyperlinked below in the order they appear in the catalog.  Click on each link to view an enlarged and of relatively high quality (around 400-600 KB each) copy of each two page scan (jpeg files).  Each link description consists of the catalog page numbers  and the general subject matter of those pages - as appropriate or useful - with the two pages generally split with a slash (/) mark.

If a user wishes to search for a particular bottle type  (or other catalog listing) in the catalogs "Index," these pages are linked immediately below.  Determine the page number of the item you are interested in then find that page link further down this page and click on it.  Just be aware that some of the proprietary names that the company (and all bottle making companies) used are not always intuitively clear as to what type of bottle it is referring to:

Page 5 - Albion jars to Massage creams
Page 6 - Moulds to Worcestershire sauce

After viewing an enlarged scan, use the back arrow on your browser to return to this page.  Unfortunately, a user can not move from one page scan to the next without returning to this page (a function of my limited web coding knowledge).

Thanks to the efforts of a kind user of this website the entire array of scans of the 1916-1917 KGBCo. catalog have been put together into one single, downloadable PDF file!  It is 90 MB's in size so may take a while to download and view depending on the speed of your internet connection.  It is available at this link:
Complete 1916-1917 Kearns-Gorsuch Bottle Co. catalog

Bottle catalog cover

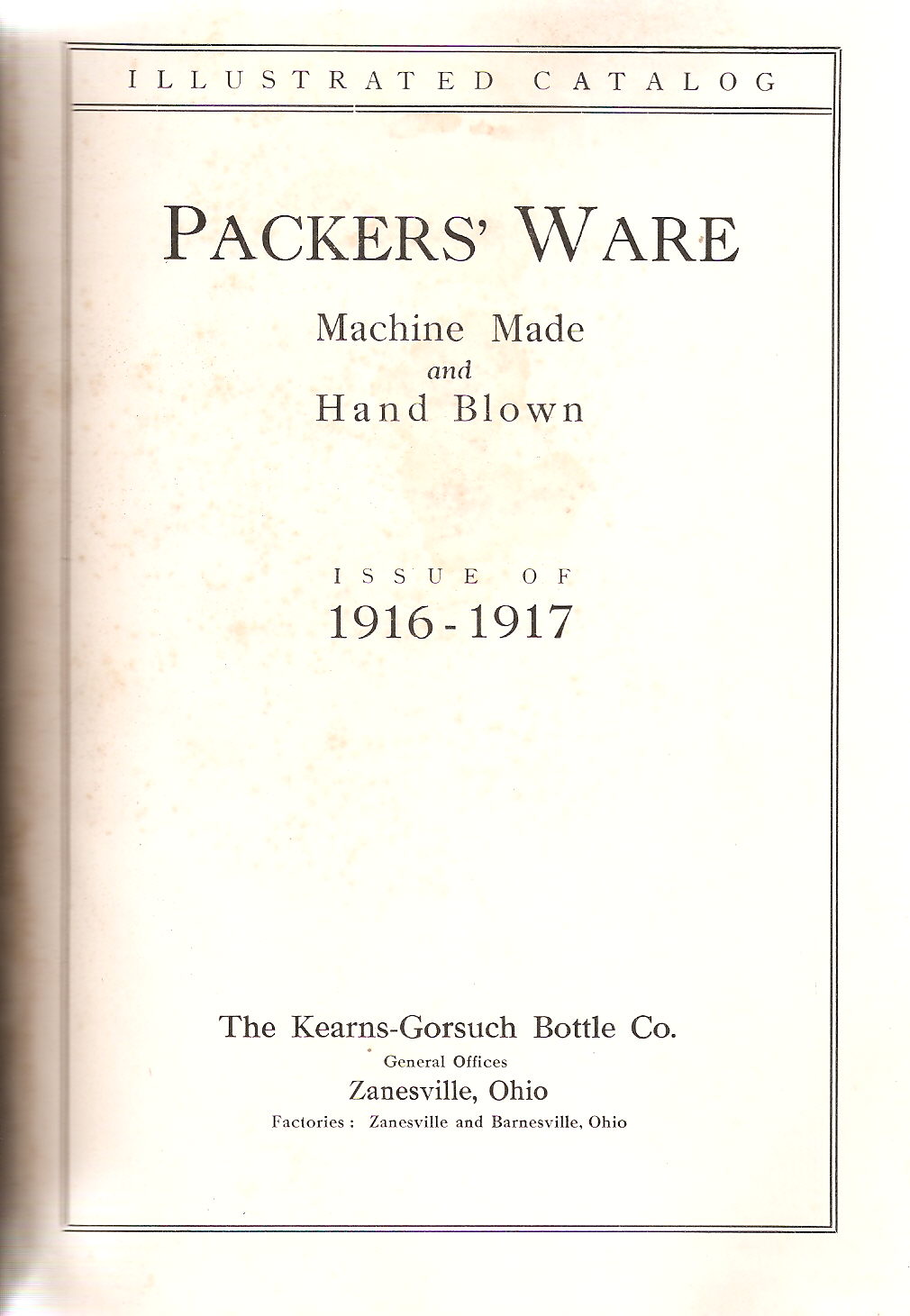

Page 1: Title page

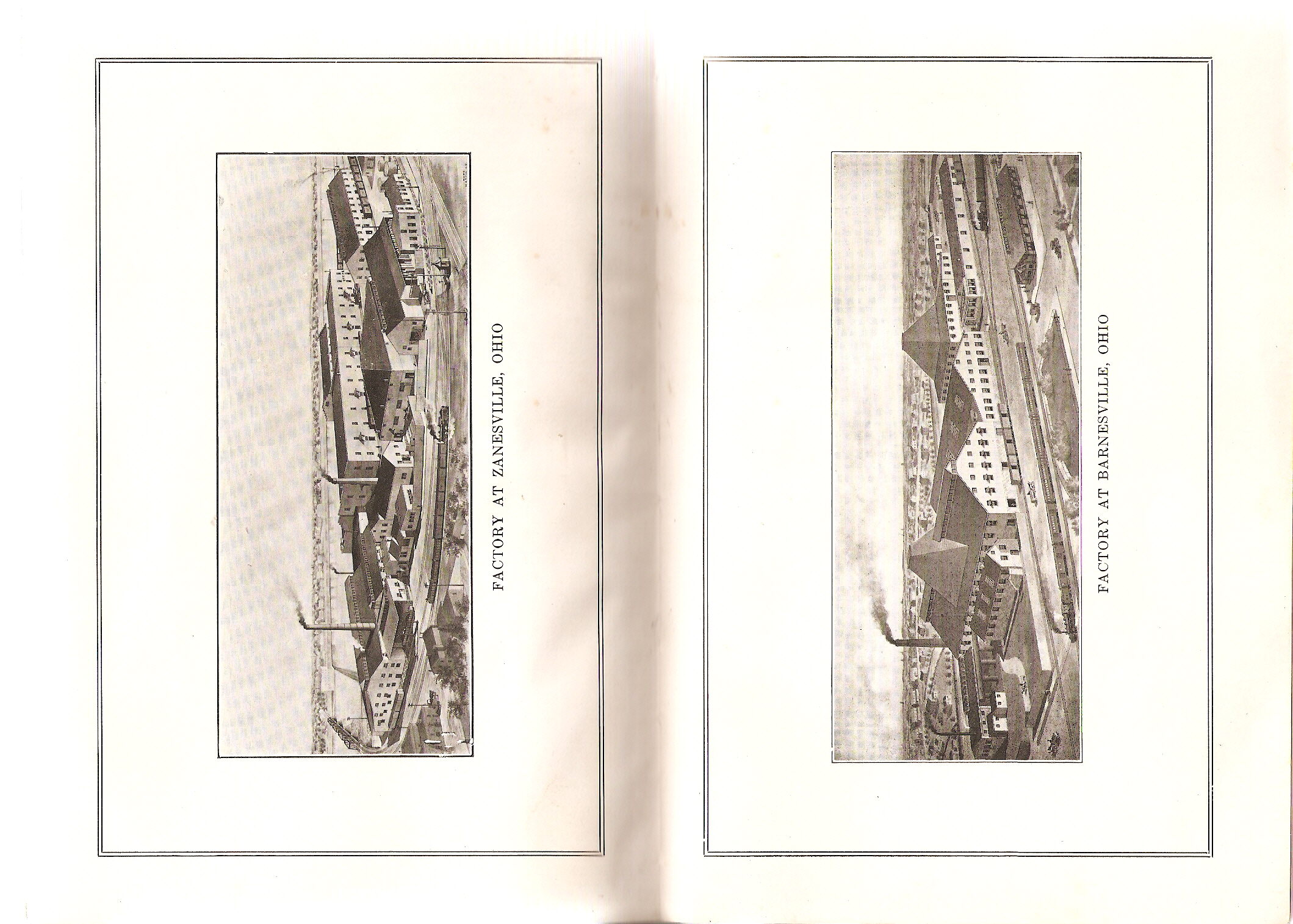

Pages 2-3: Illustrations of the Zanesville, OH. / Barnesville, OH. plants

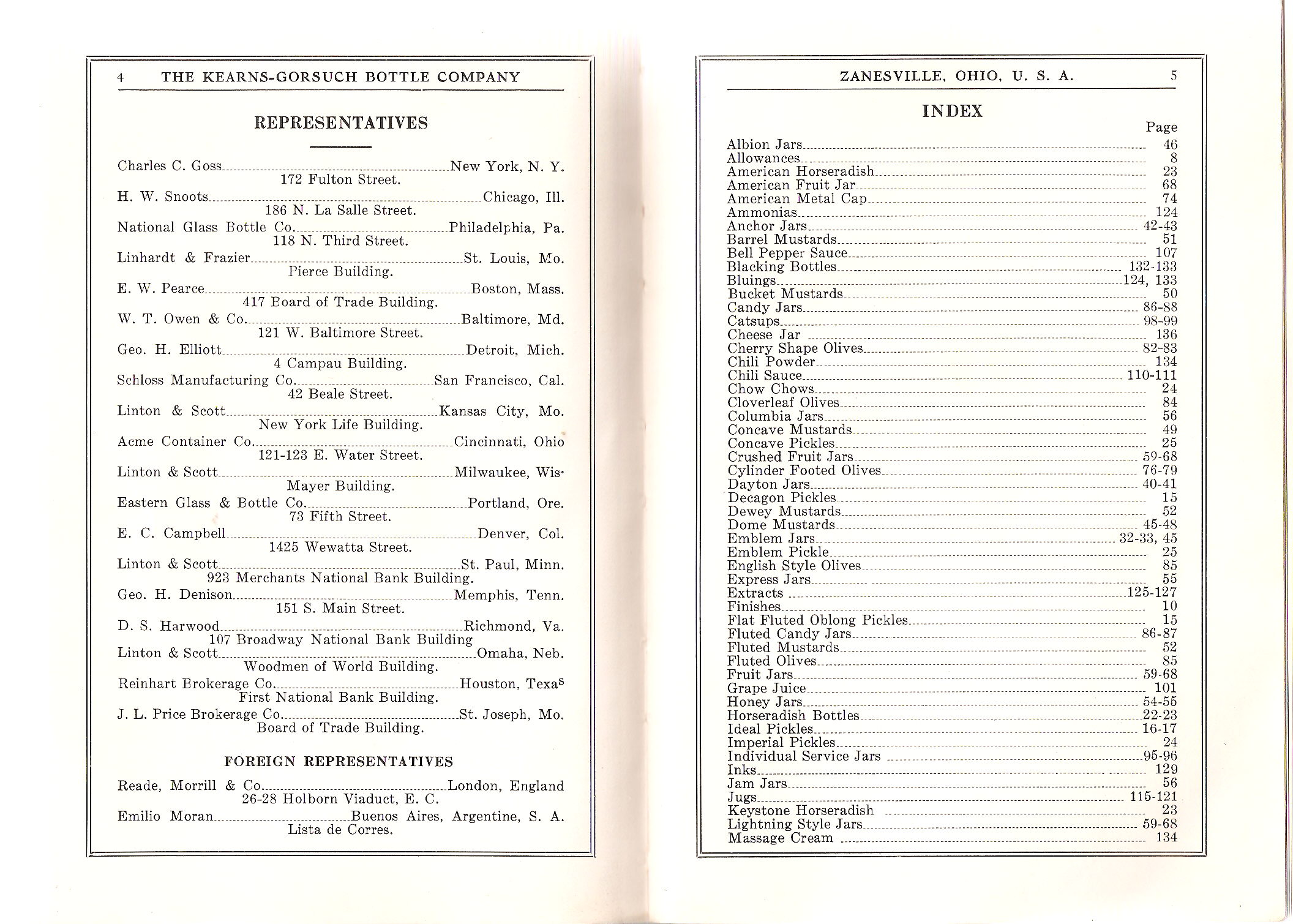

Pages 4-5: List of Company Representatives / Index (first page)

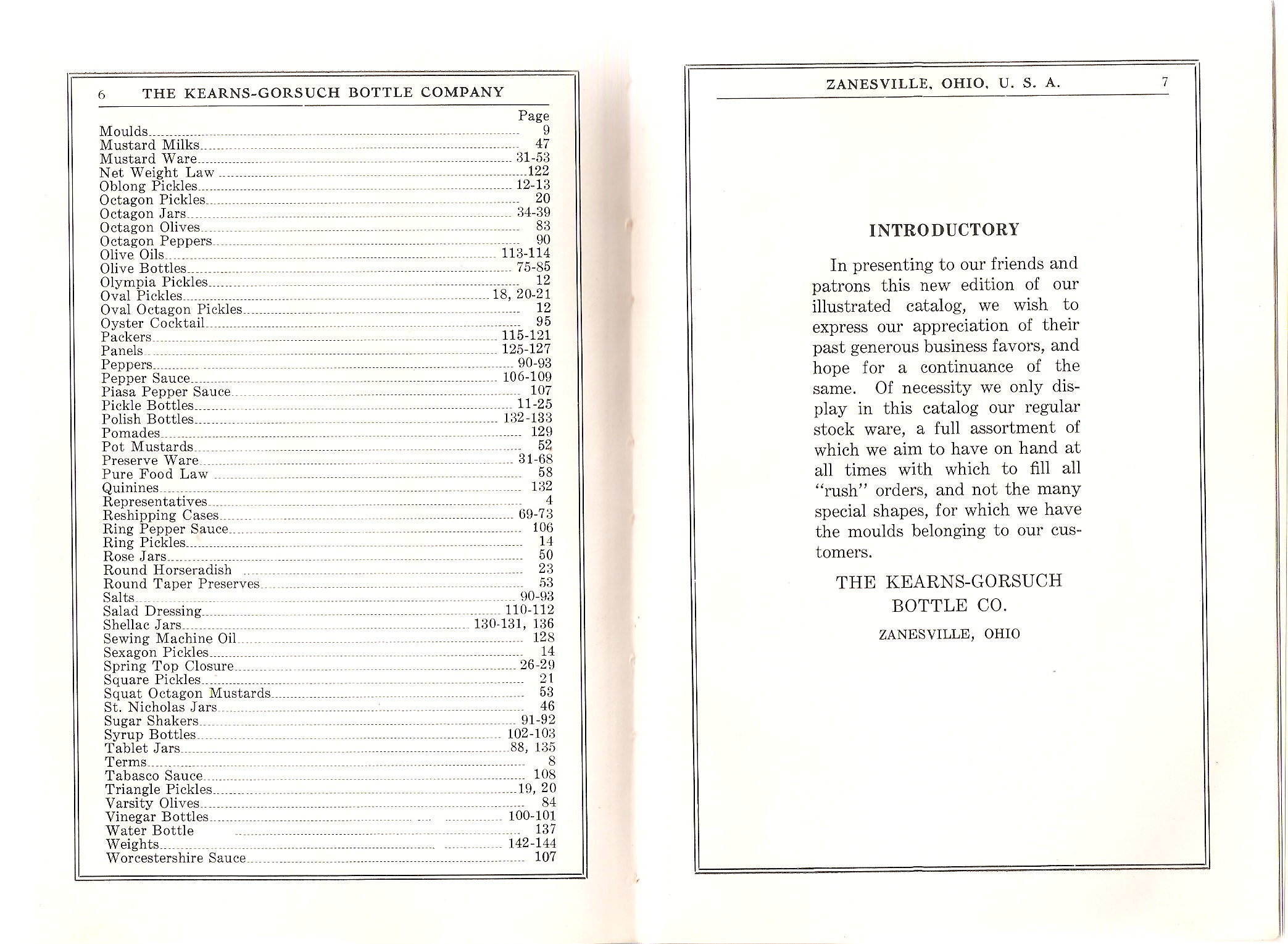

Pages 6-7: Index (second & last page) / Introductory statement

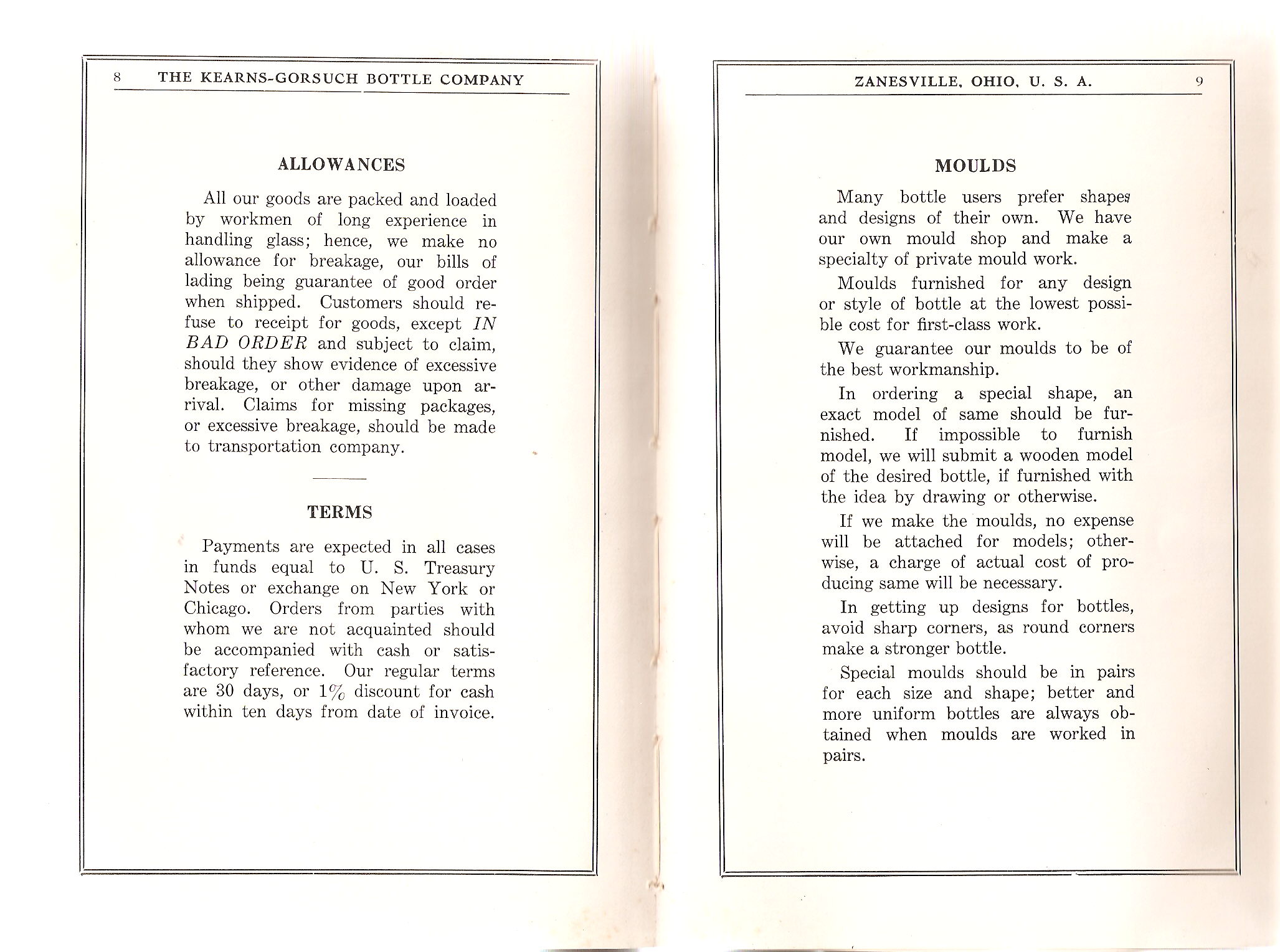

Pages 8-9: Allowances and Terms / Moulds (their spelling)

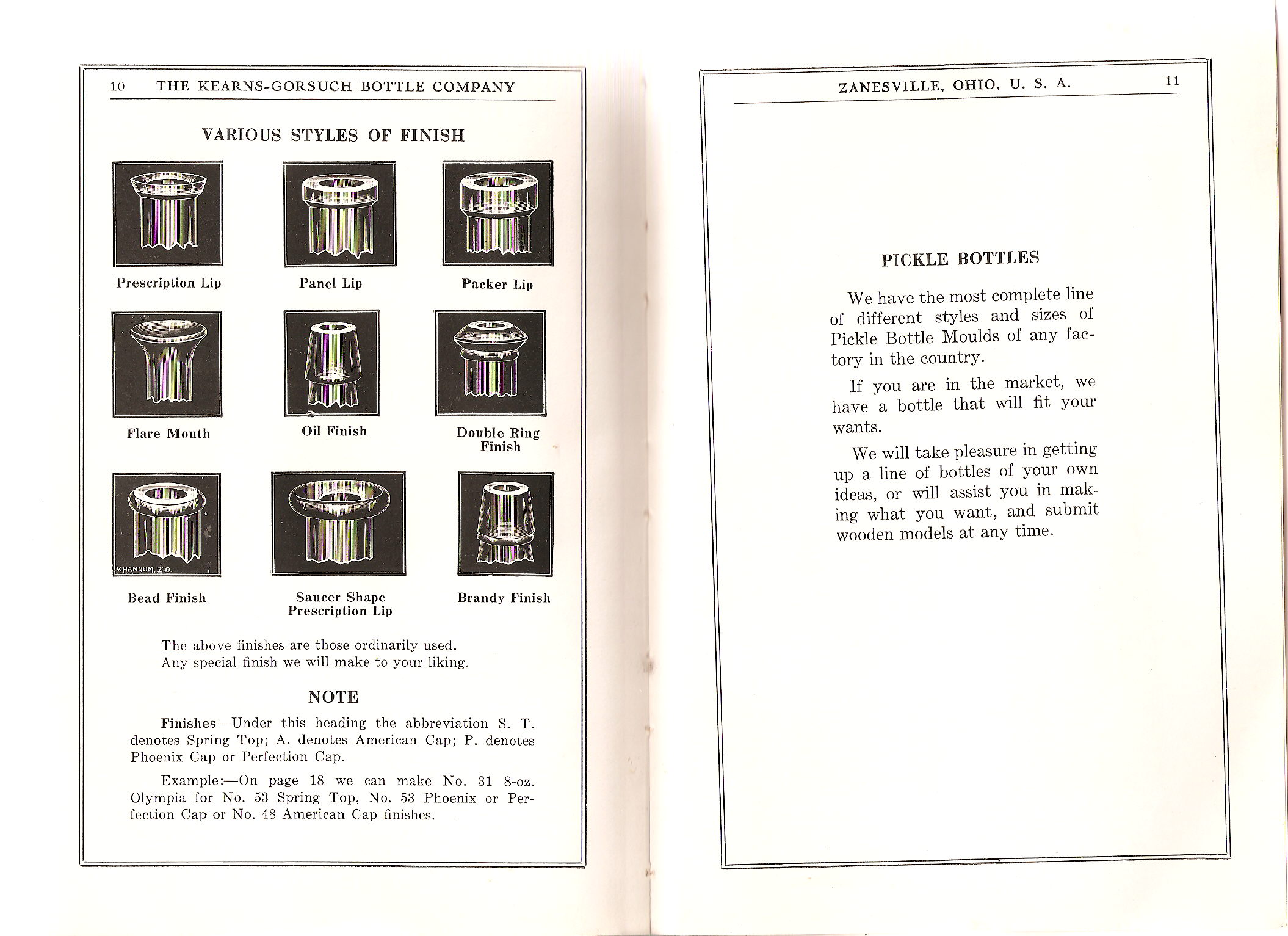

Pages 10-11: Illustration of Various Styles of Finish / Pickle Bottles introduction

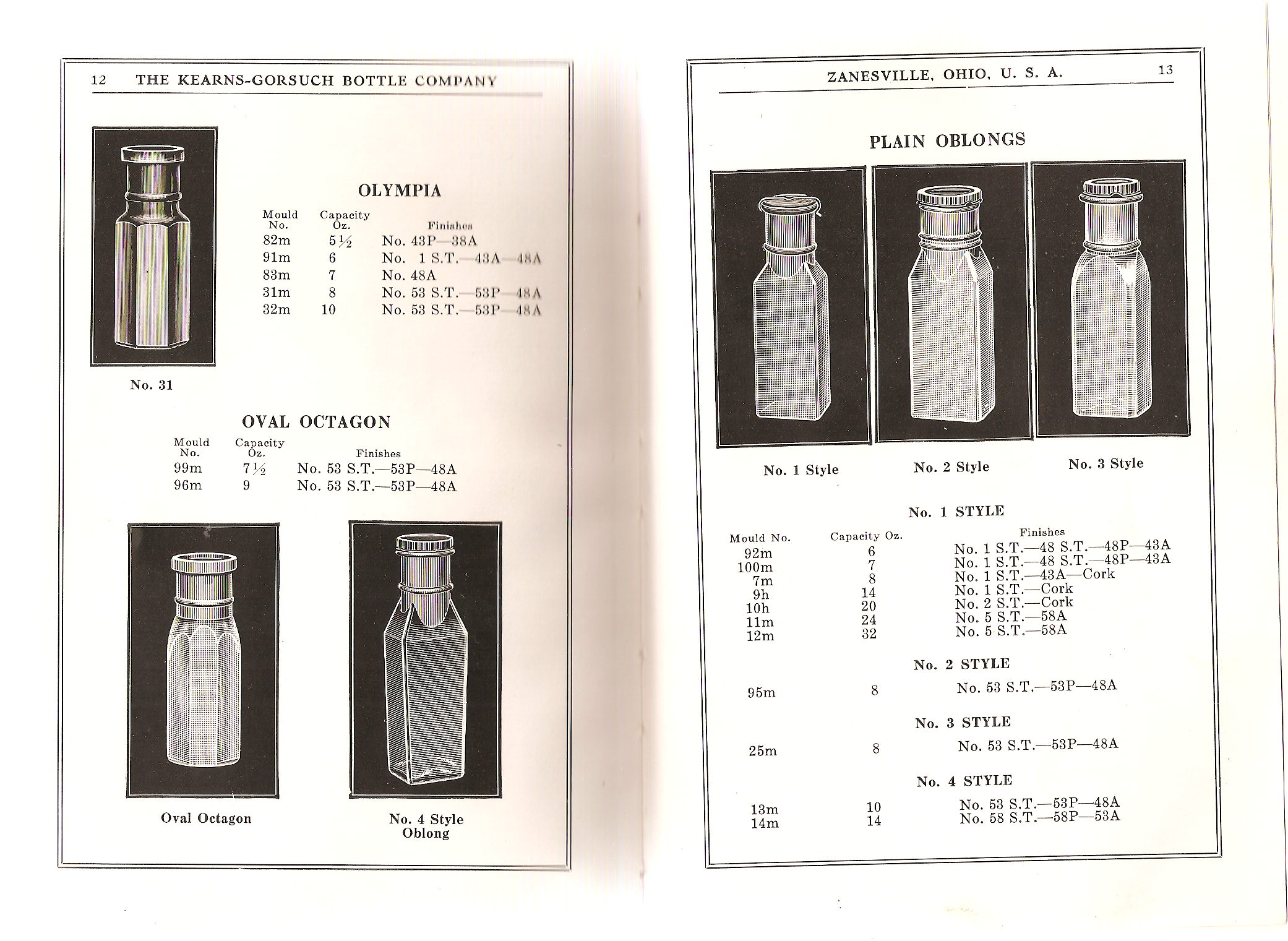

Pages 12-13: Olympia & Oval Octagon / Plain Oblong pickles

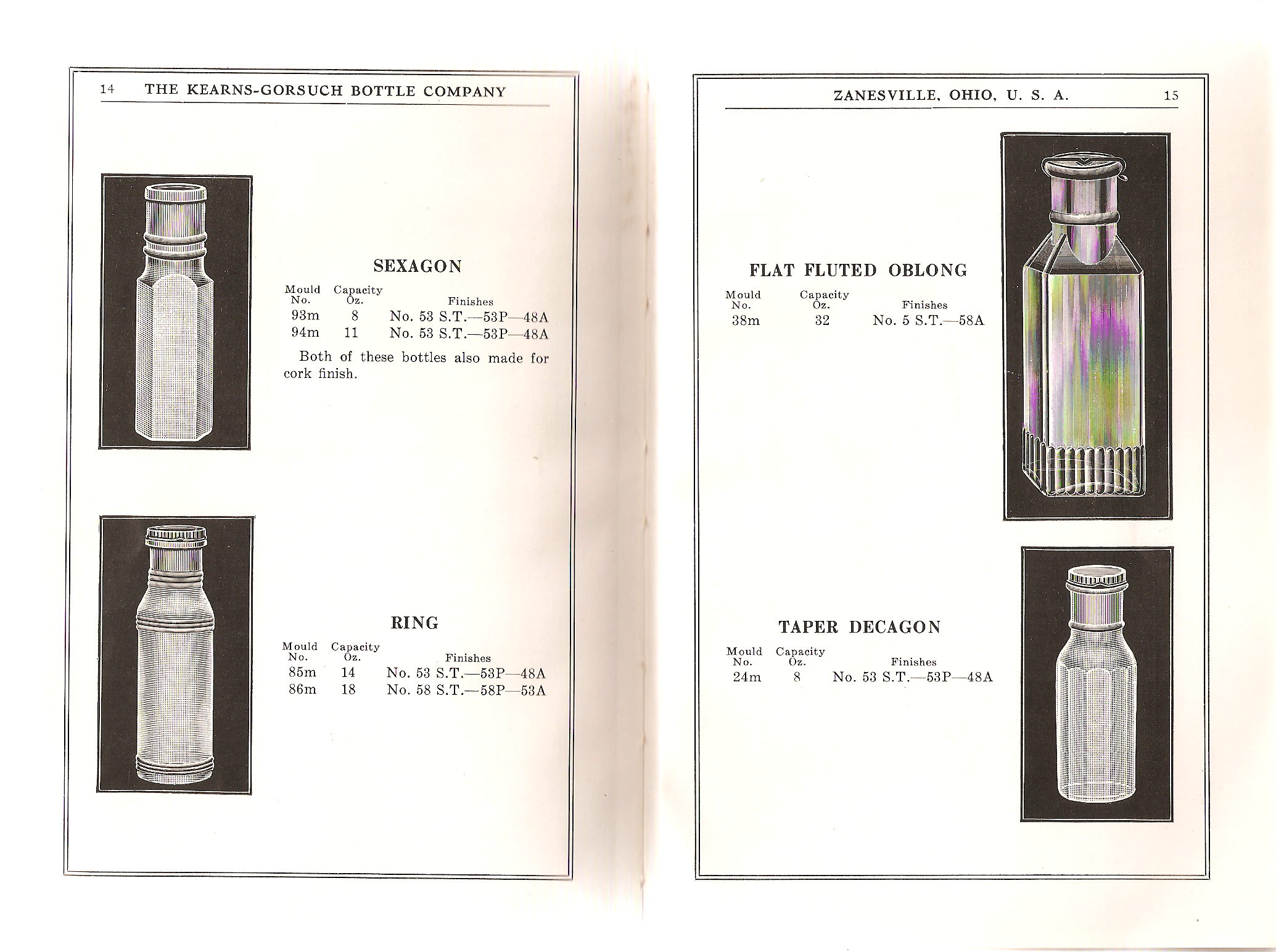

Pages 14-15: Sexagon & Ring / Flat Fluted Oblong & Taper Decagon

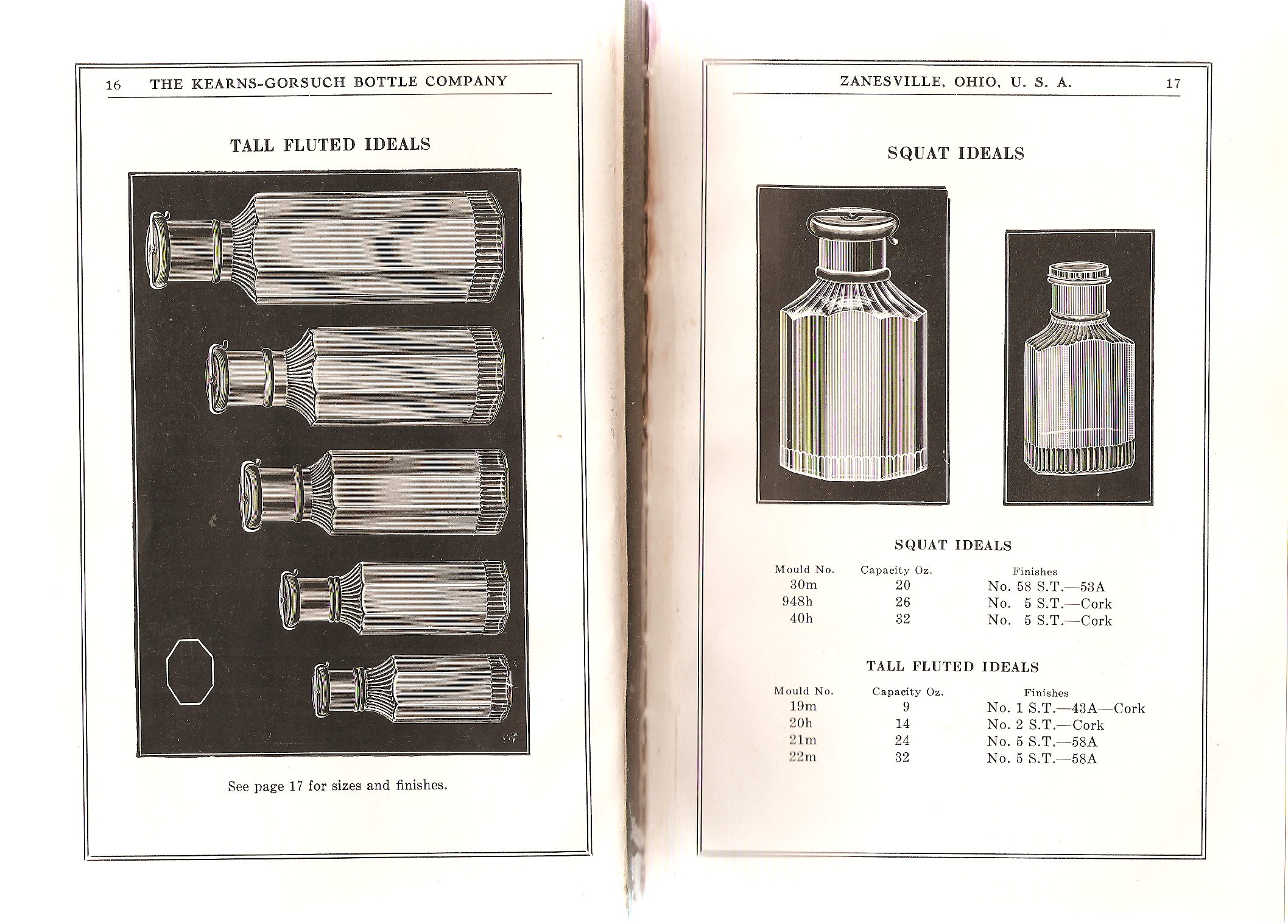

Pages 16-17: Tall Fluted Ideals / Squat Ideas

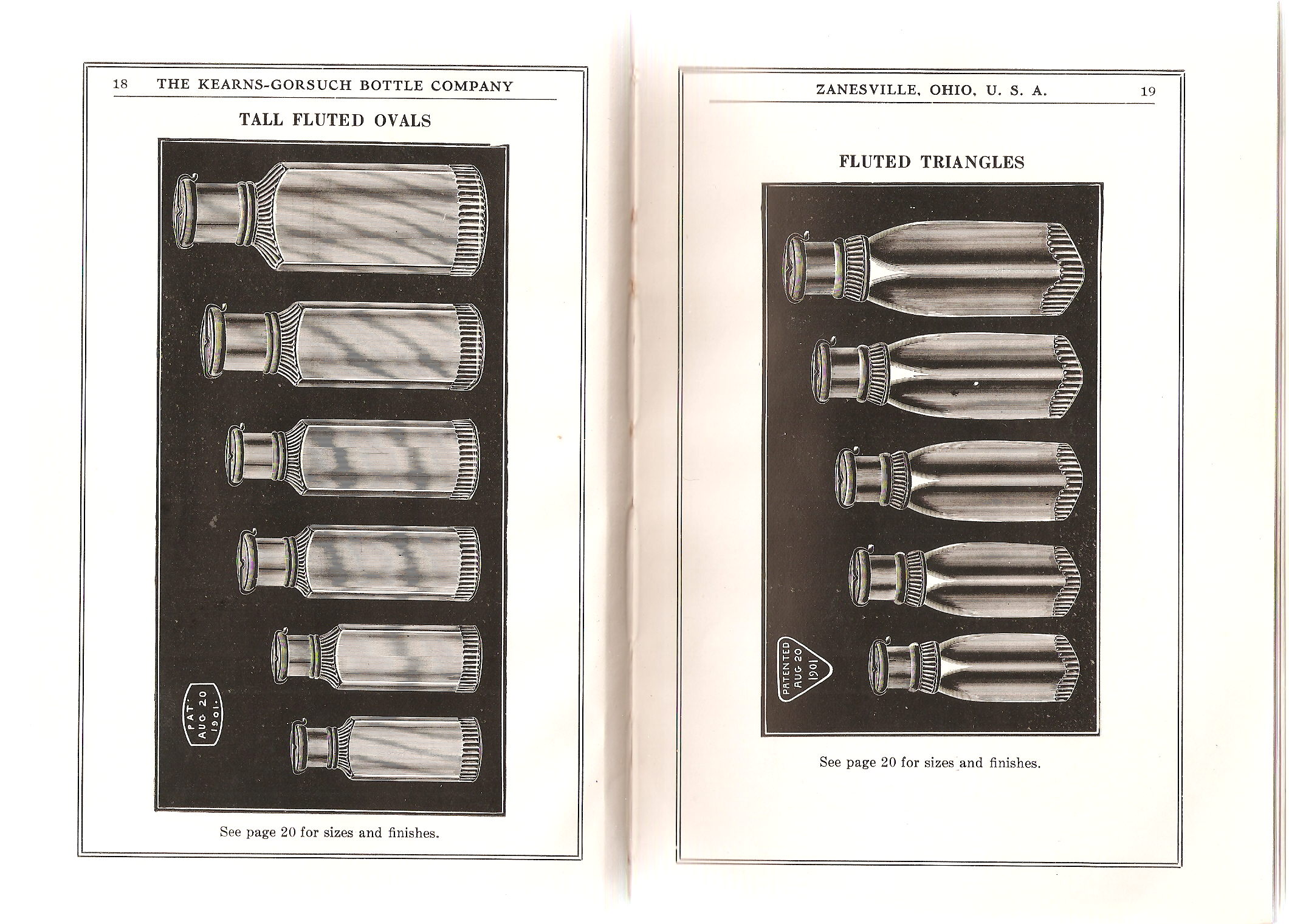

Pages 18-19: Tall Fluted Ovals / Fluted Triangles

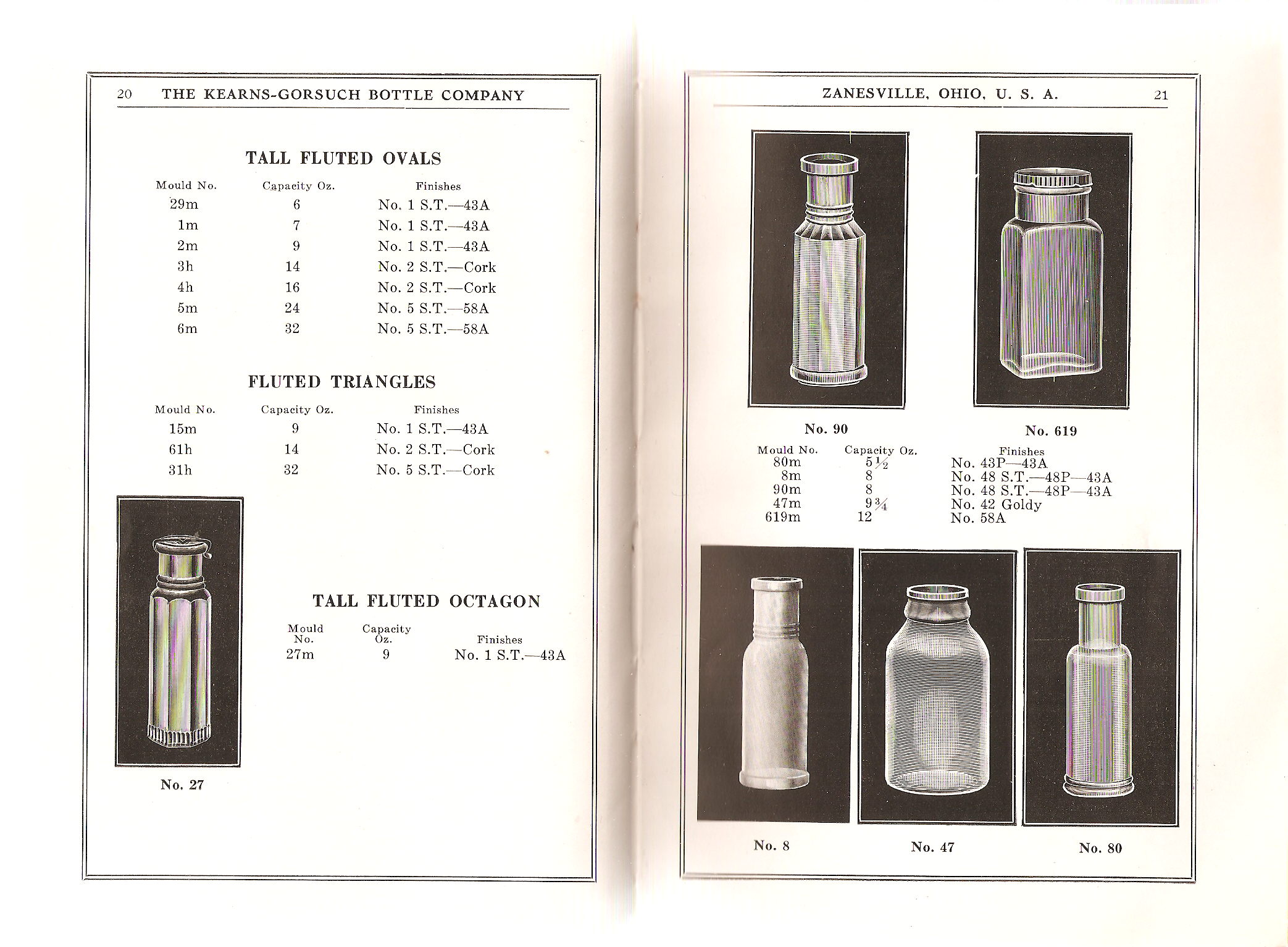

Pages 20-21: Tall Fluted Ovals, Triangles, Octagon / Illustrations of these pickles

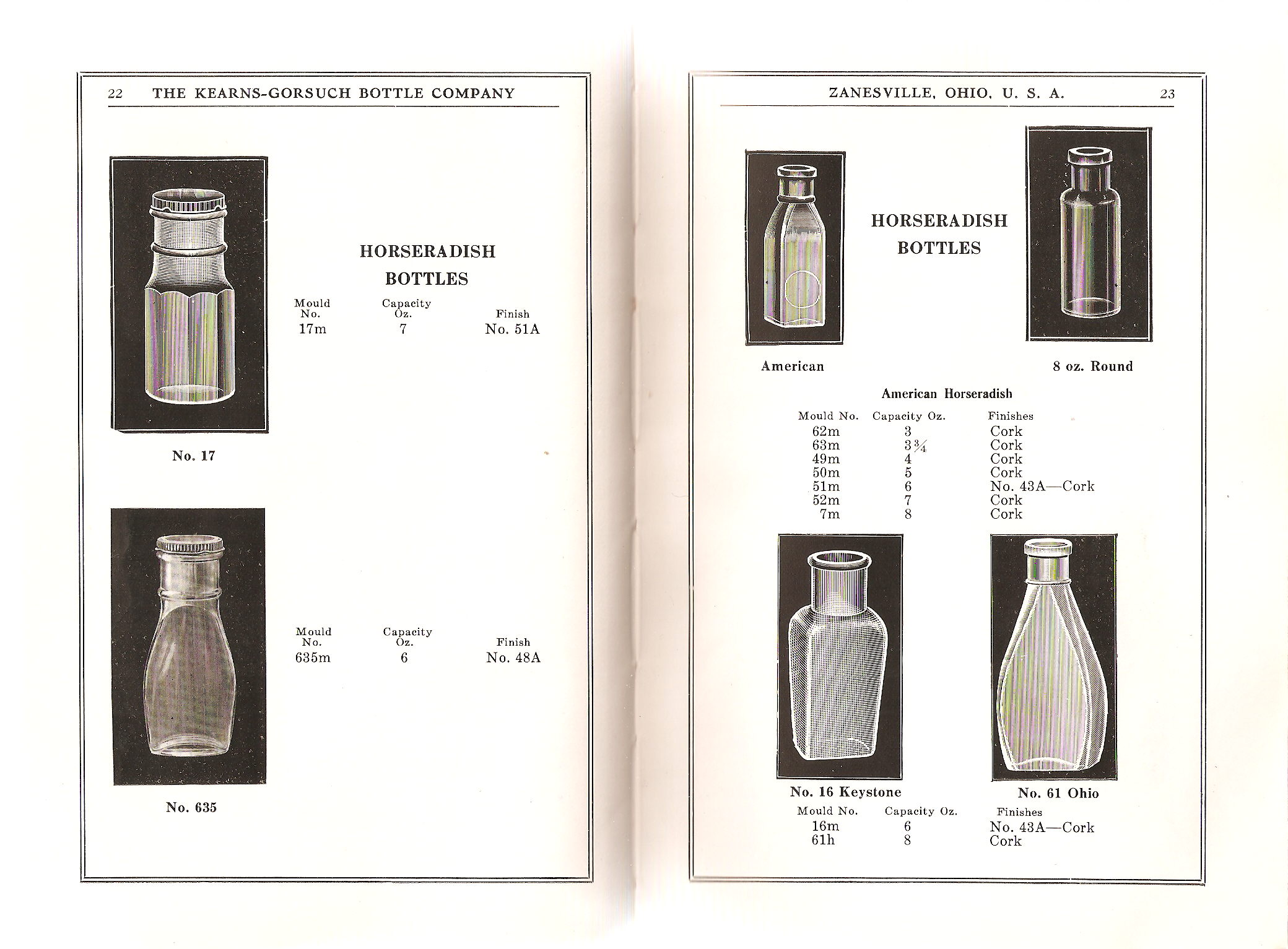

Pages 22-23: Horseradish Bottles (both pages)

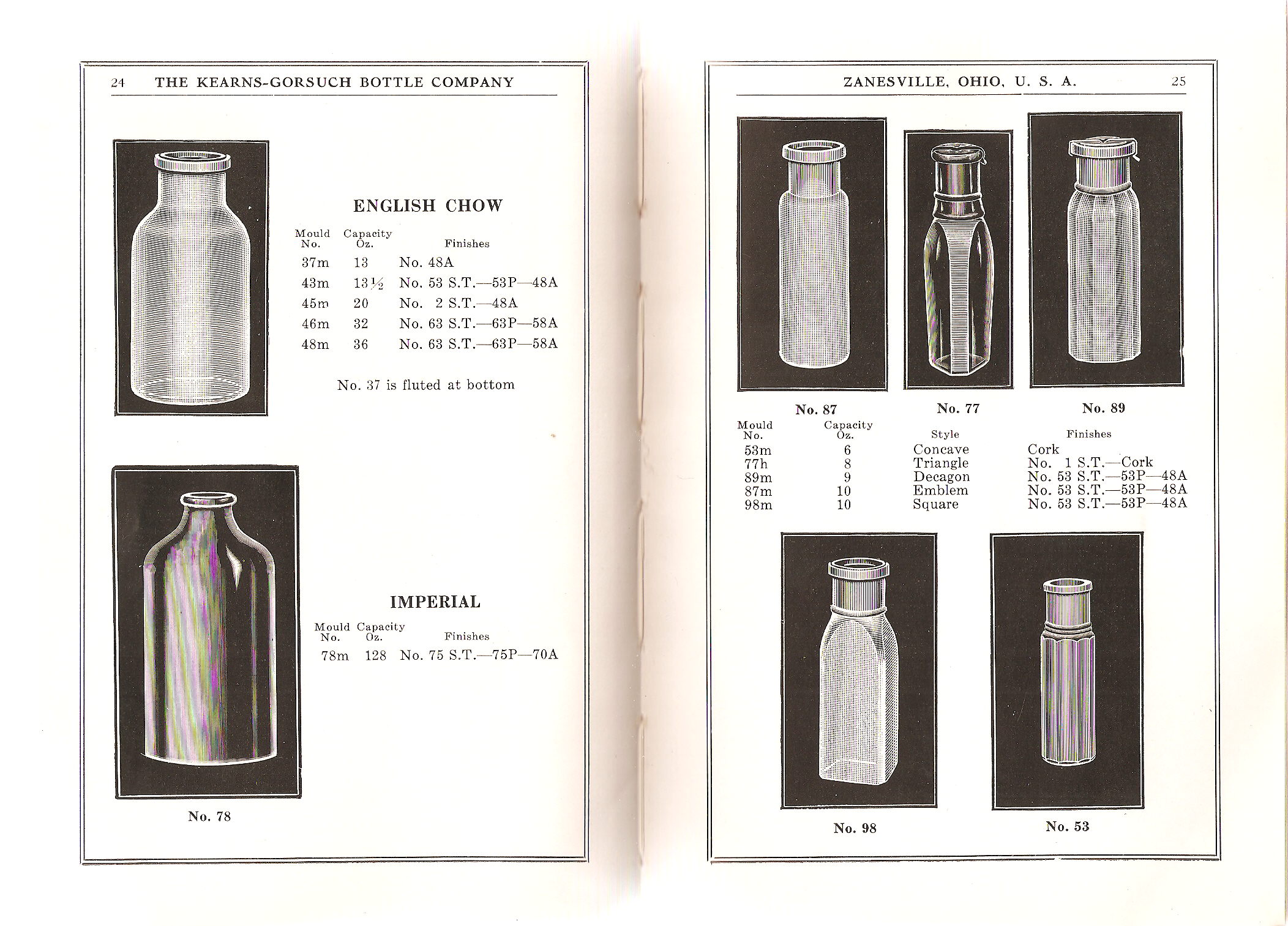

Pages 24-25: English Chow, Imperial / Illustrations of other styles

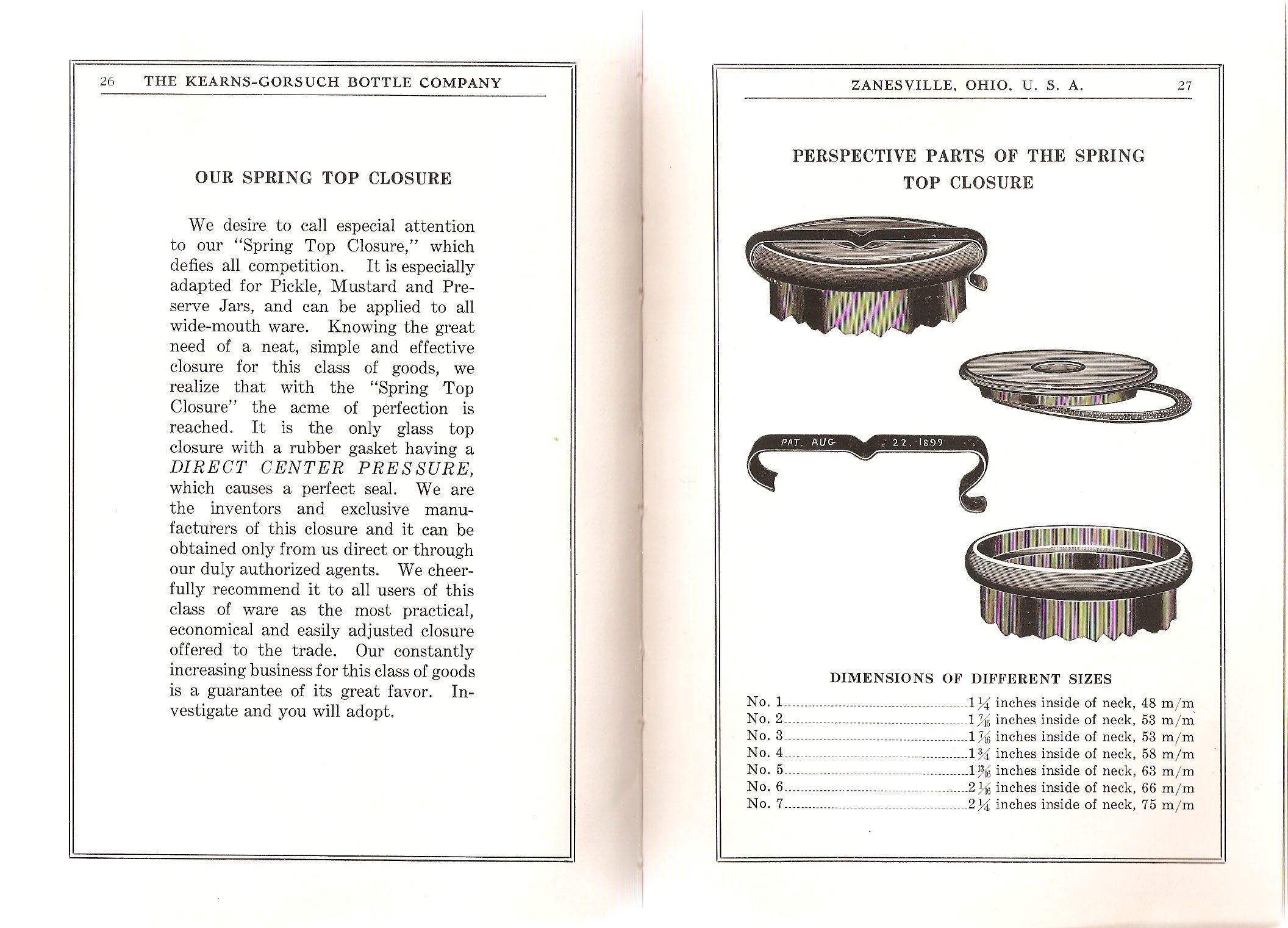

Pages 26-27: Our Spring Top Closure / Illustration

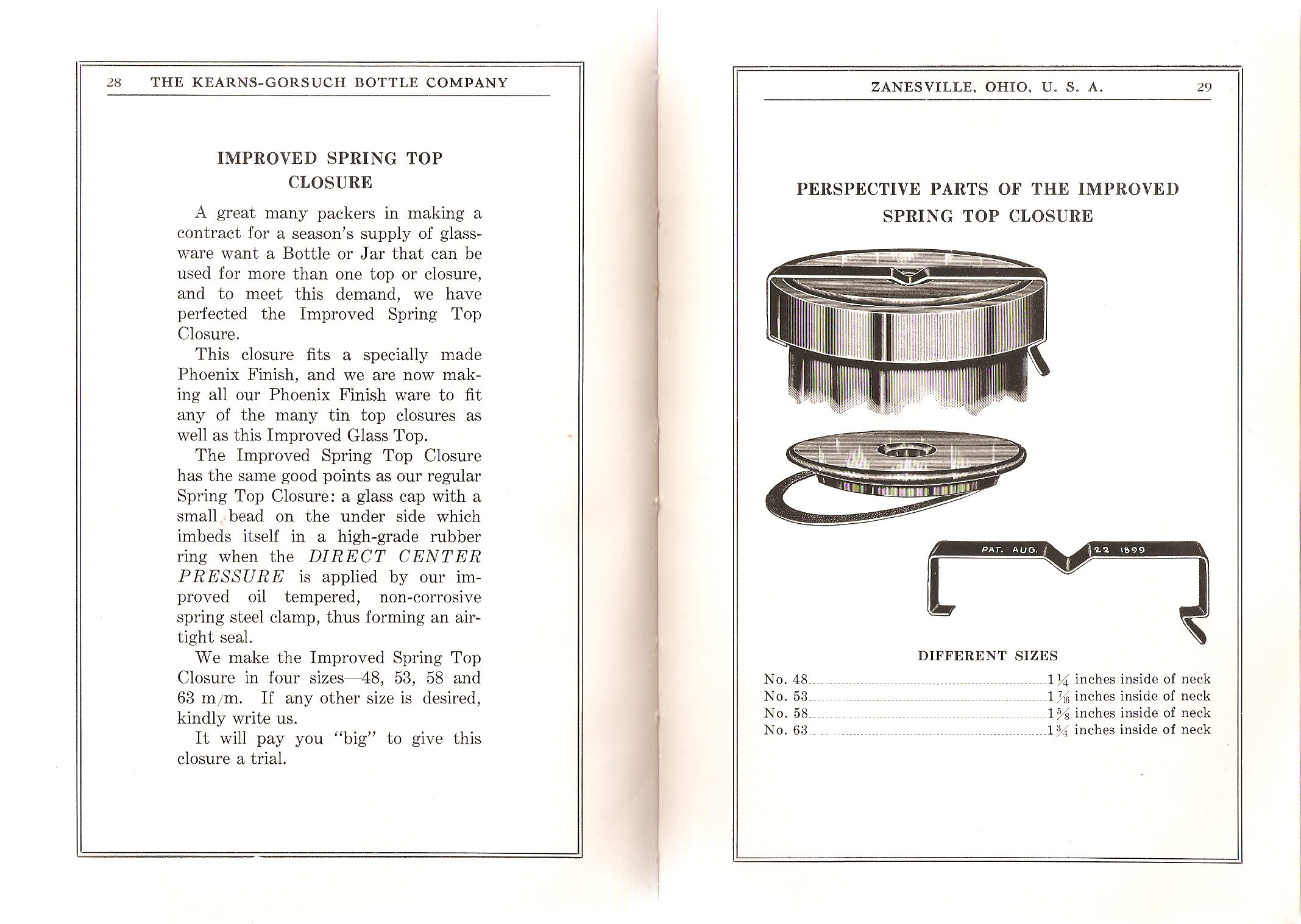

Pages 28-29: Improved Spring Top Closure / Illustration

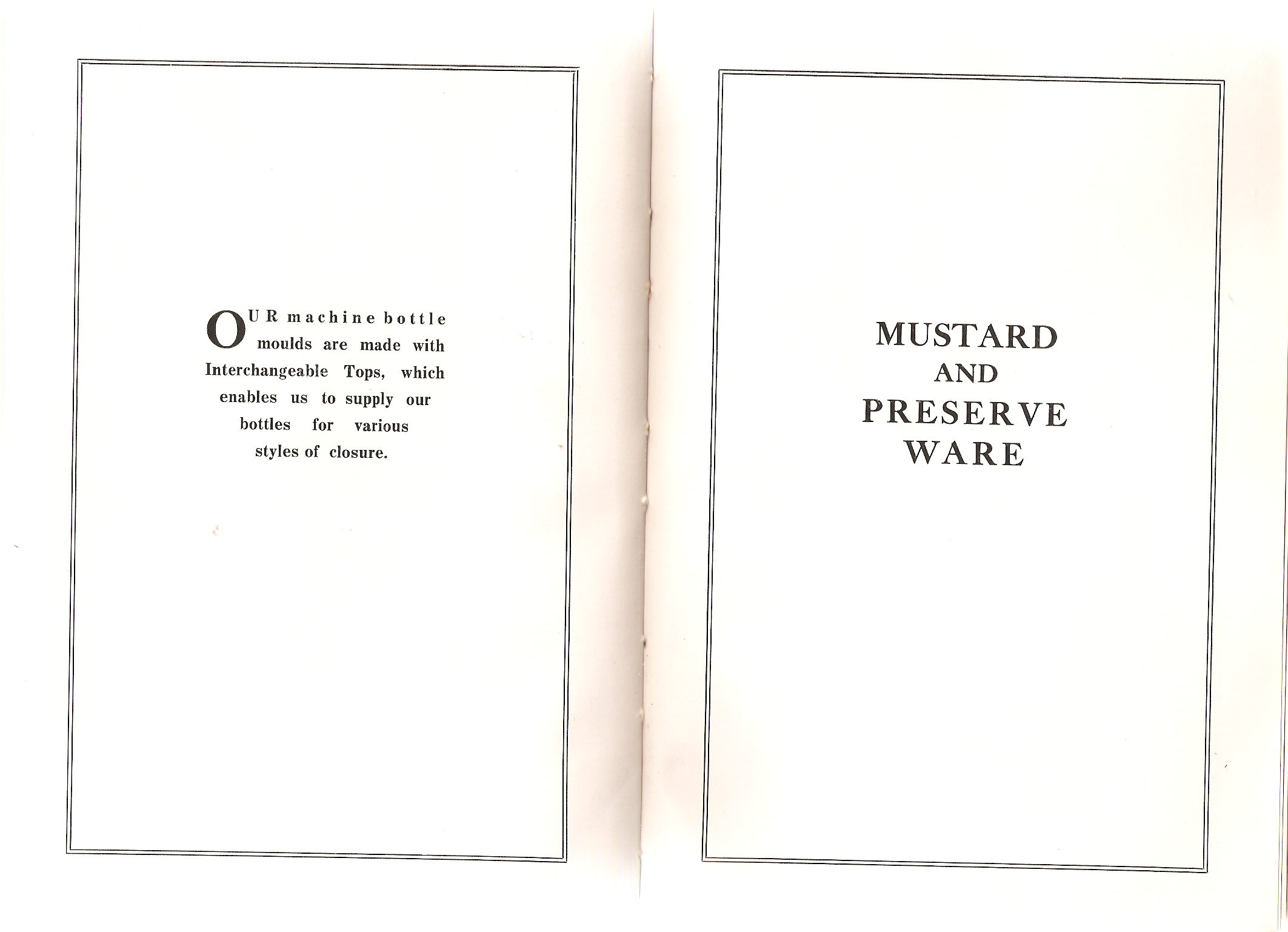

Pages 30-31: Mustard and Preserve Ware introduction

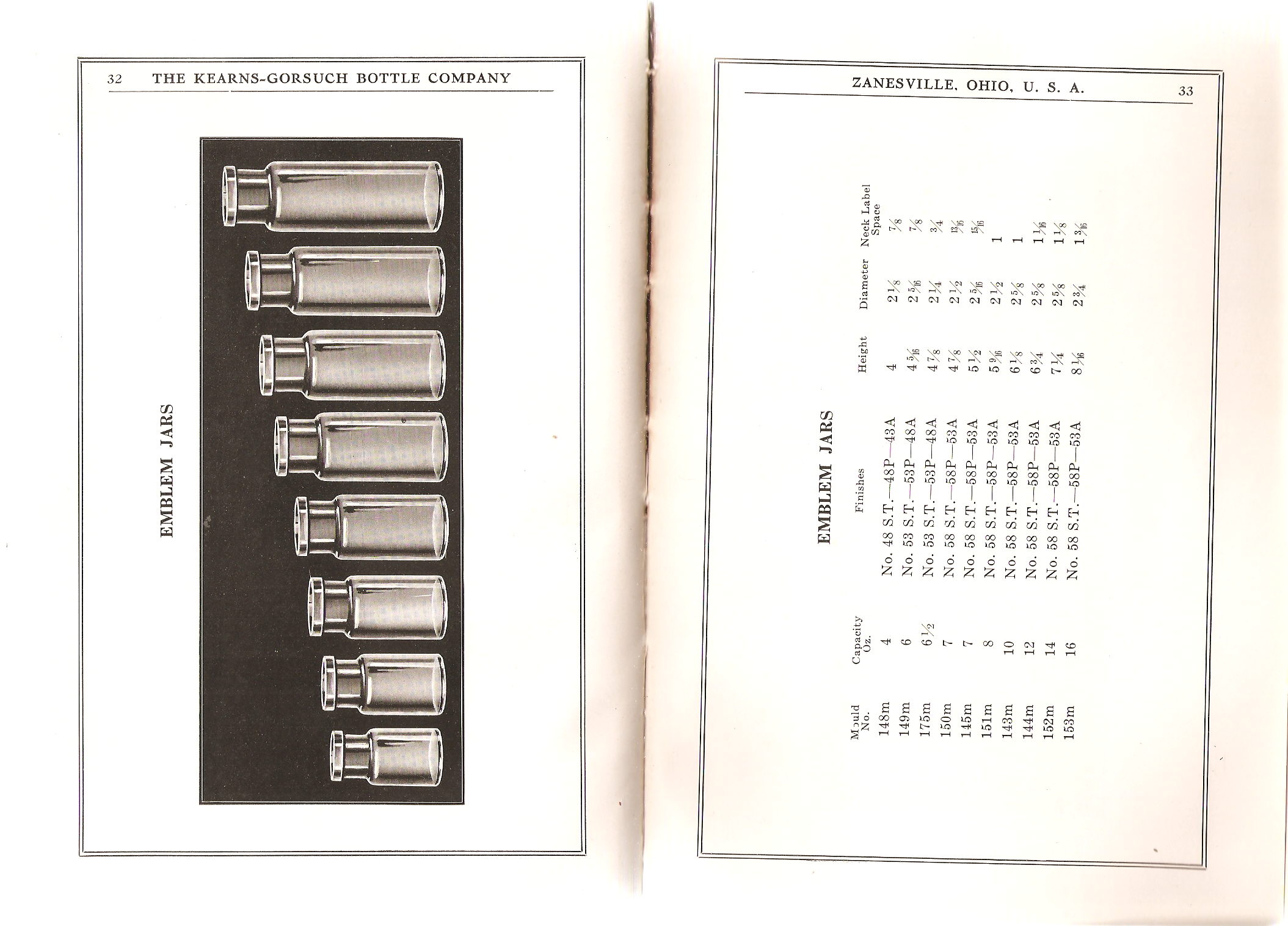

Pages 32-33: Emblem Jars illustration / sizes & detail information

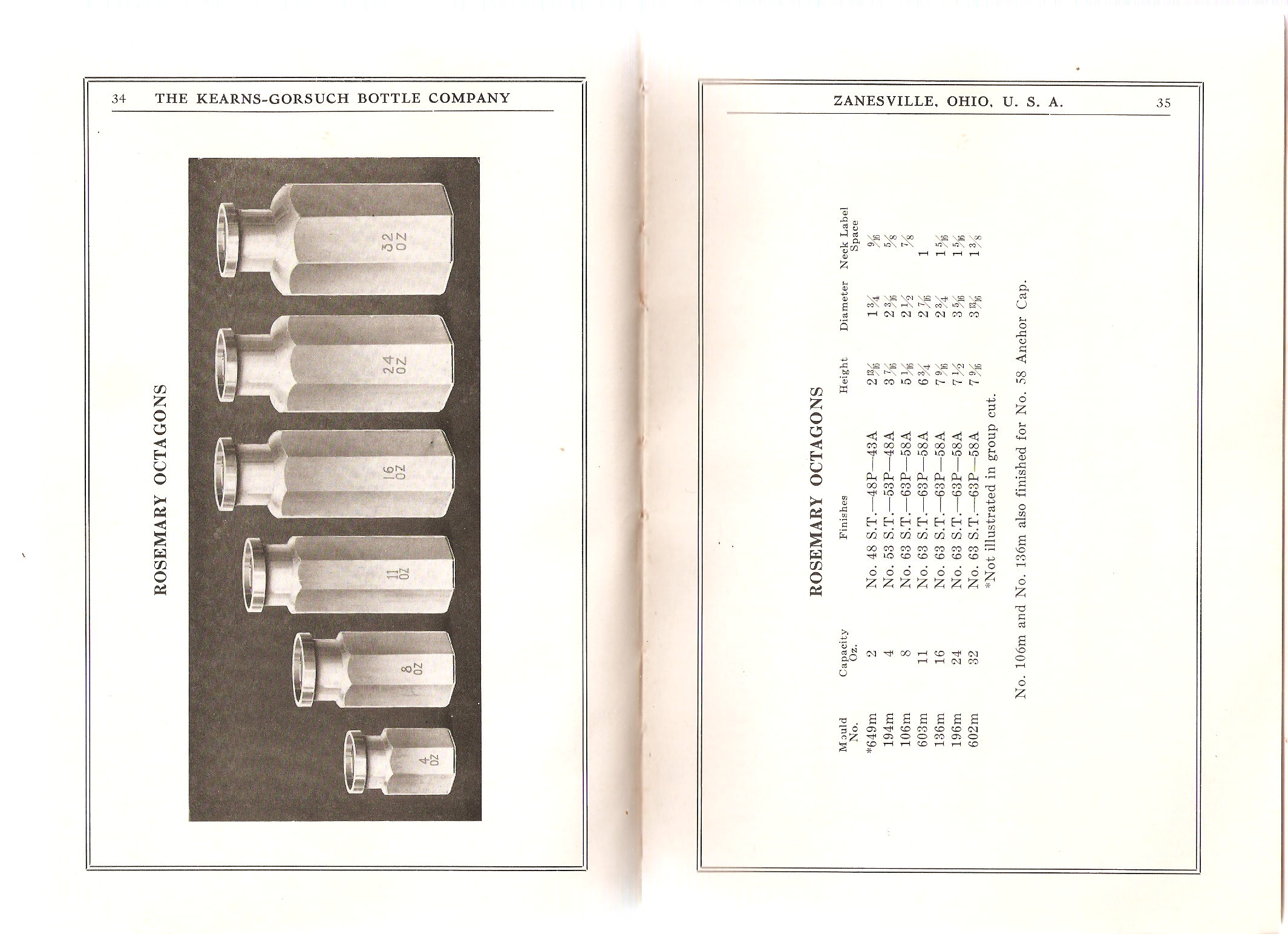

Pages 34-35: Rosemary Octagons / sizes & detail information

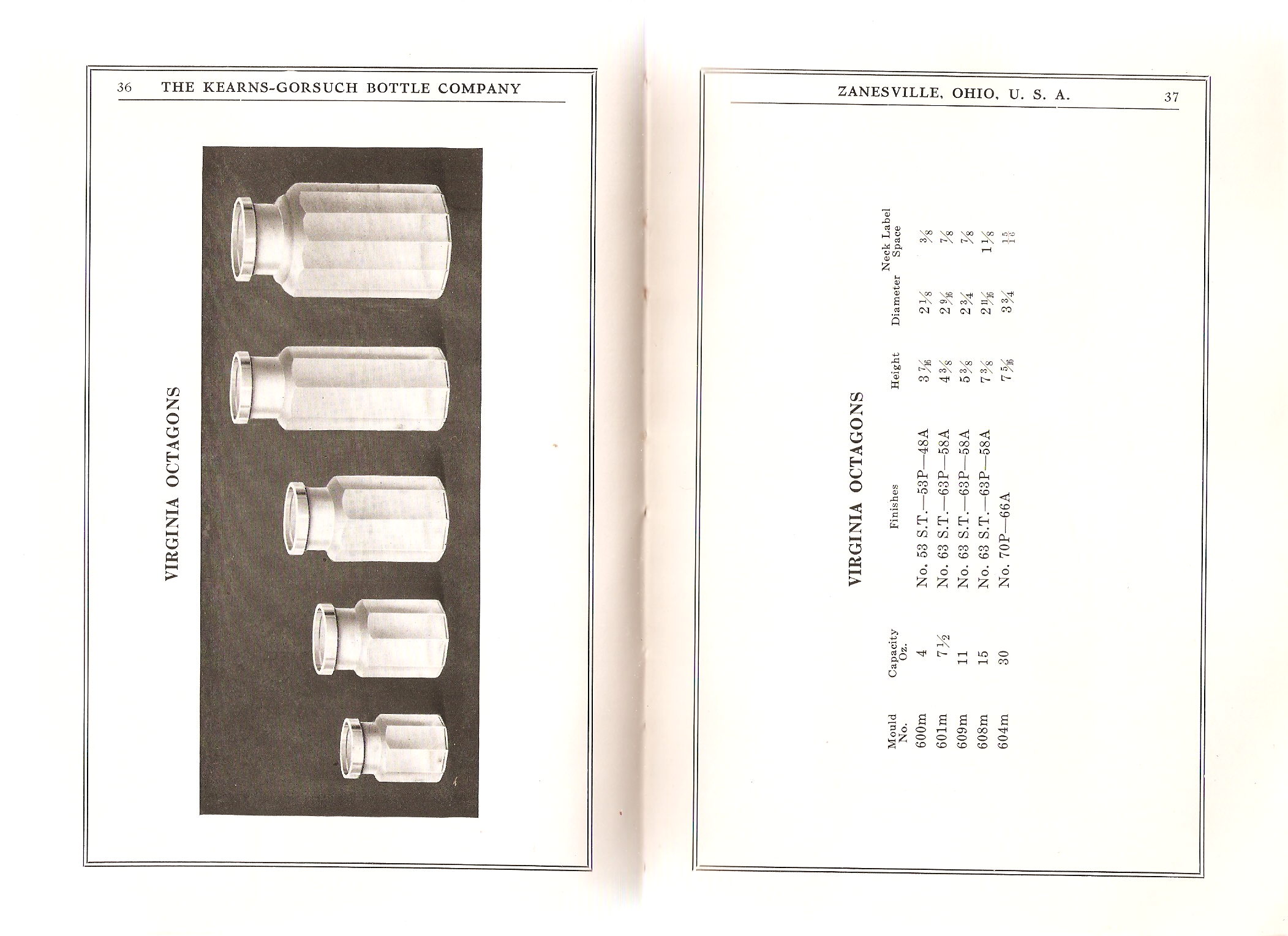

Pages 36-37: Virginia Octagons / sizes & detail information

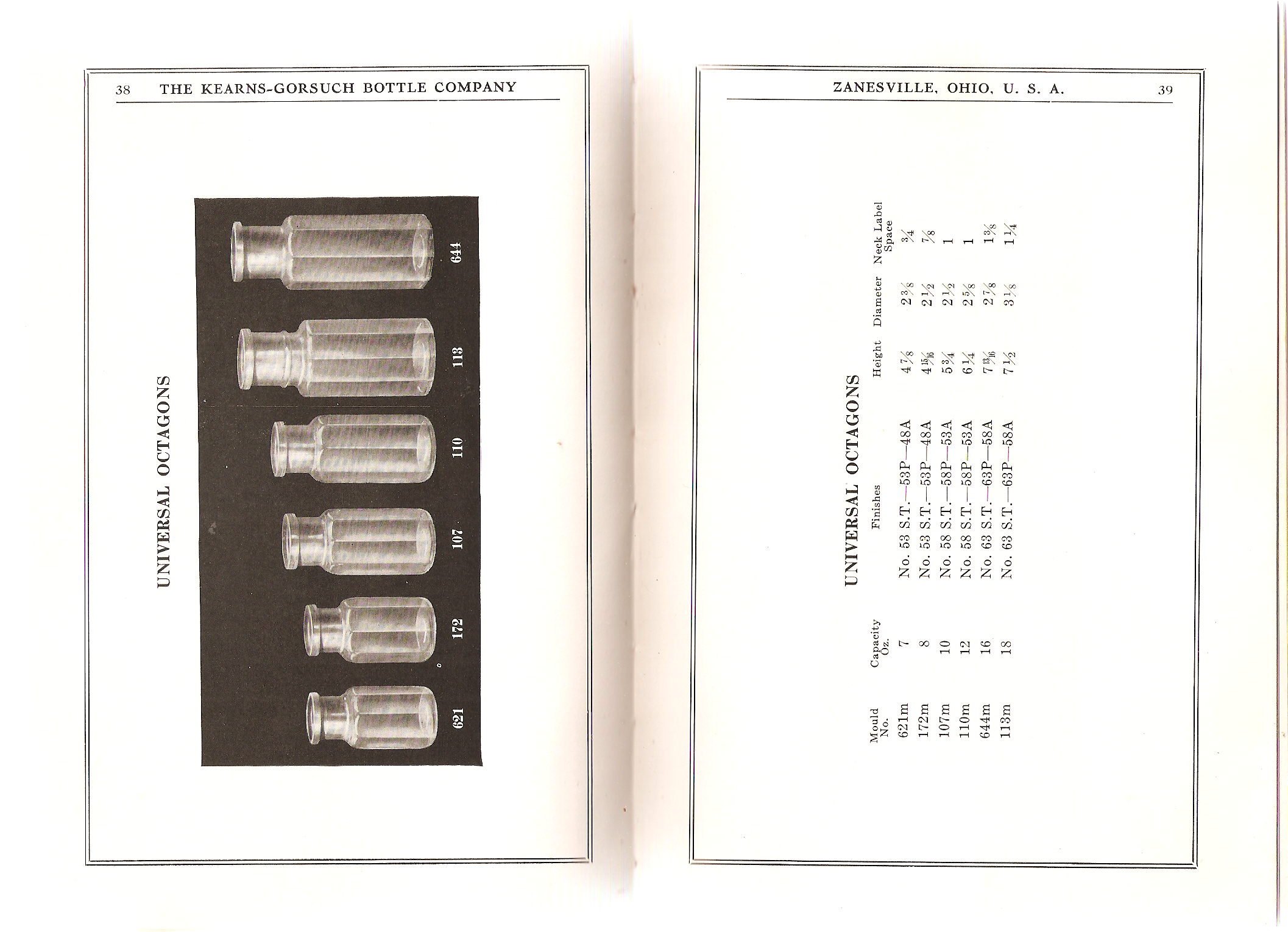

Pages 38-39: Universal Octagons / sizes & detail information

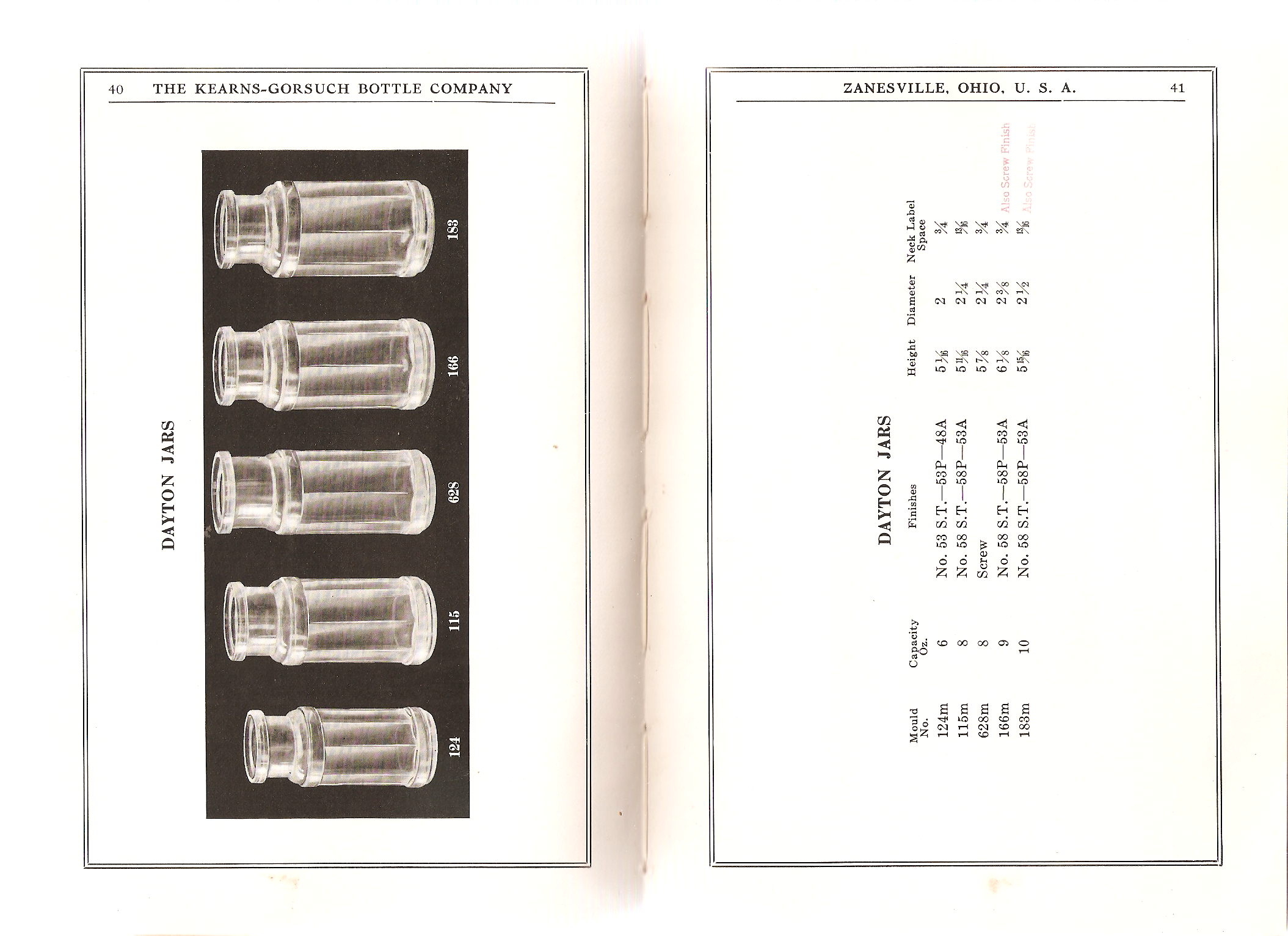

Pages 40-41: Dayton Jars / sizes & detail information

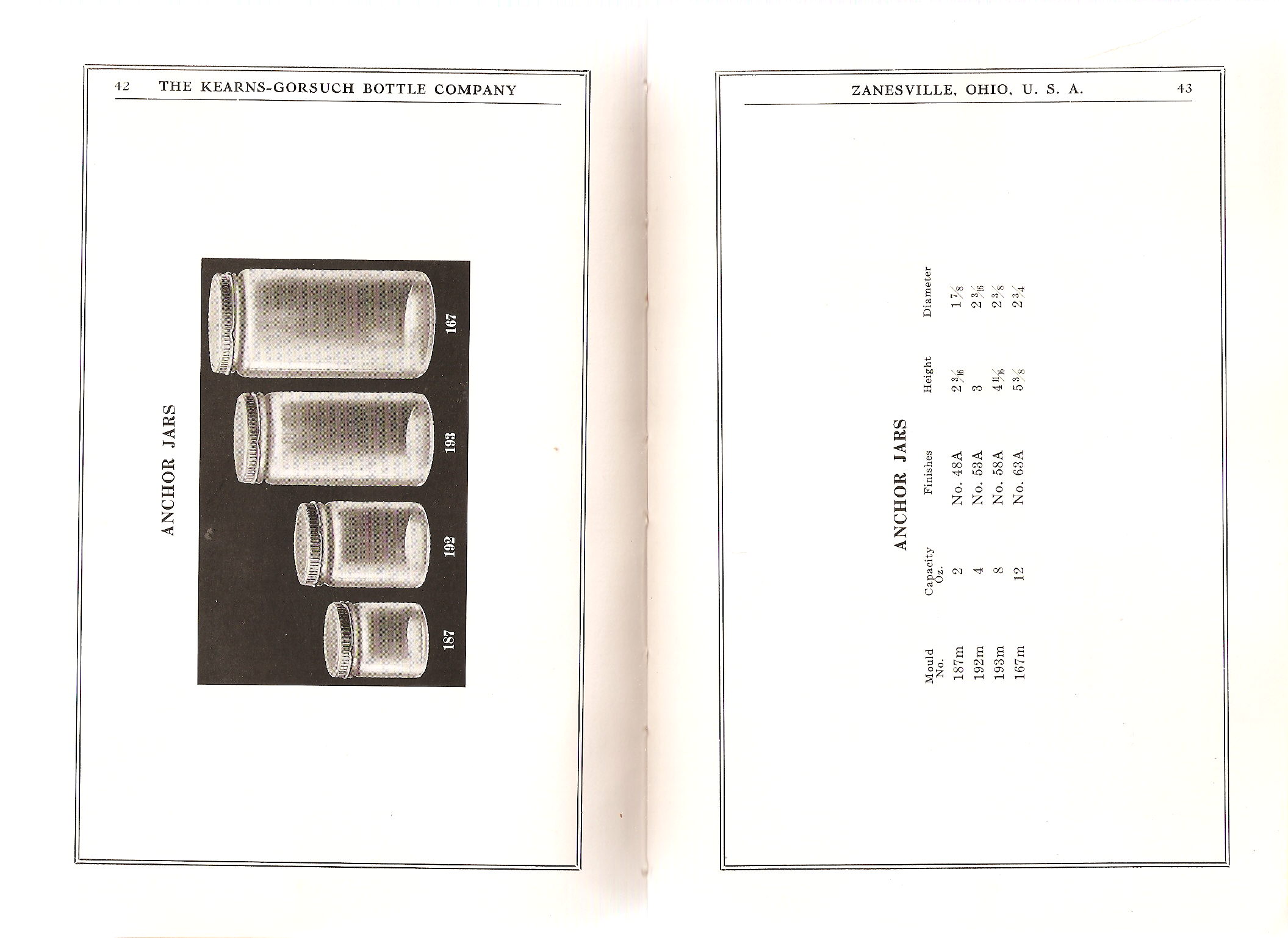

Pages 42-43: Anchor Jars / sizes & detail information

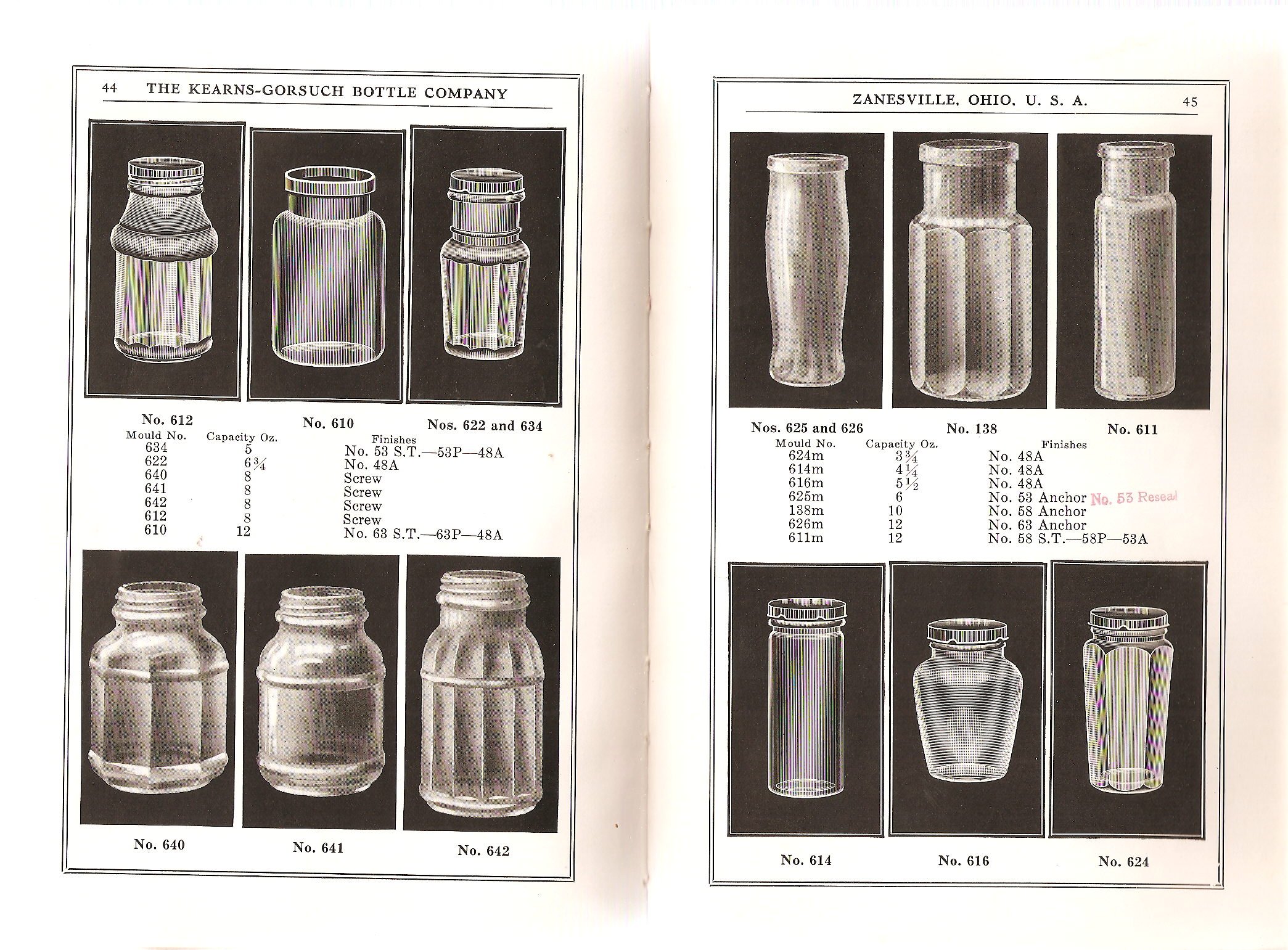

Pages 44-45: Various mustard & preserve bottles (both pages)

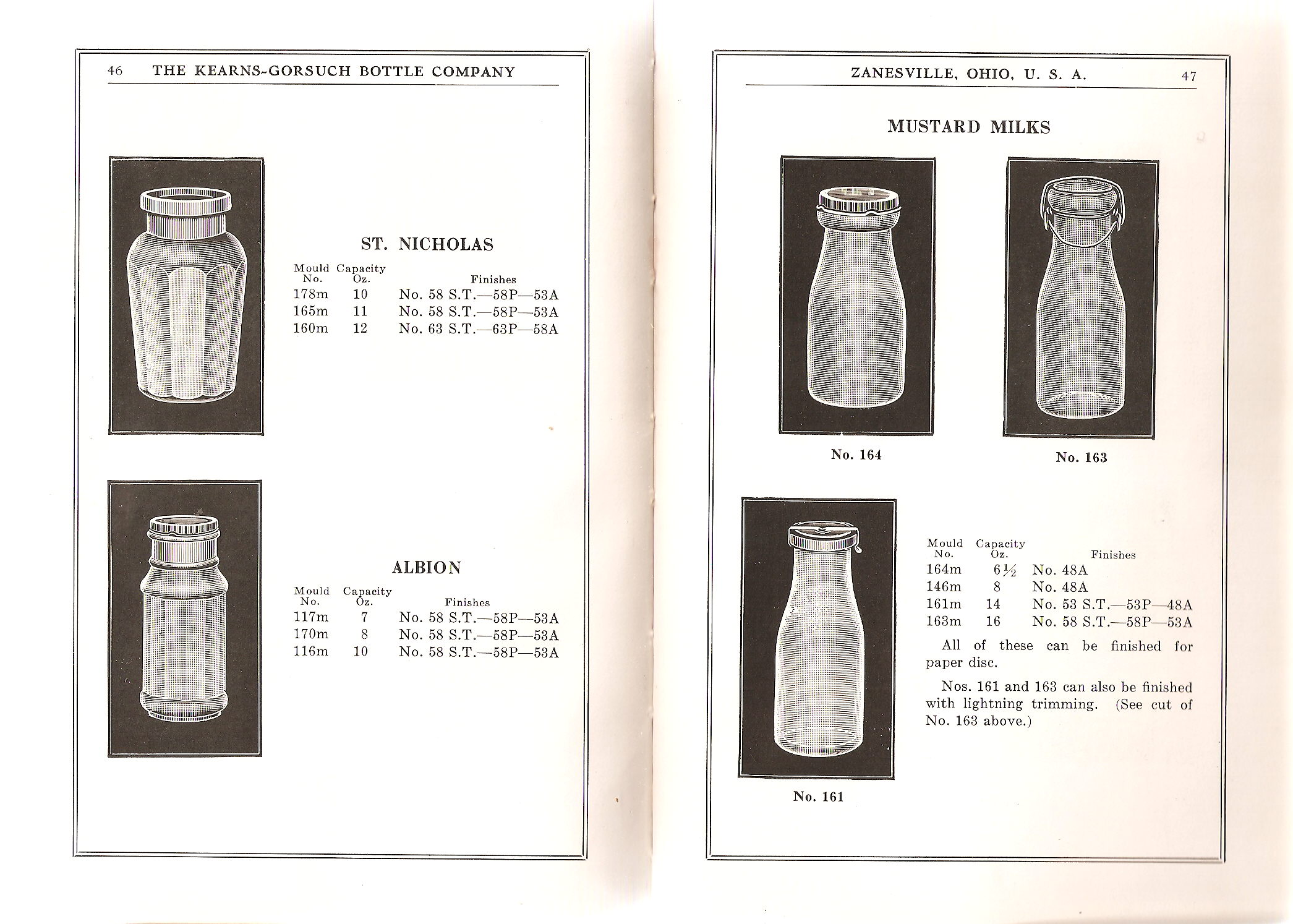

Pages 46-47: St. Nicholas & Albion / Mustard Milks (mustard bottles shaped like milk bottles)

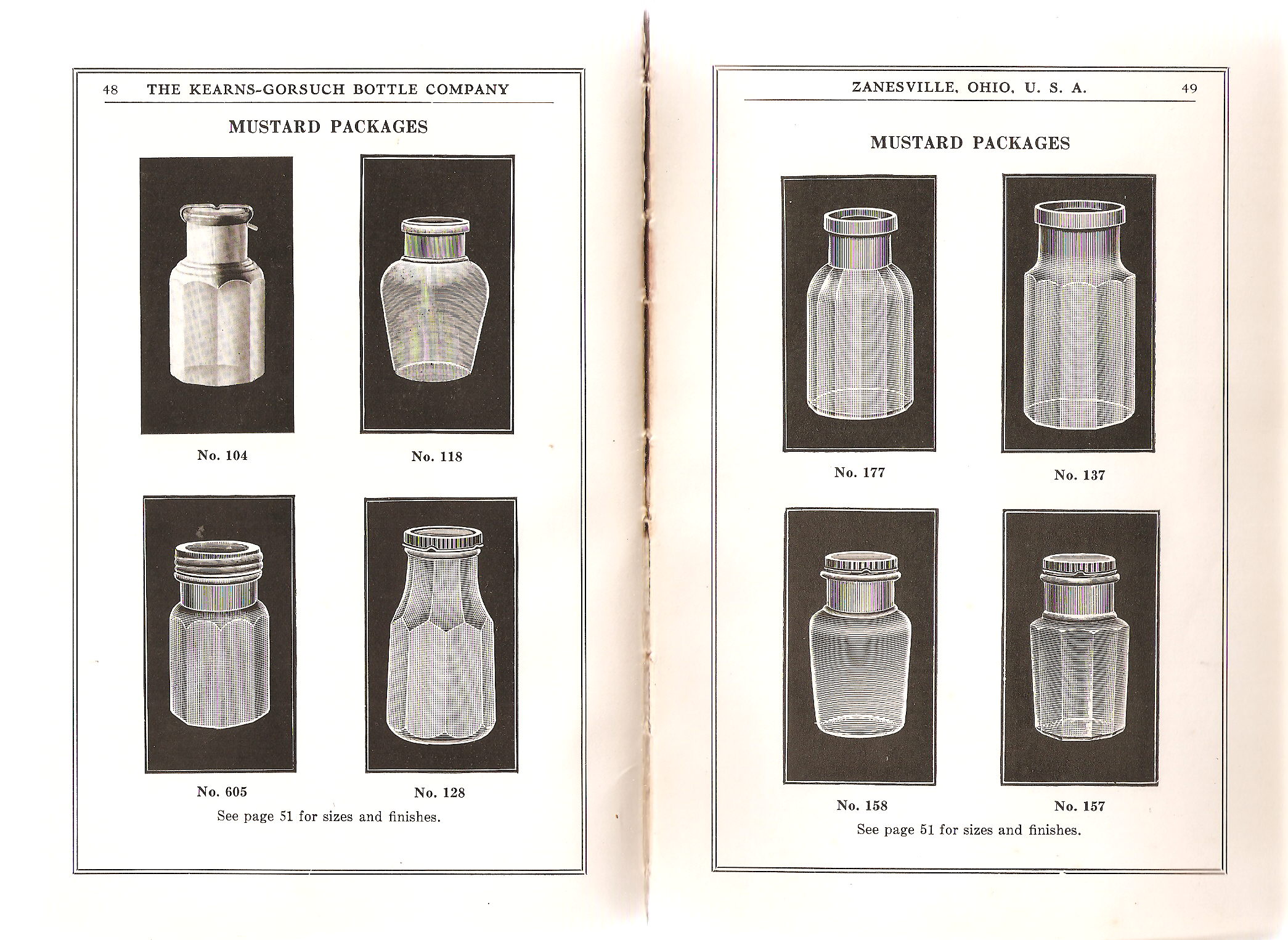

Pages 48-49: Mustard Packages (both pages)

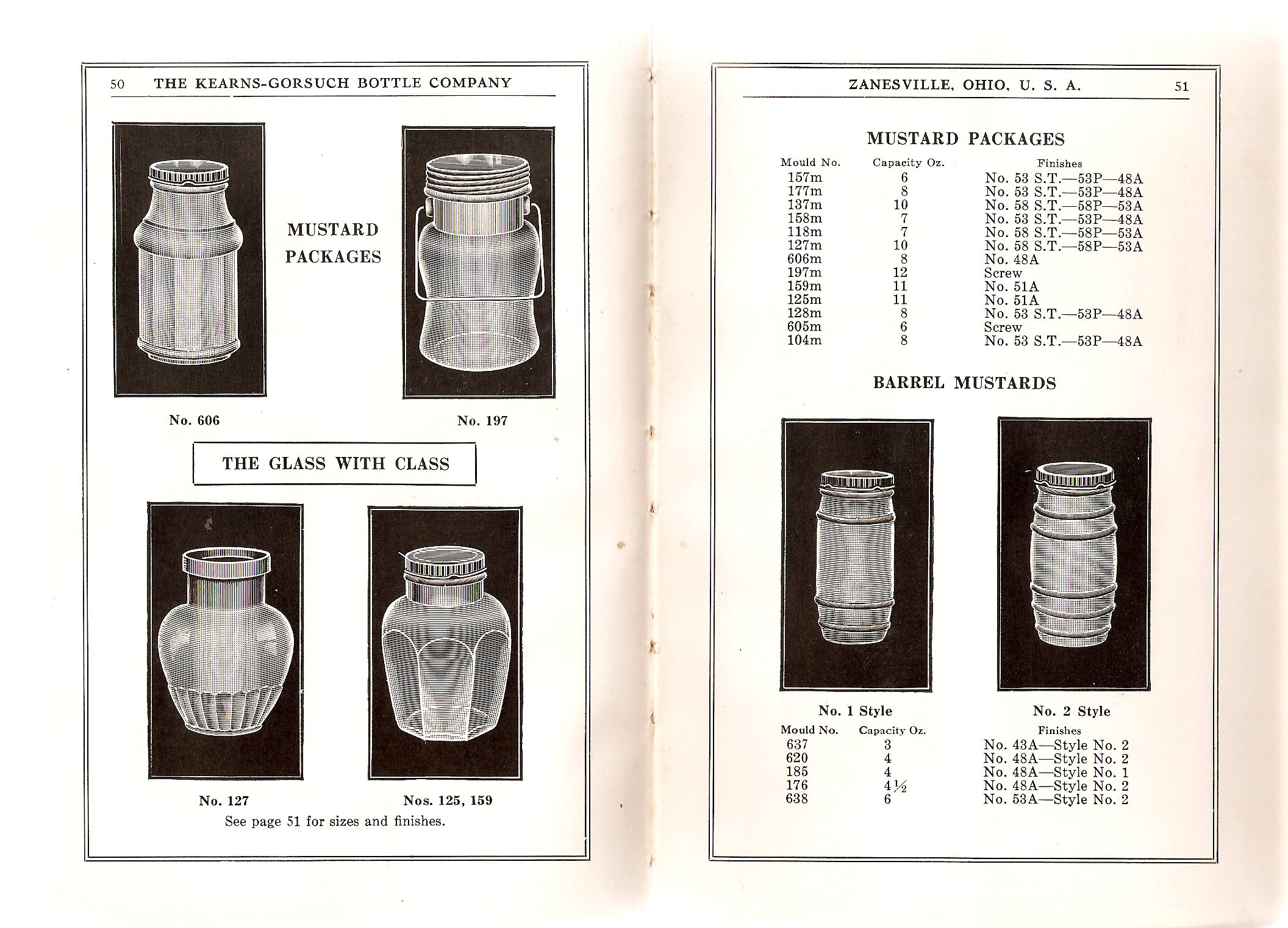

Pages 50-51: Mustard Packages / Mustard Pages & Barrel Mustards

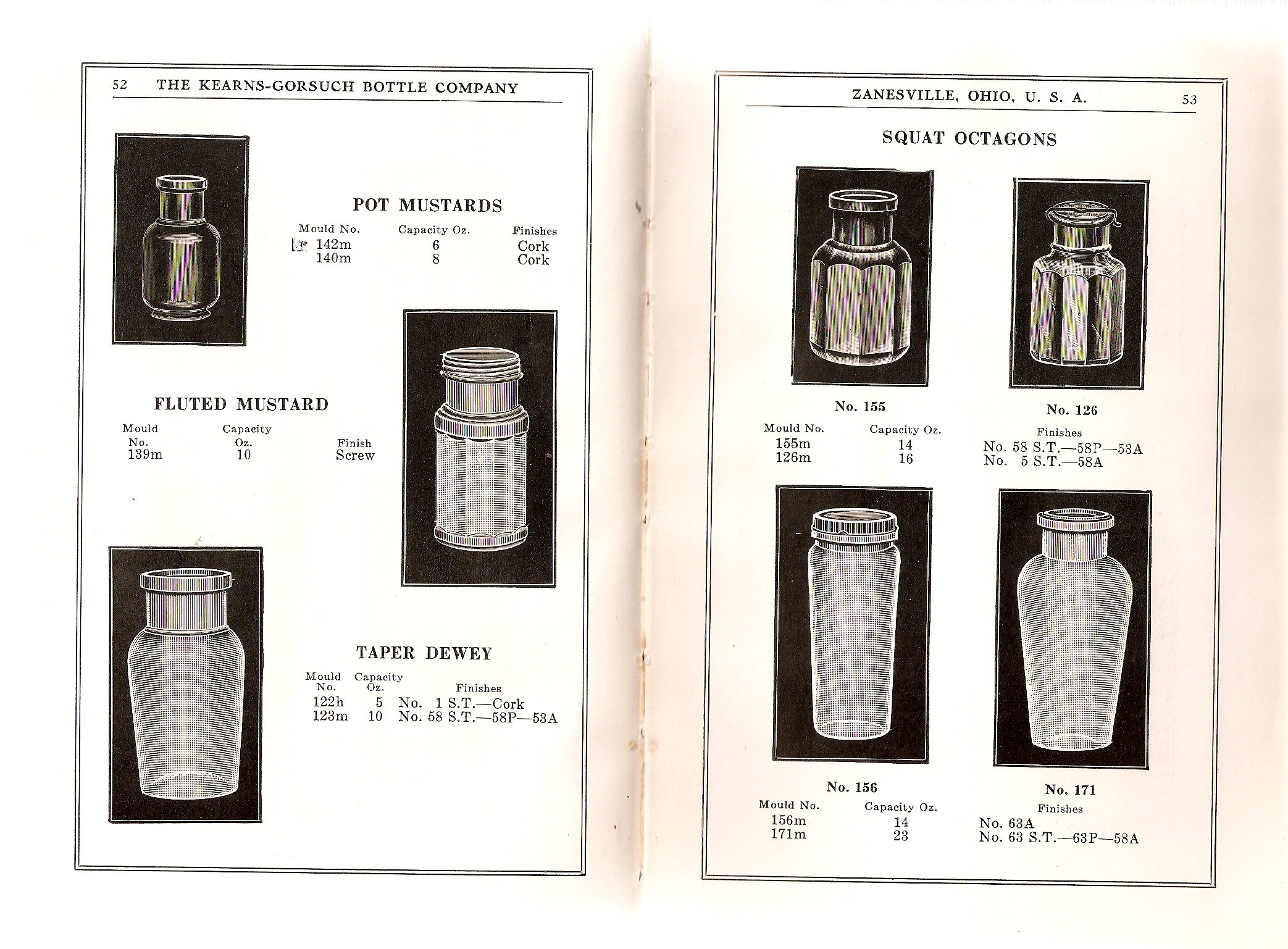

Pages 52-53: Pot & Fluted Mustards, Taper Dewey / Squat Octagons

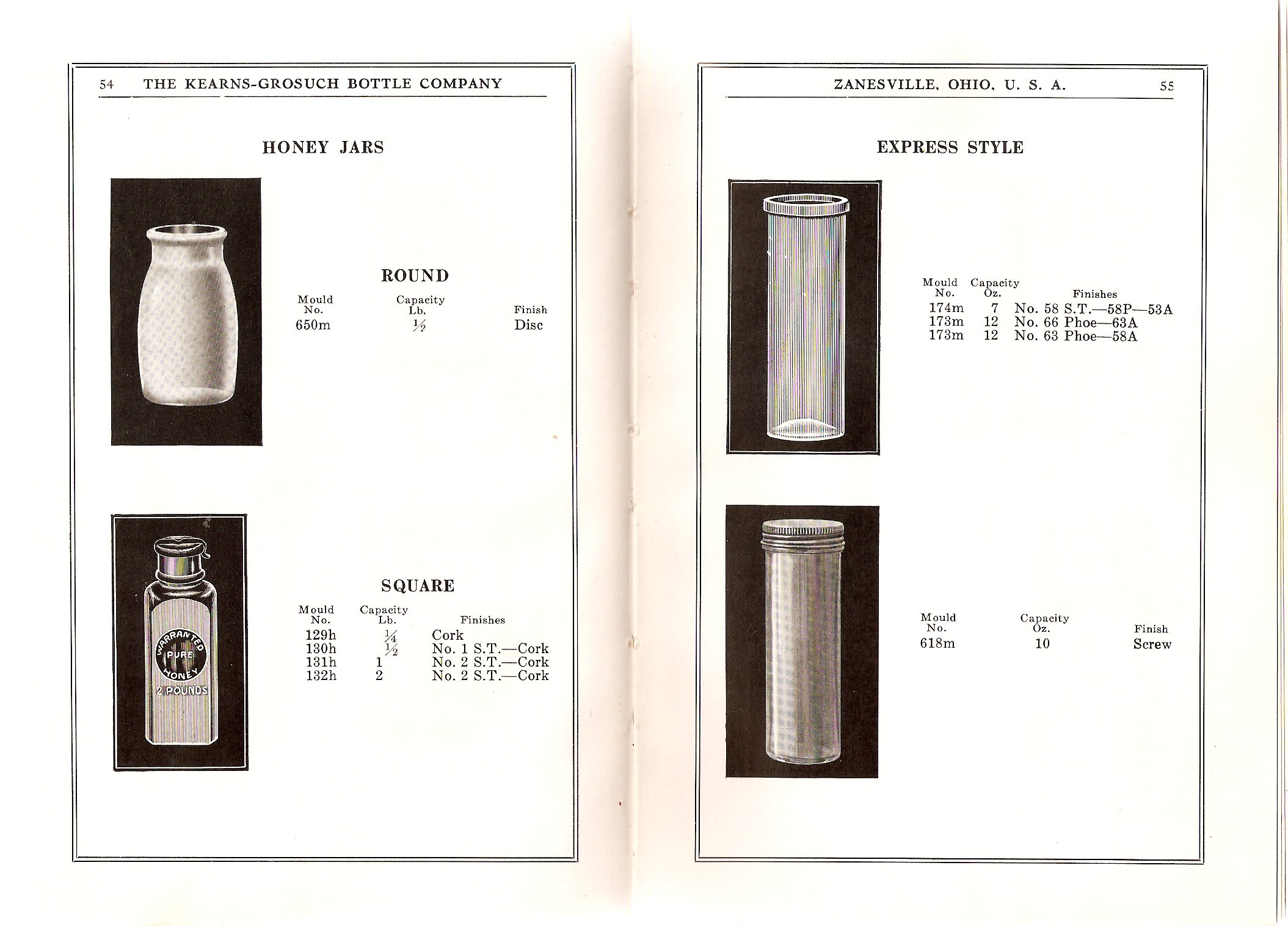

Pages 54-55: Honey Jars - Round & Square / Express Style

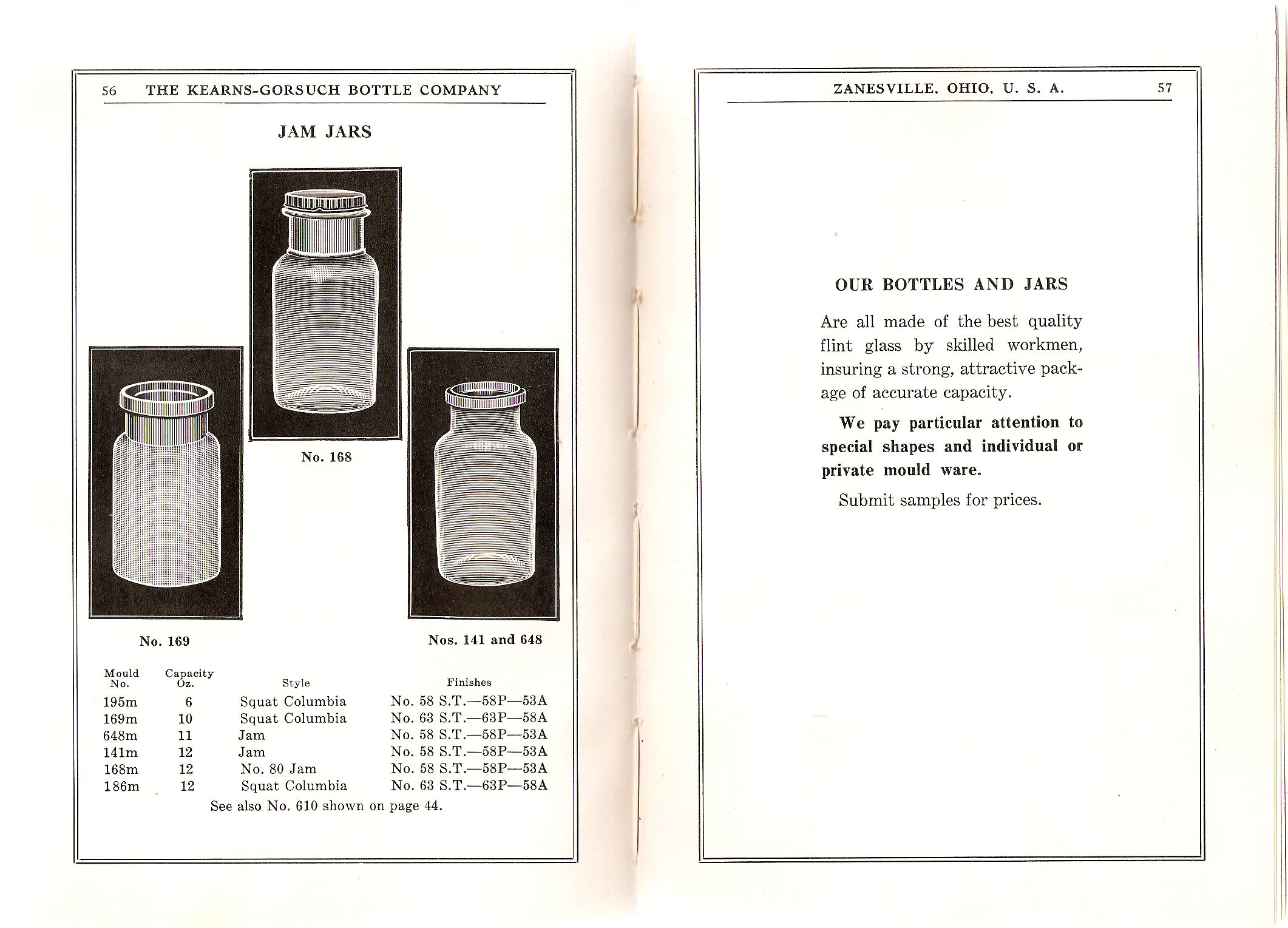

Pages 56-57: Jam Jars / Our Bottles and Jars

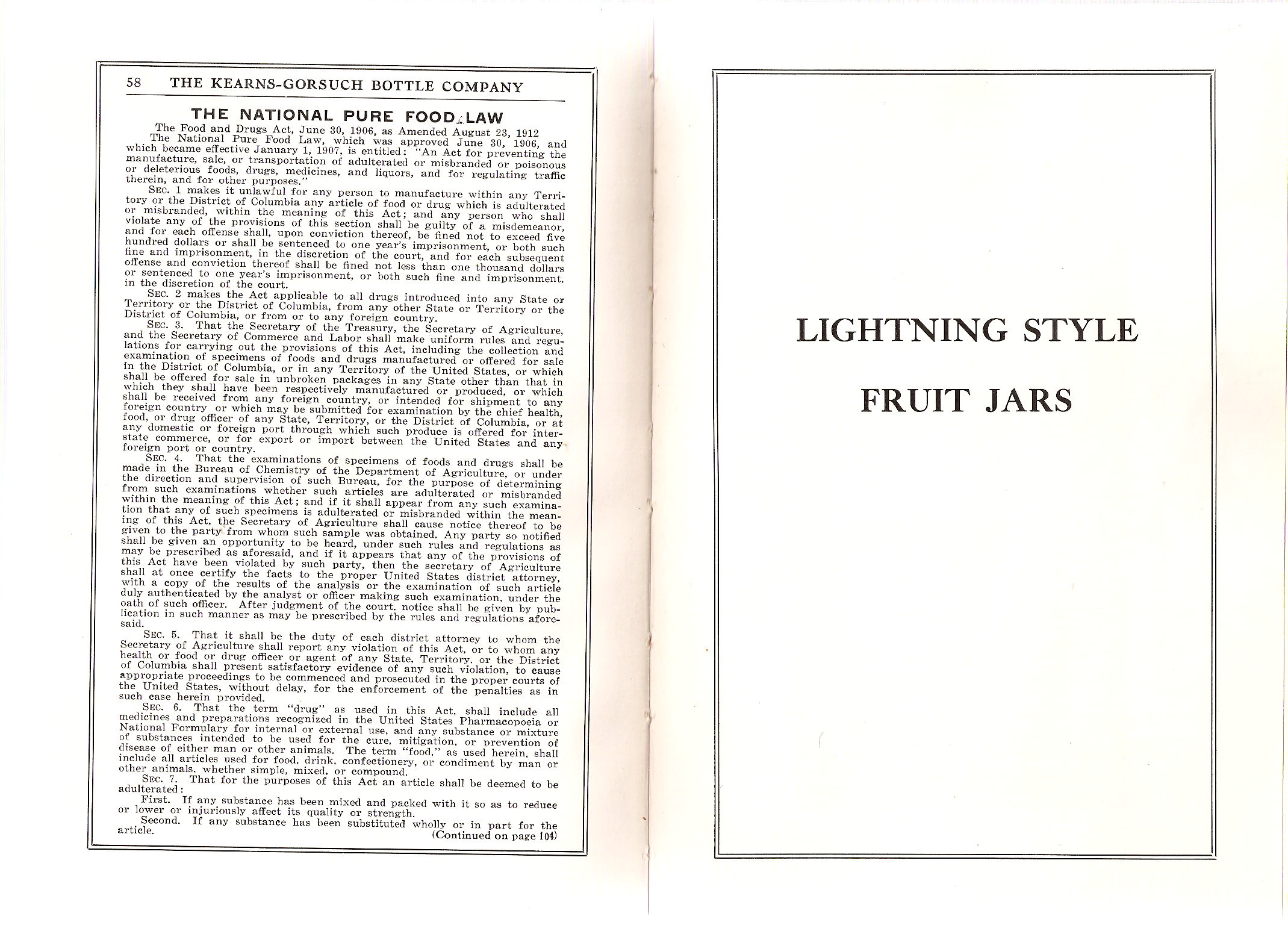

Pages 58-59: The National Pure Food Law (first page) / Lightning Style Fruit Jars introduction

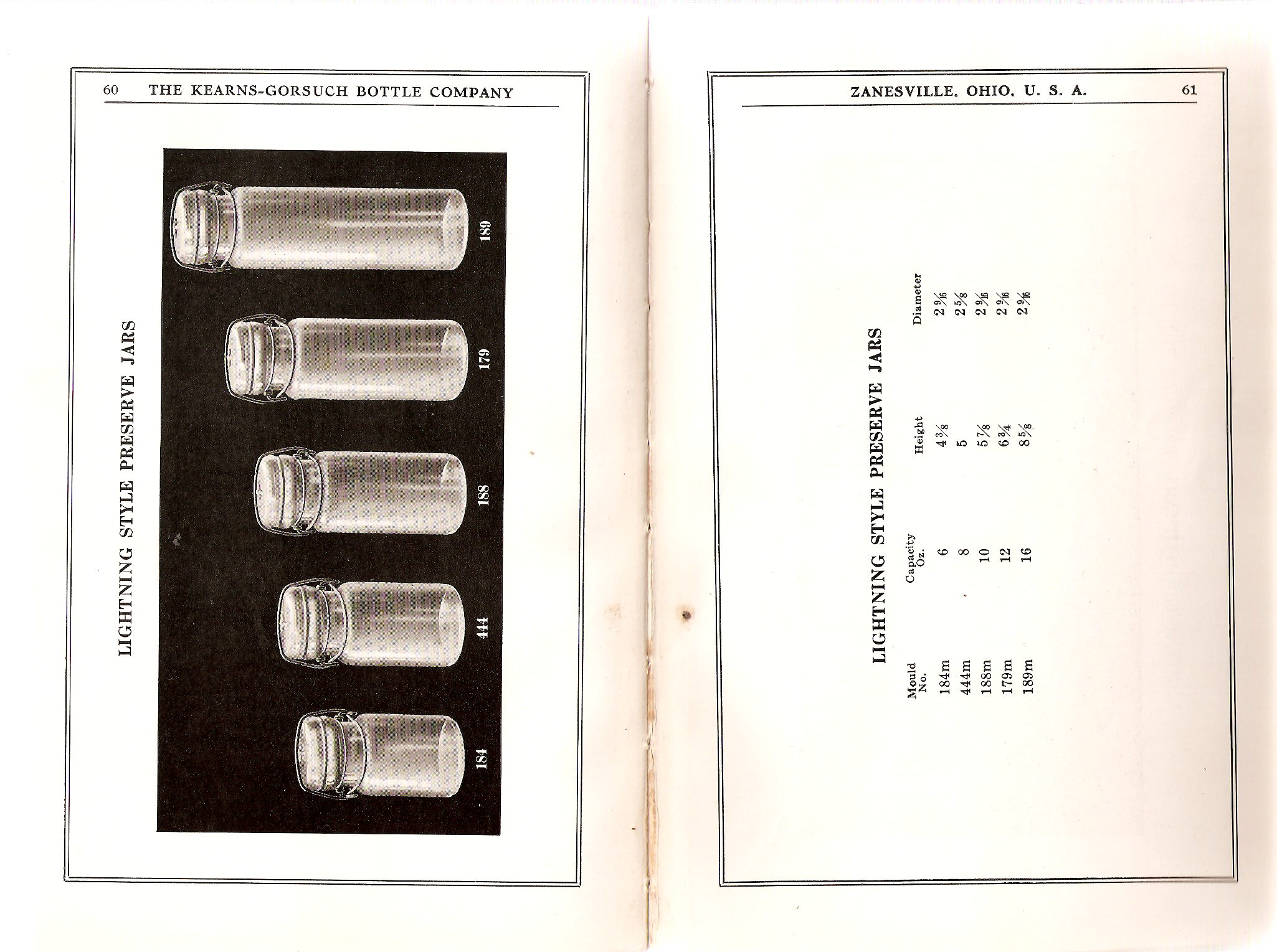

Pages 60-61: Lightning Style Preserve Jars / sizes & detail information

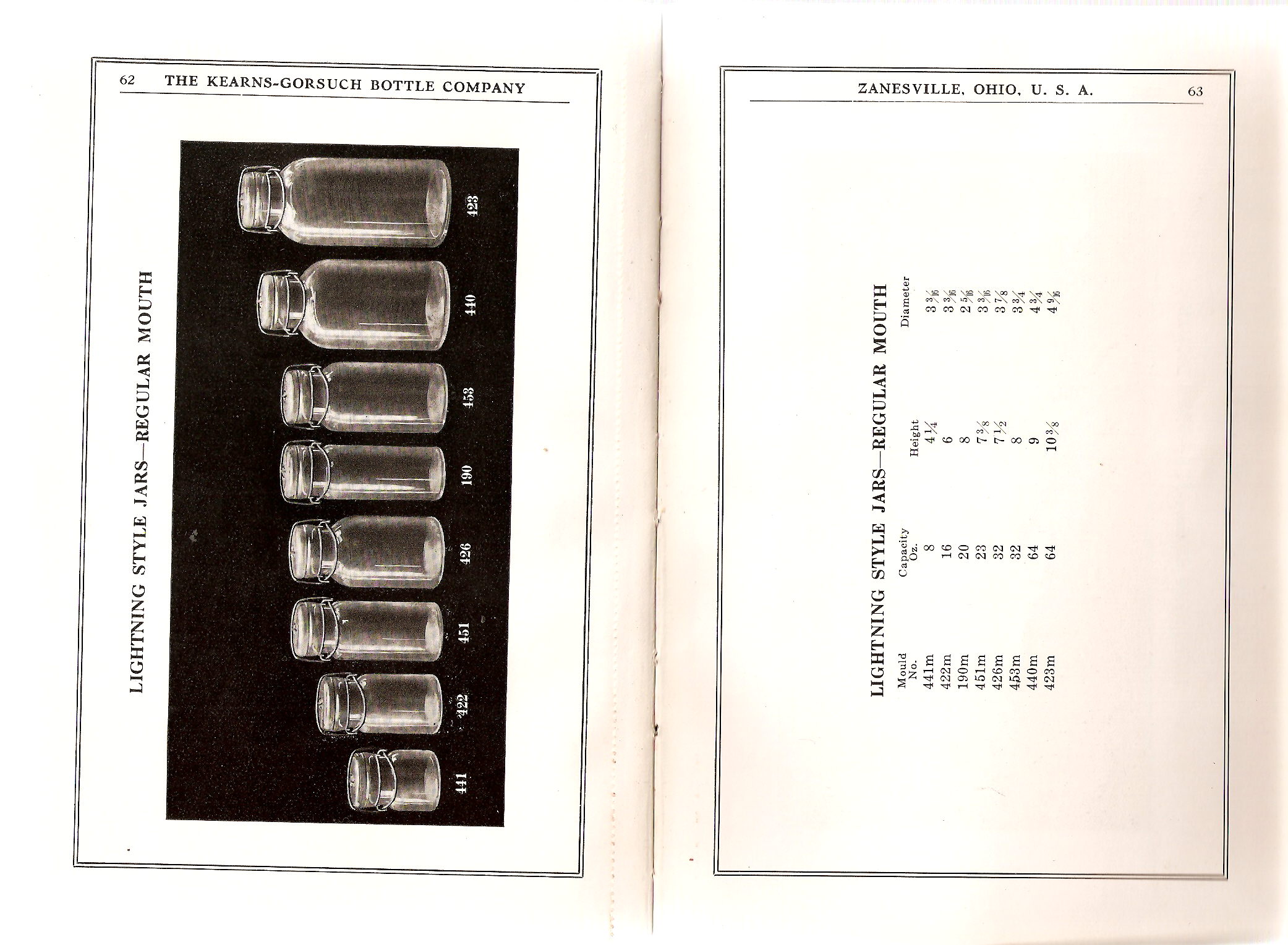

Pages 62-63: Lightning Style Jars - Regular Mouth / sizes & detail information

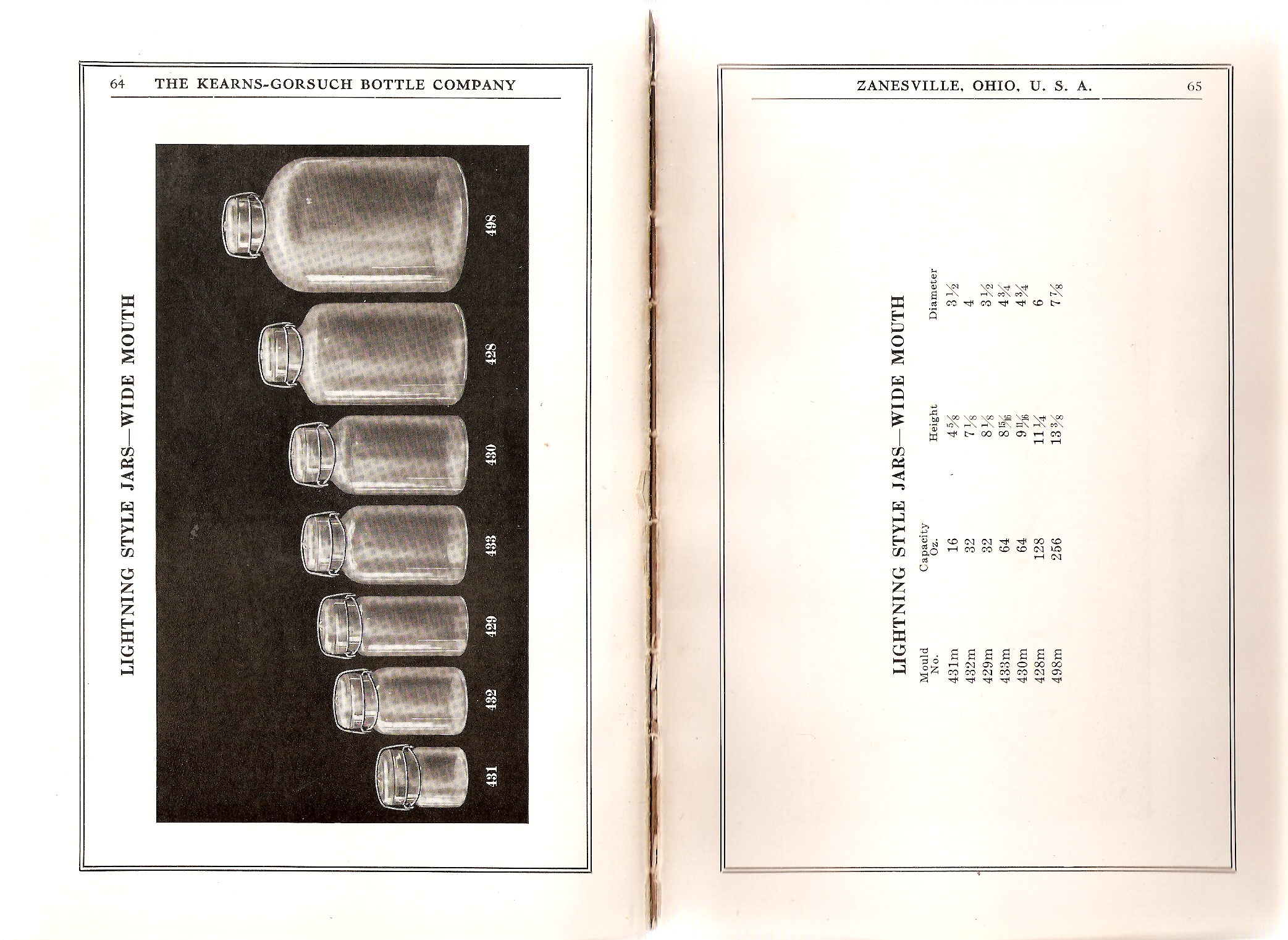

Pages 64-65: Lightning Style Jars - Wide Mouth / sizes & detail information

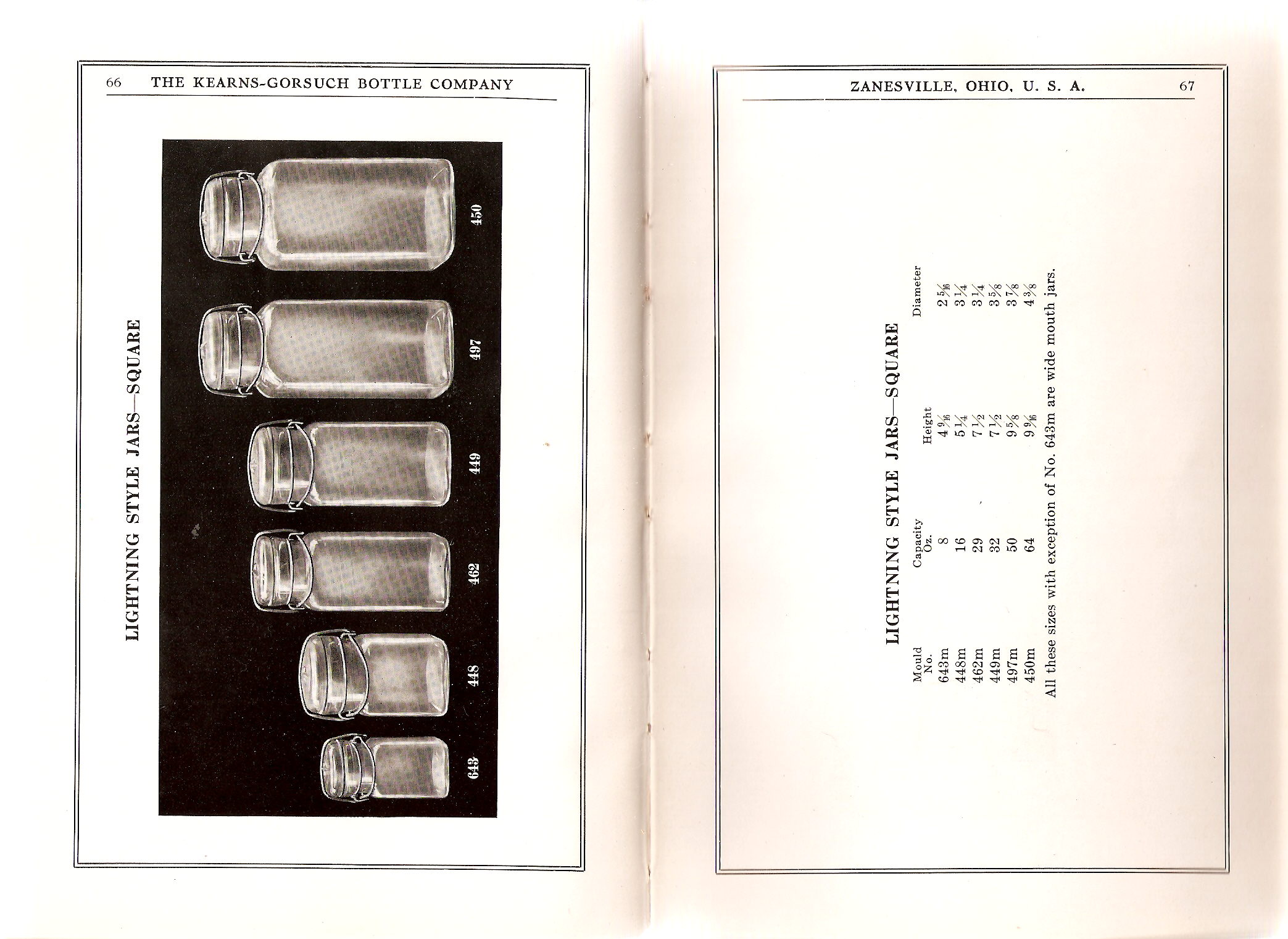

Pages 66-67: Lightning Style Jars - Square / sizes & detail information
Pages 68-69: Lightning Style Jar - Oval, American Fruit Jars / Reshipping Cases (title page only)

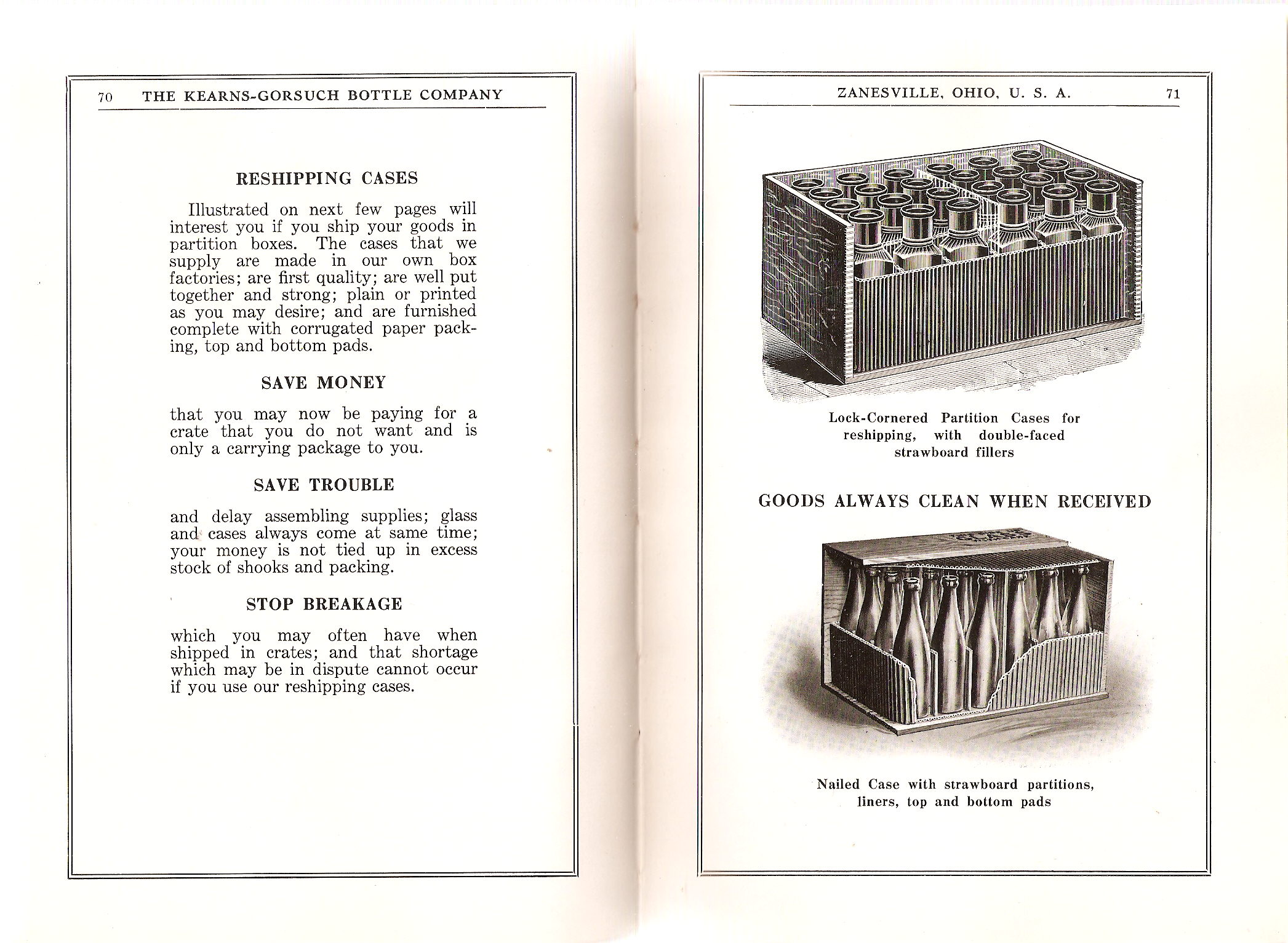

Pages 70-71: Packaging introduction & details / Illustrations of packaging

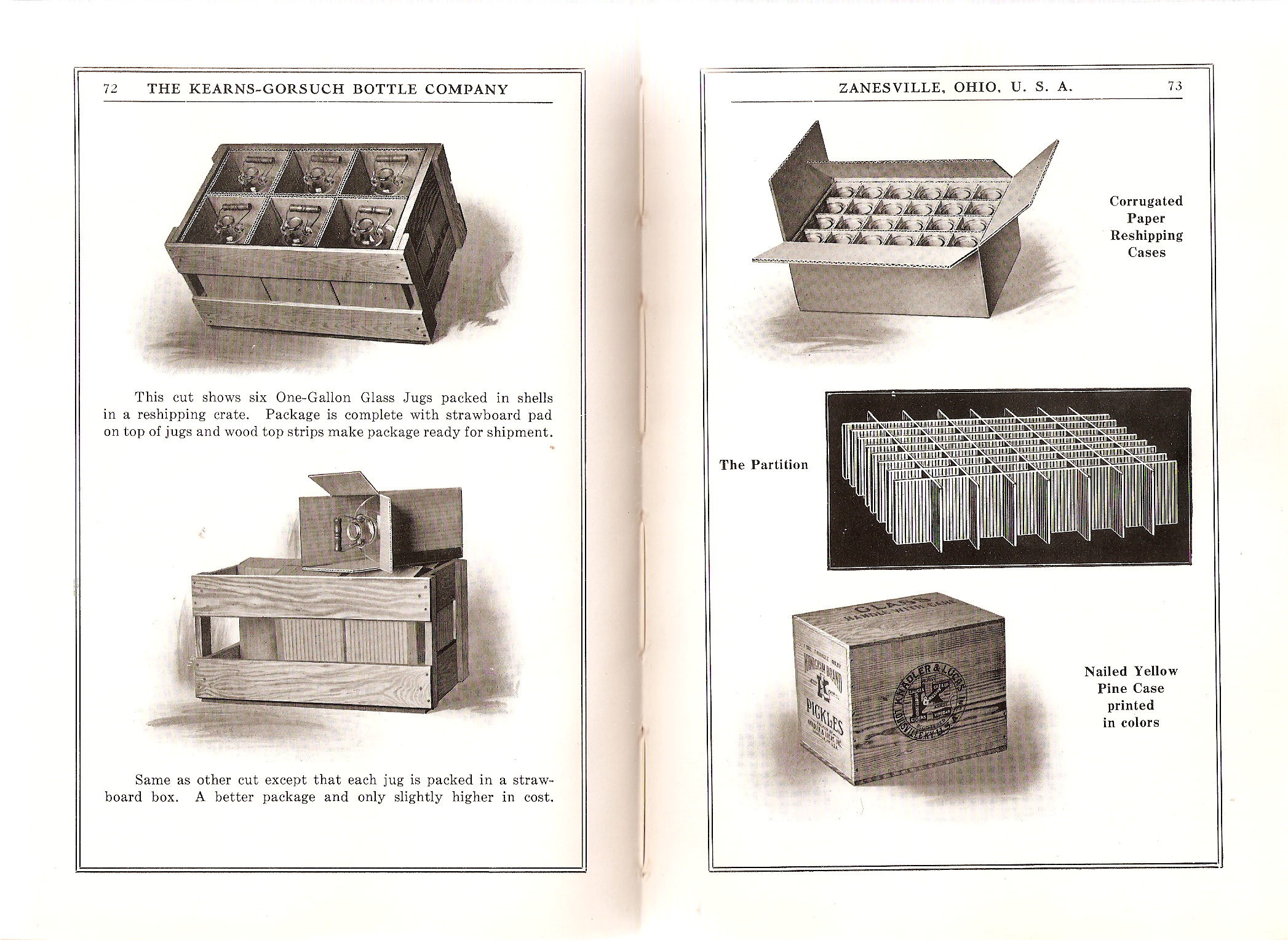

Pages 72-73: Various illustrations of packaging (both pages)

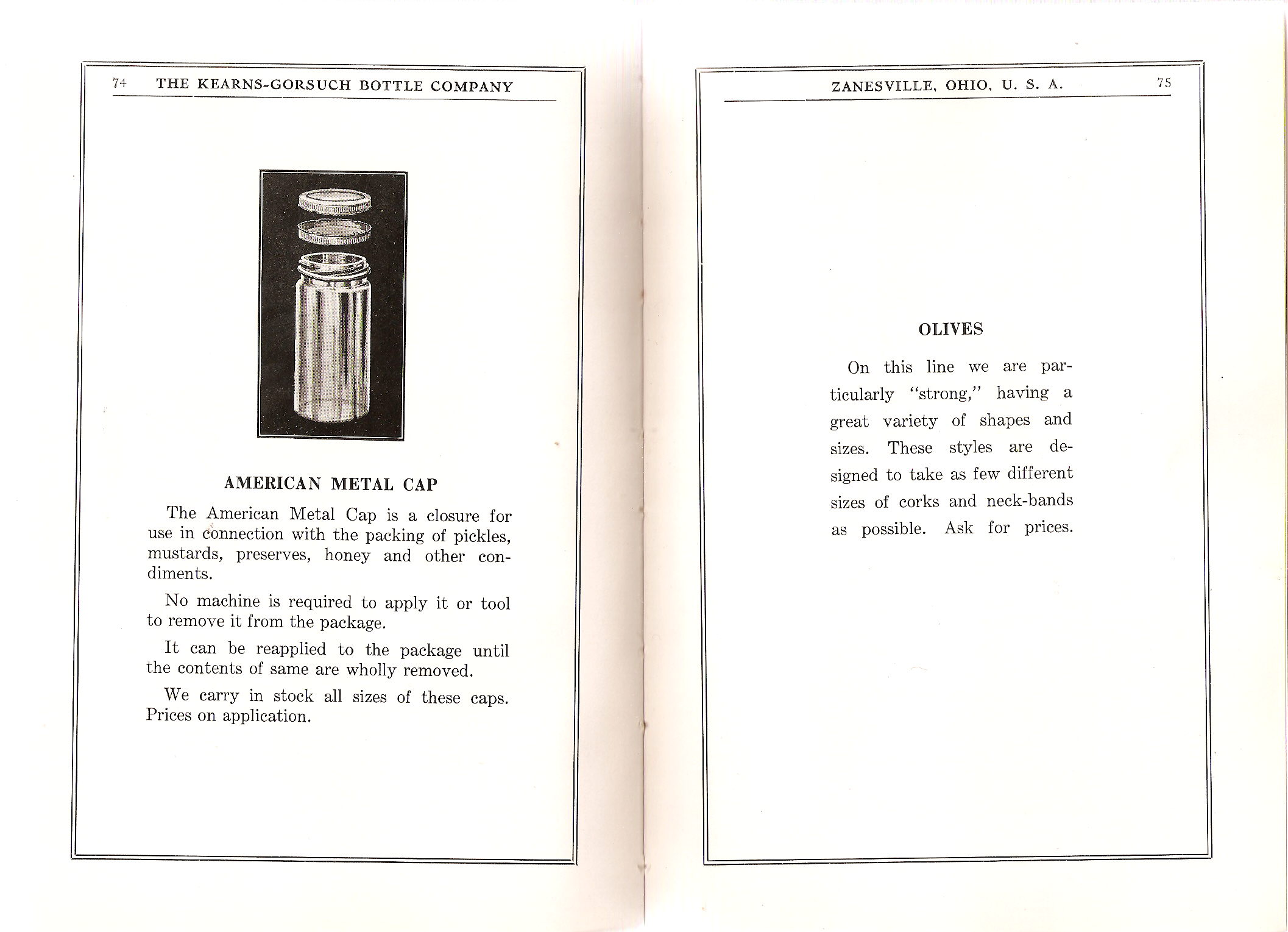

Pages 74-75: American Metal Cap / Olives (introduction only to olive bottles)

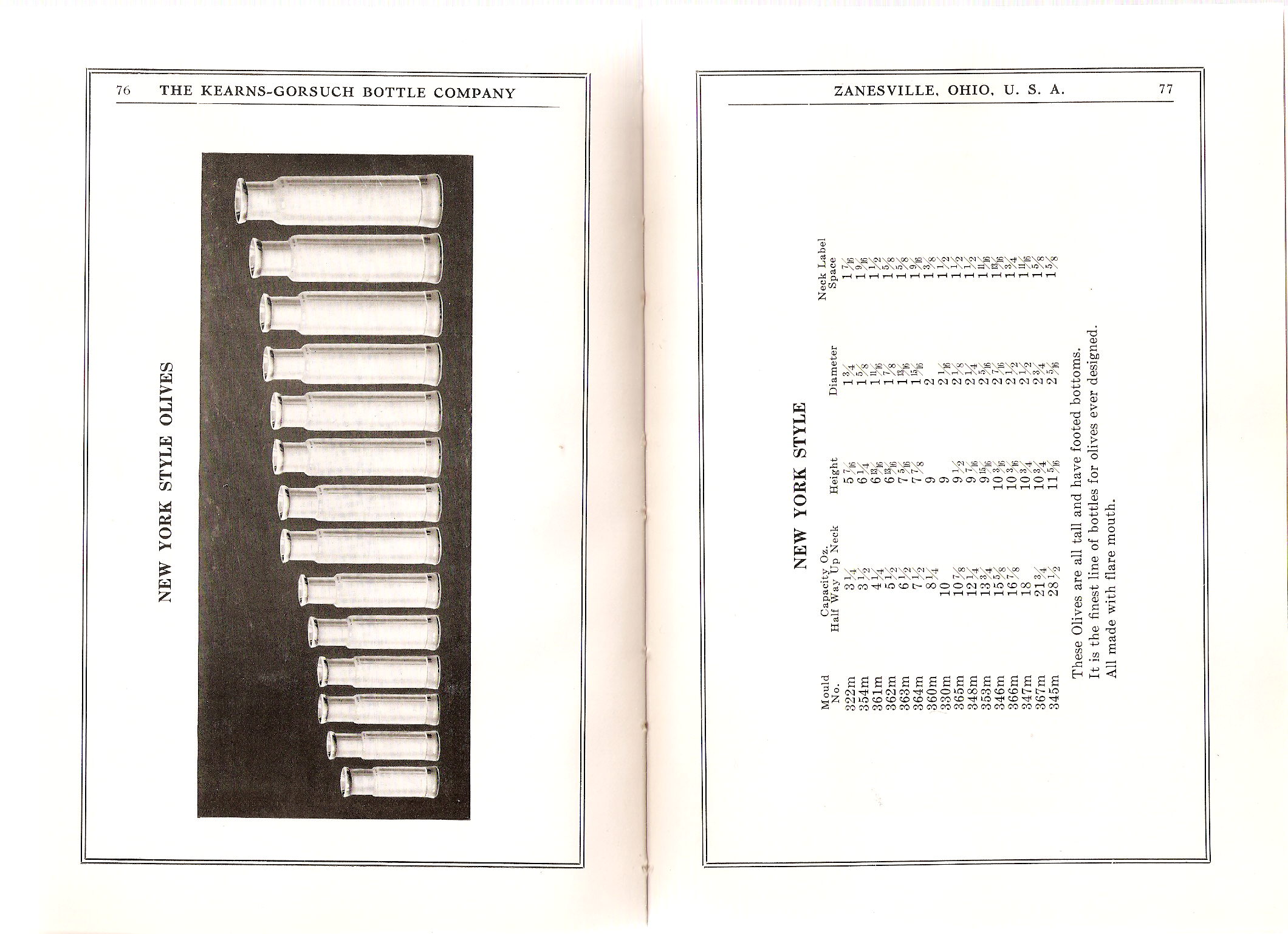

Pages 76-77: New York Style Olives / sizes & details information

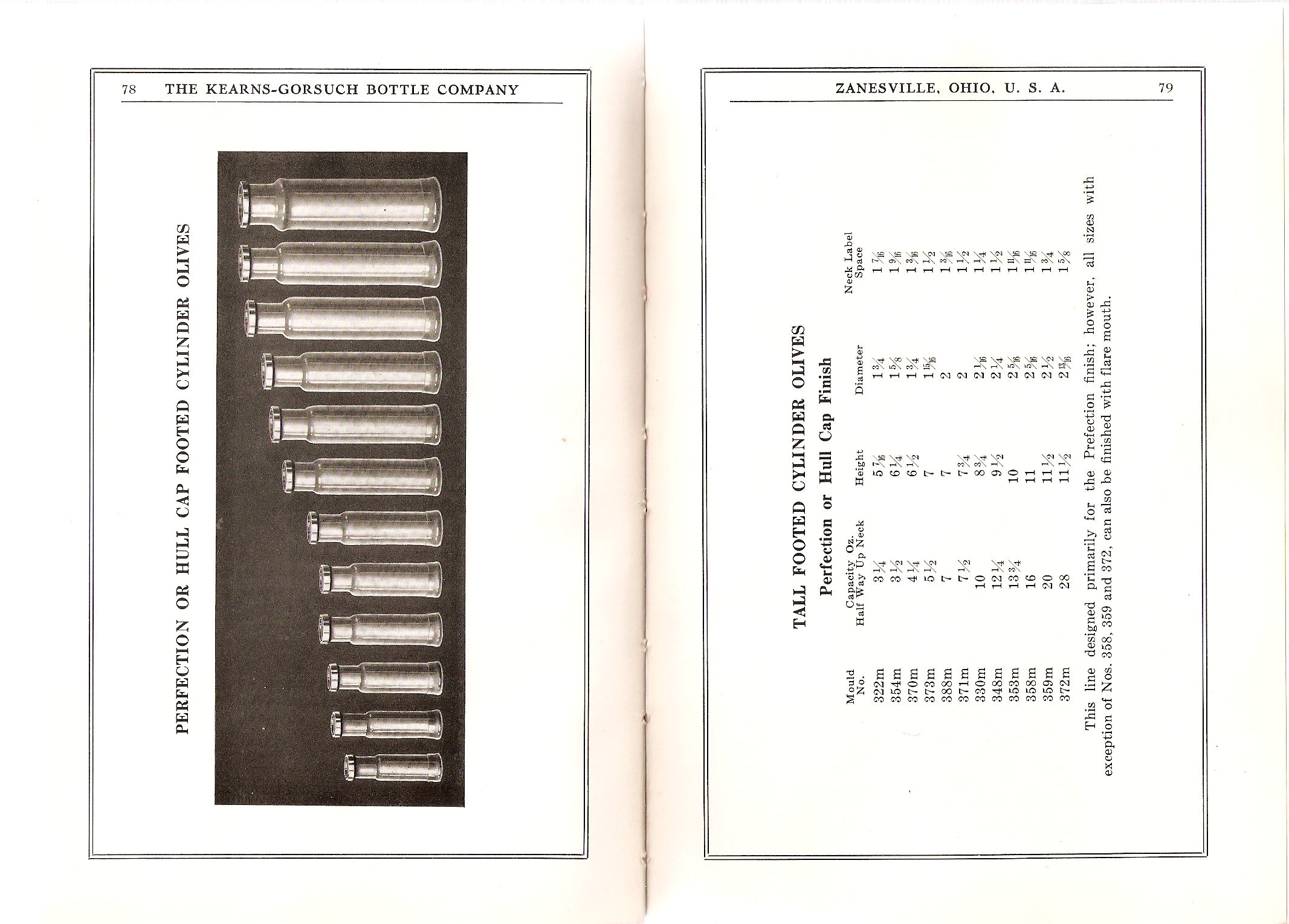

Pages 78-79: Perfection or Hull Cap Footed Cylinder Olives / sizes & detail information

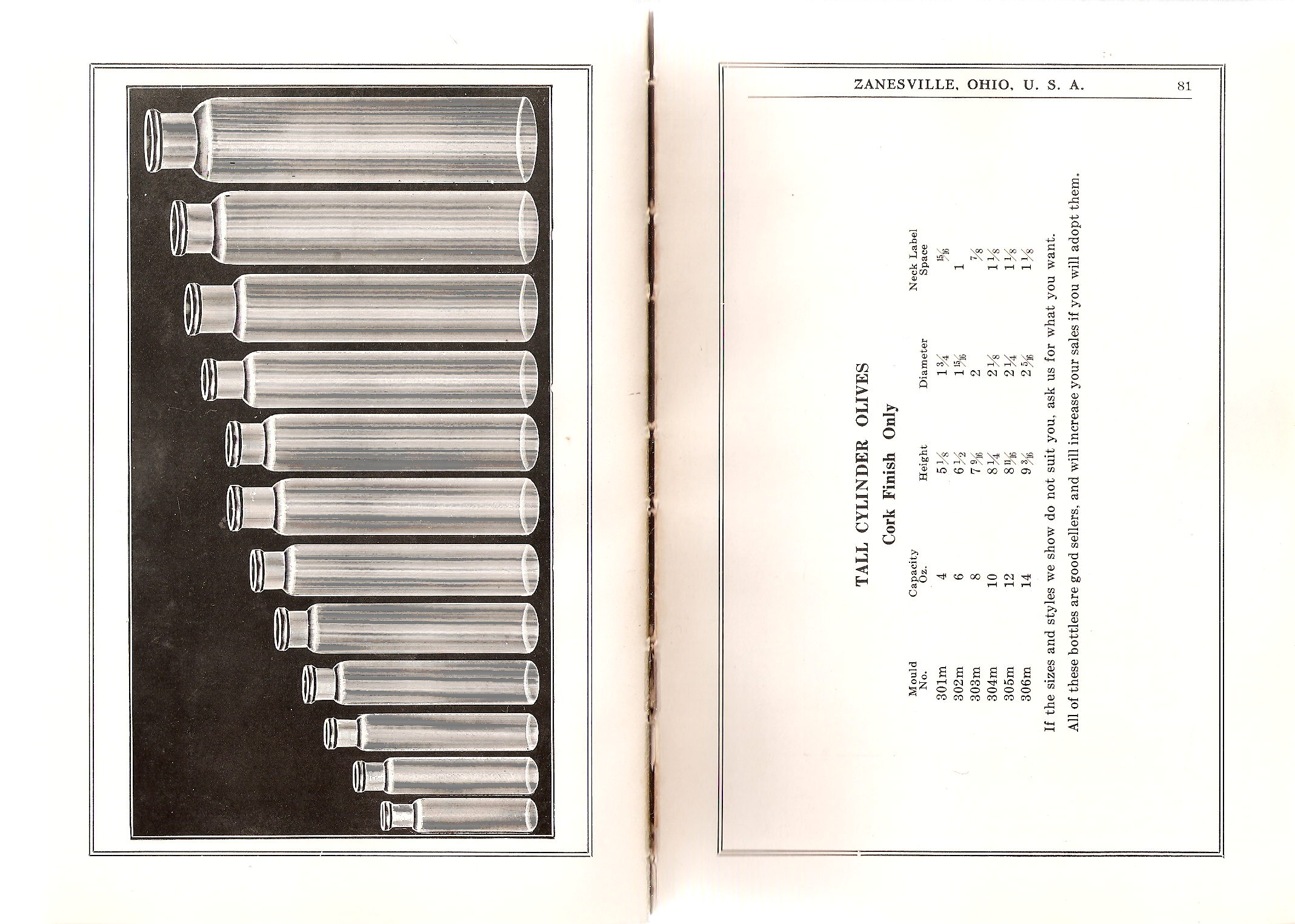

Pages 80-81: Tall Cylinder Olives / sizes & details information (cork only)

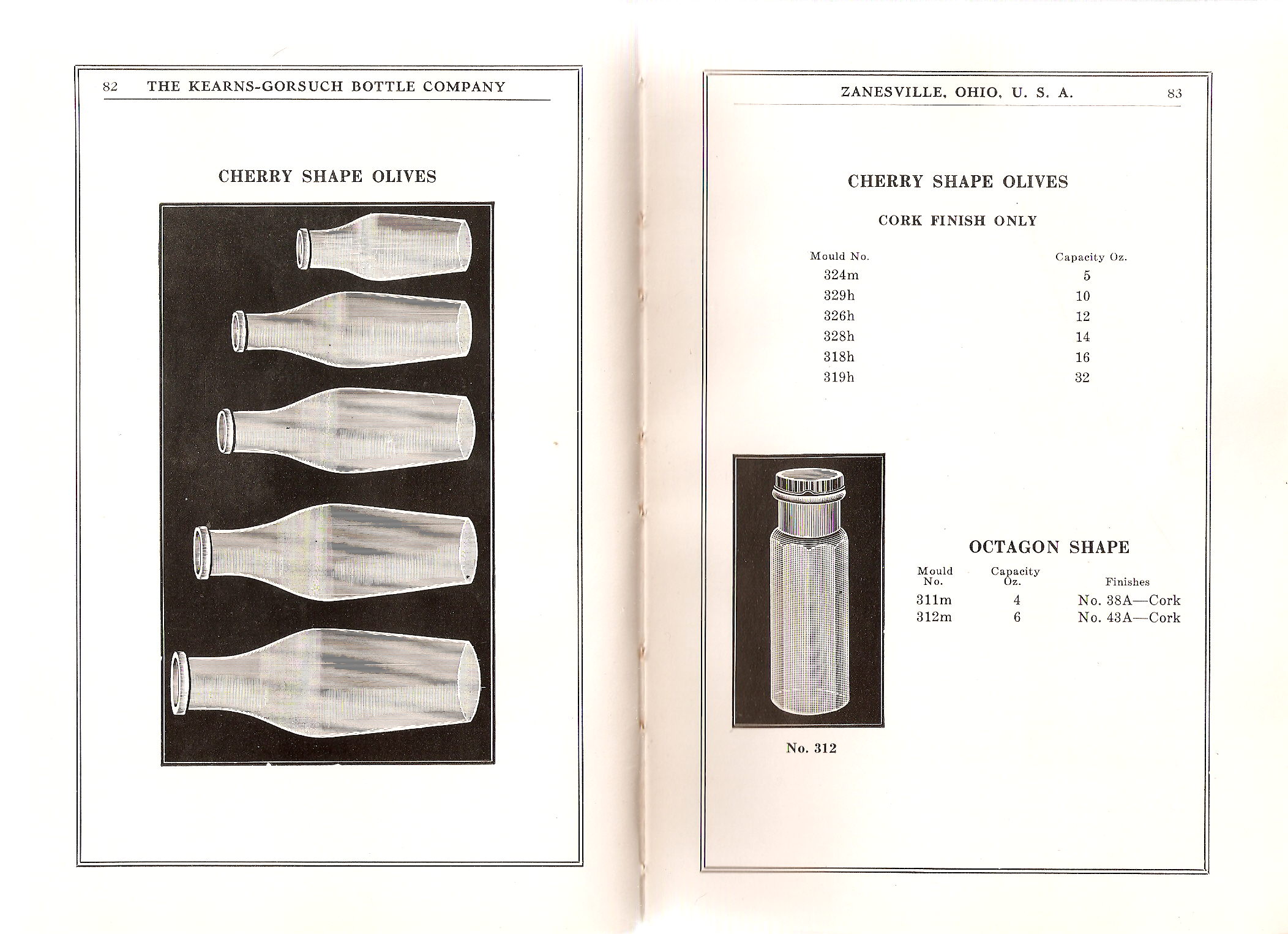

Pages 82-83: Cherry Shaped Olives / sizes & details information, Octagon Shape

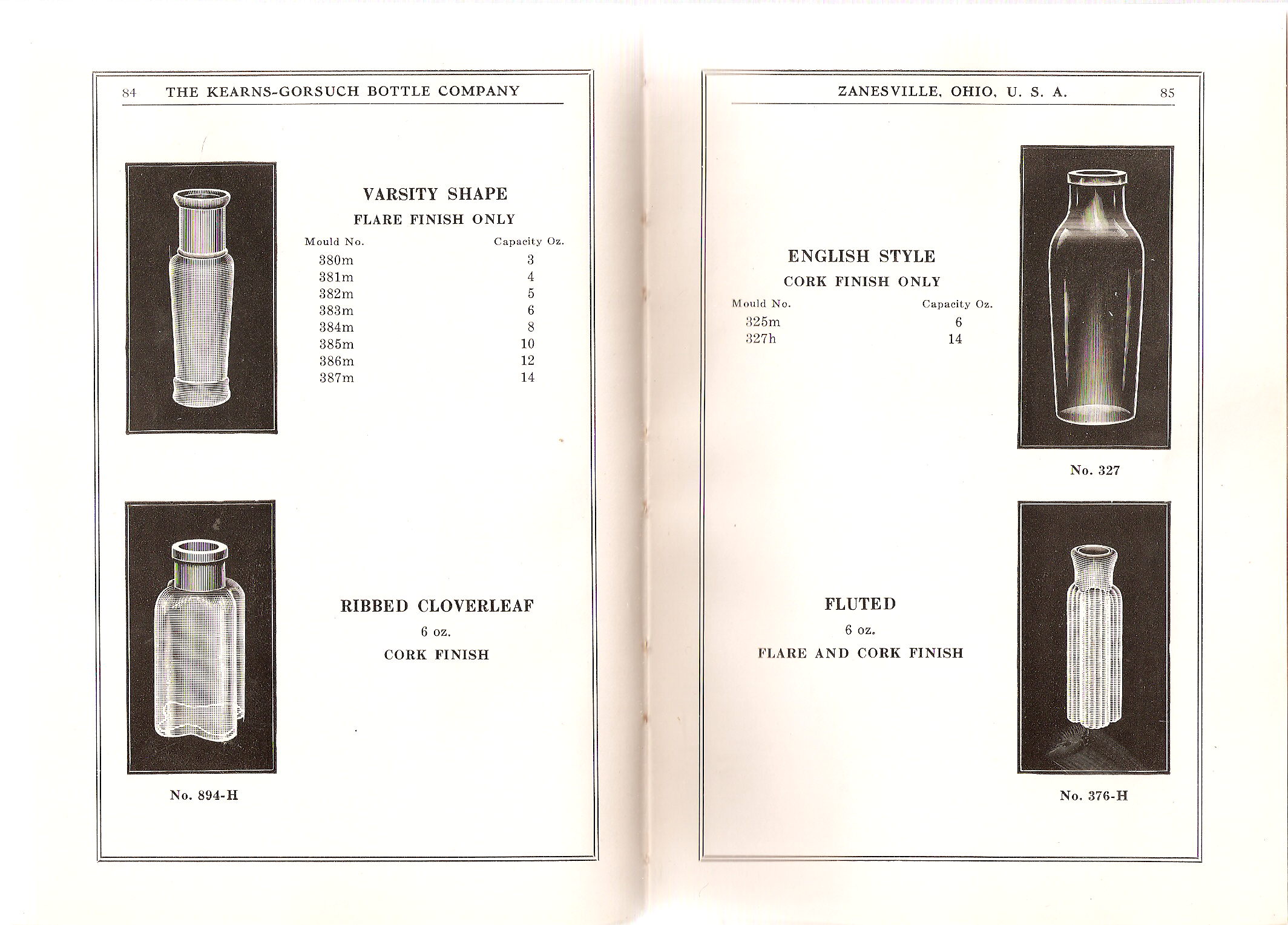

Pages 84-85: Varsity Shape, Ribbed Cloverleaf / English Style, Fluted

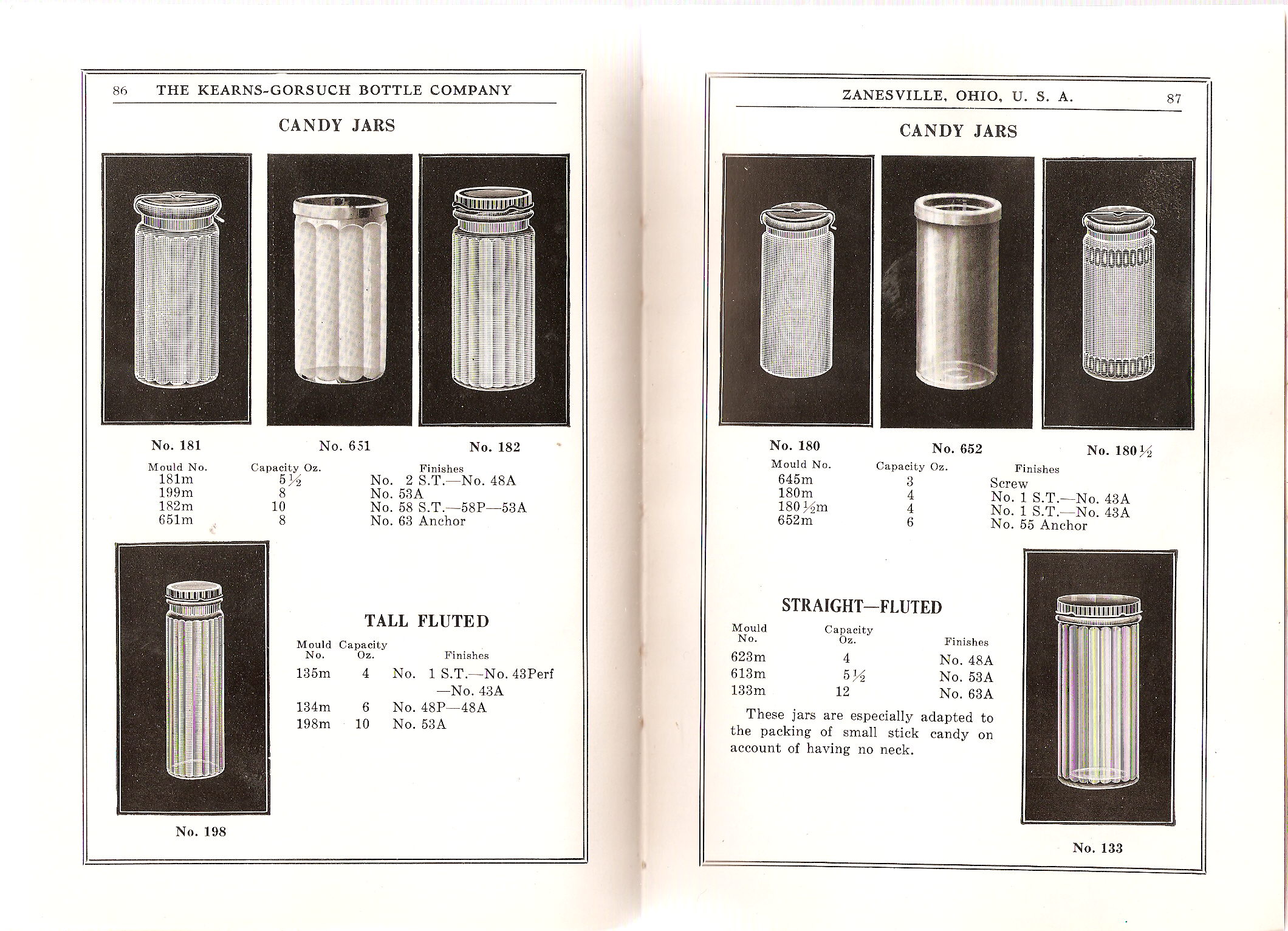

Pages 86-87: Candy Jars, Tall Fluted / Candy Jars, Straight-Fluted

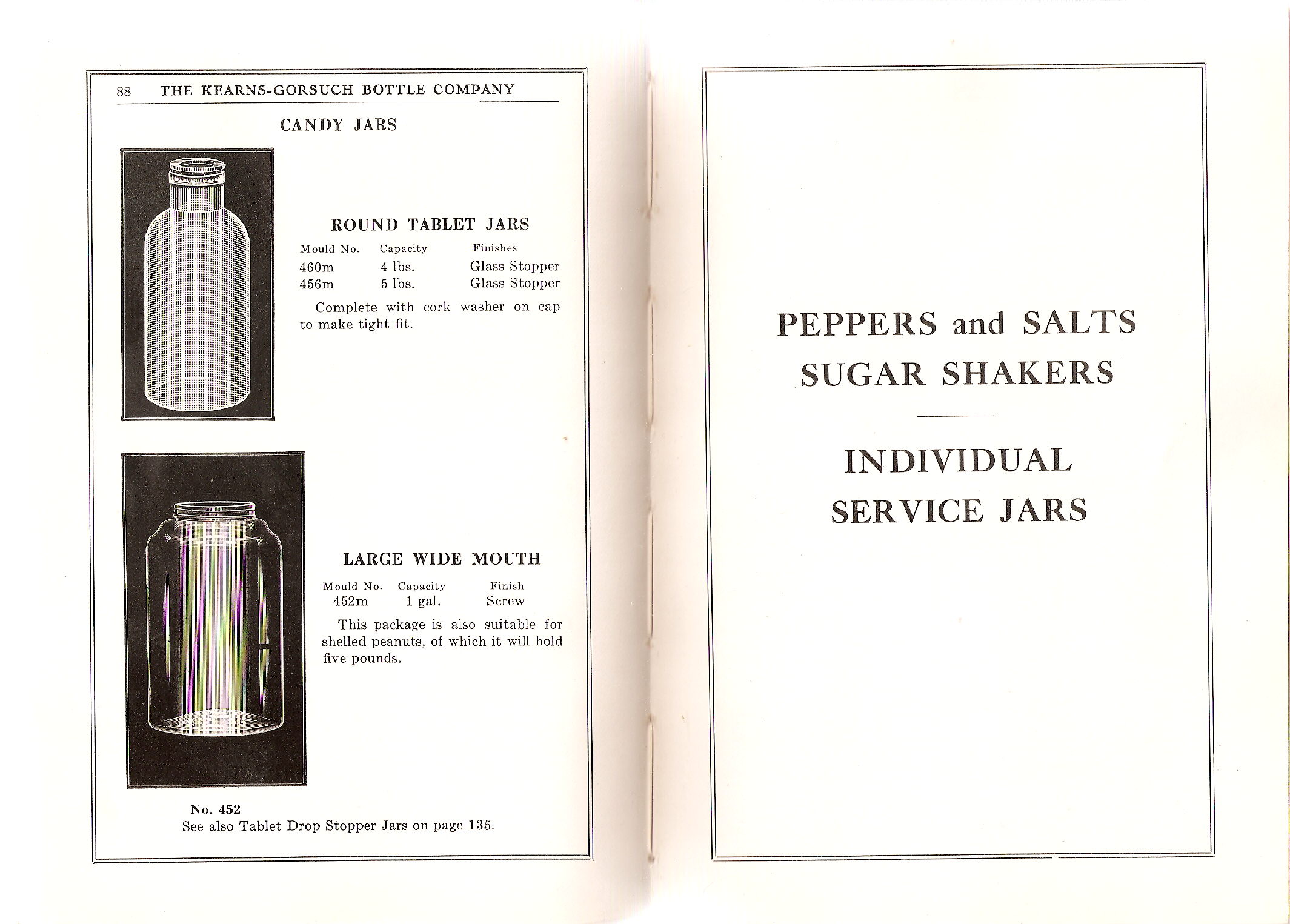

Pages 88-89: Round Tablet Jars, Large Wide Mouth / Peppers & Salt Shakers (title page only)

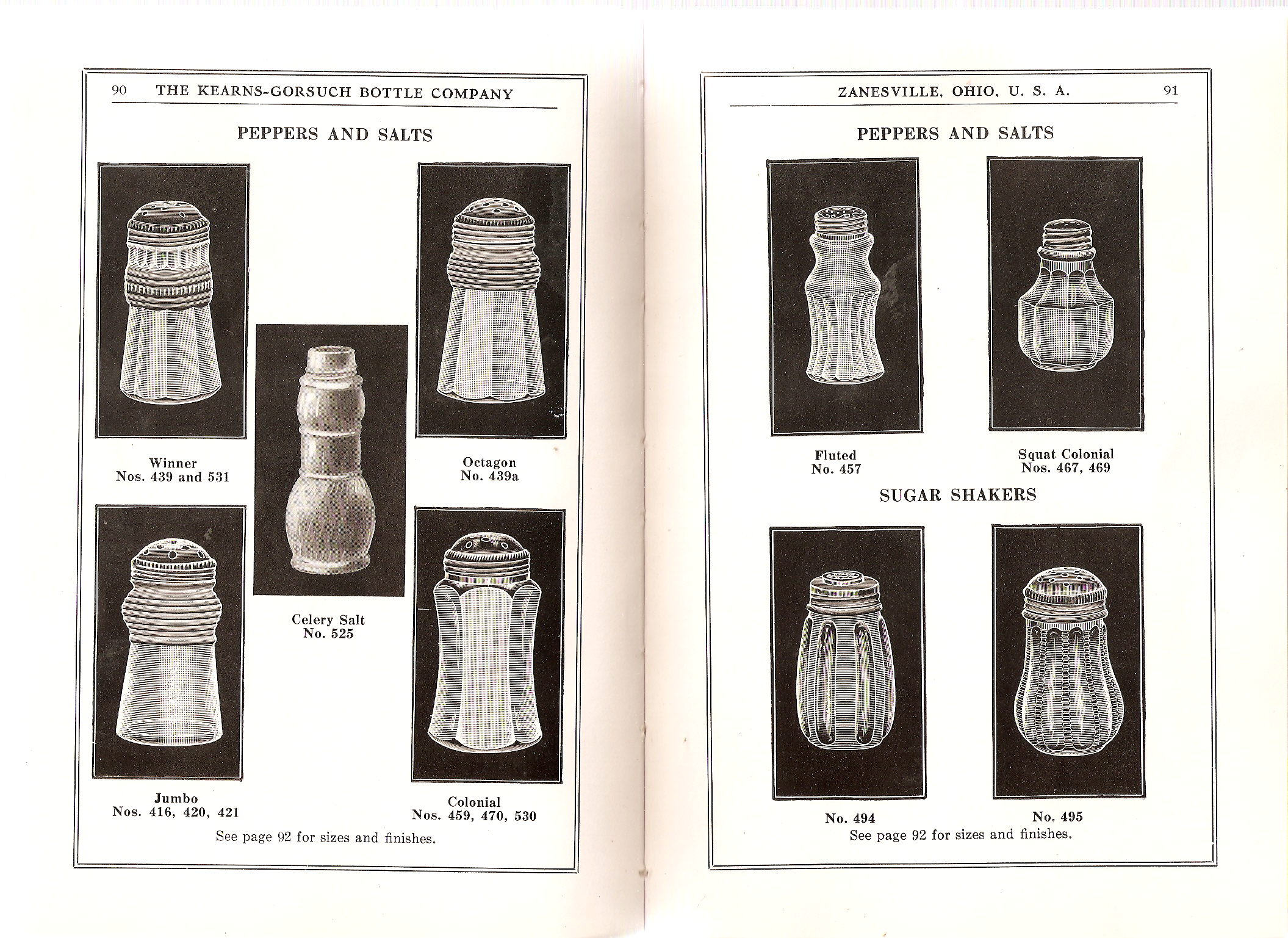

Pages 90-91: Peppers and Salts (both pages)

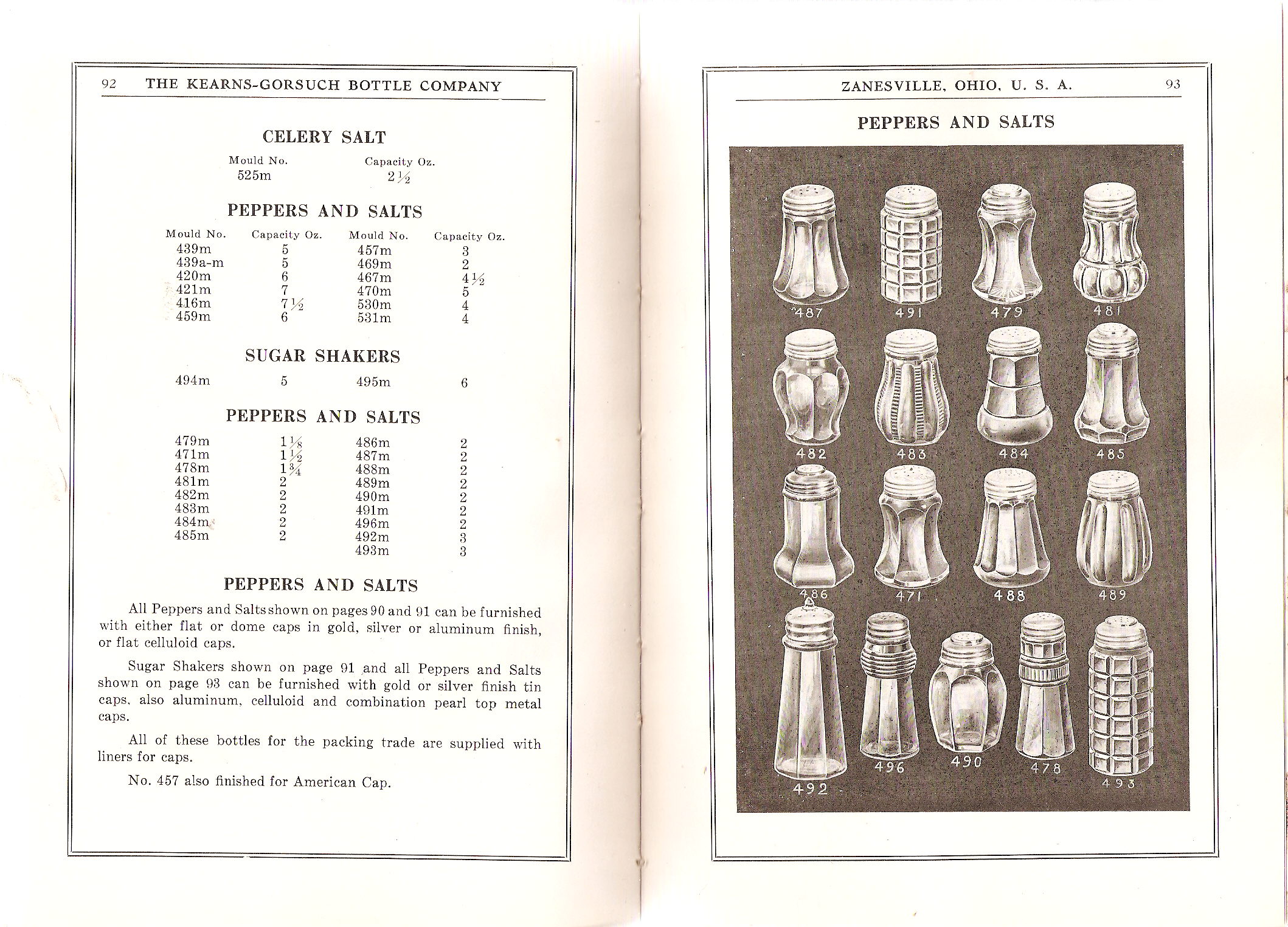

Pages 92-93: Celery Salt, Sugar Shakers, Peppers and Salts / Illustrations

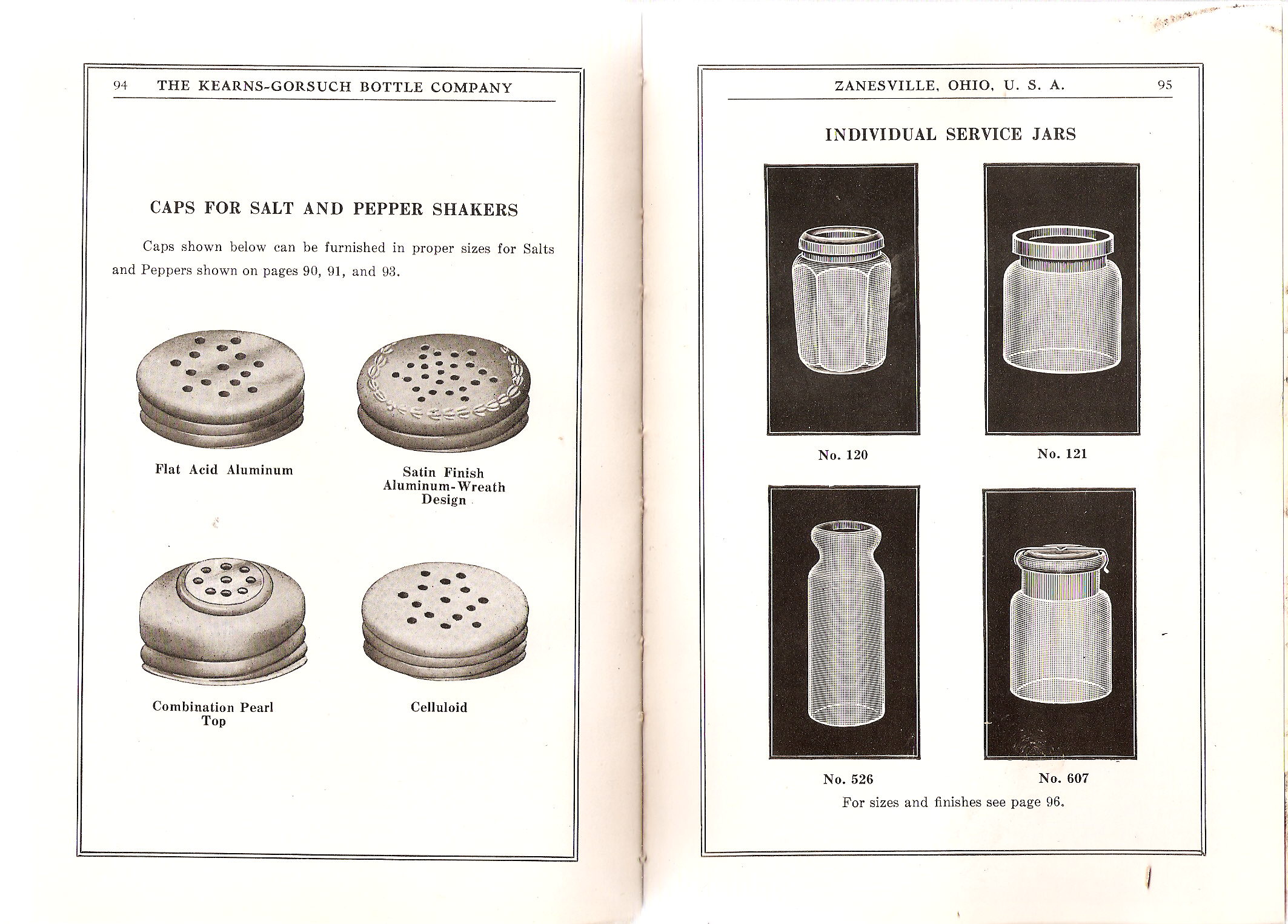

Pages 94-95: Caps for Salt and Pepper Shakers / Individual Service Jars

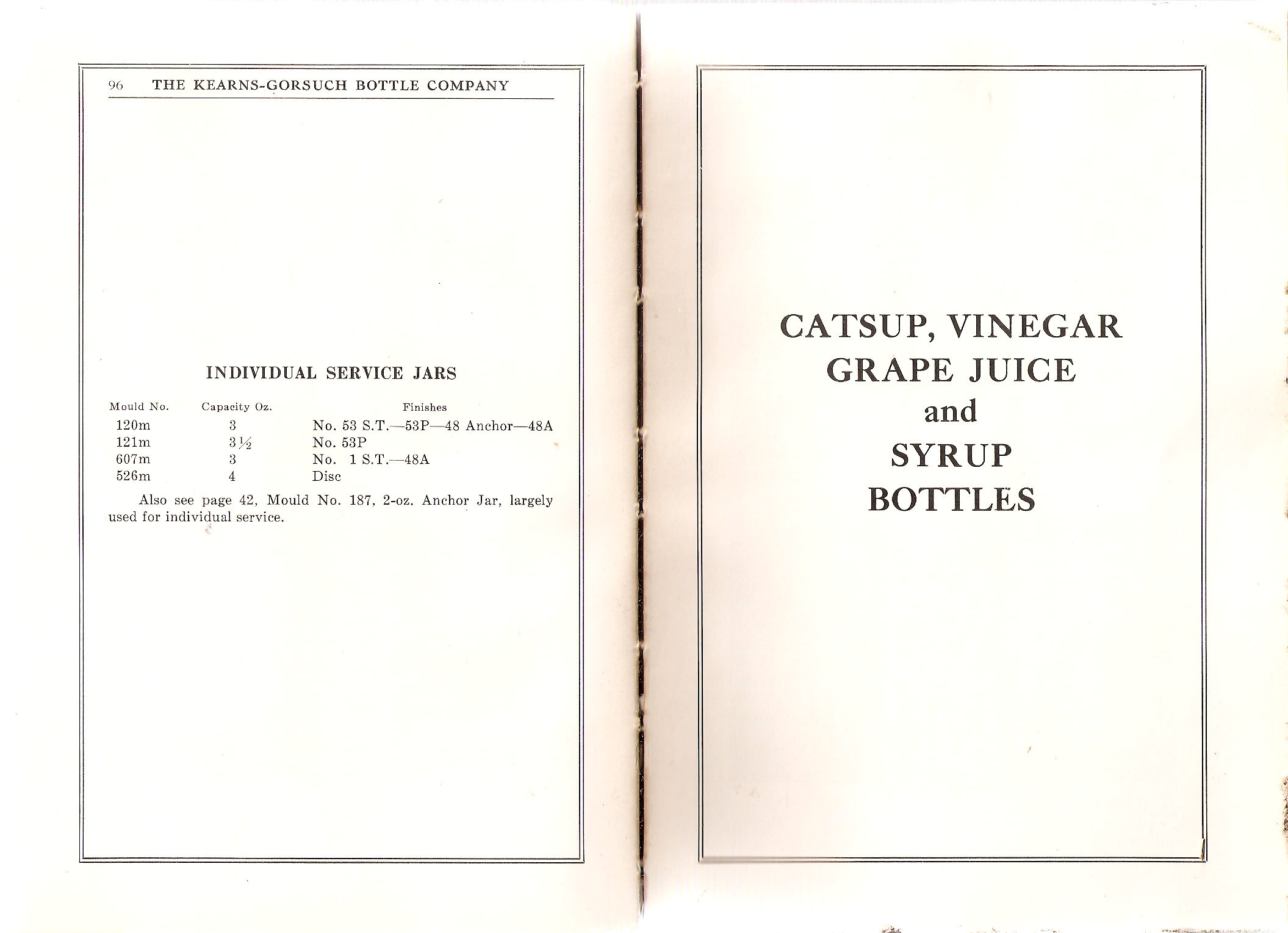

Pages 96-97: Individual Service Jars sizes & details / Catsup, Vinegar, Grape Juice & Syrup Bottles (title page only)

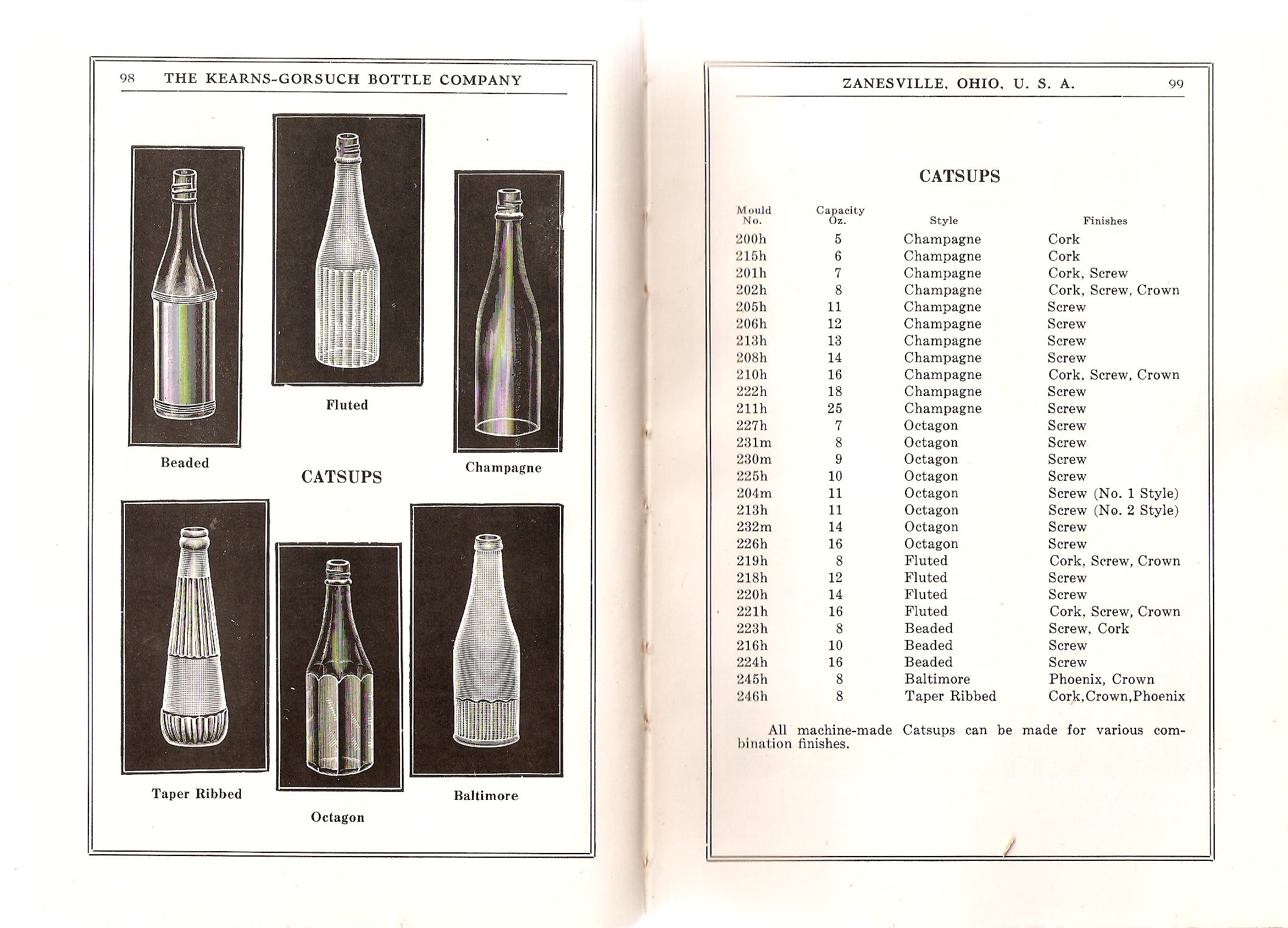

Pages 98-99: Catsups / styles, sizes & details information

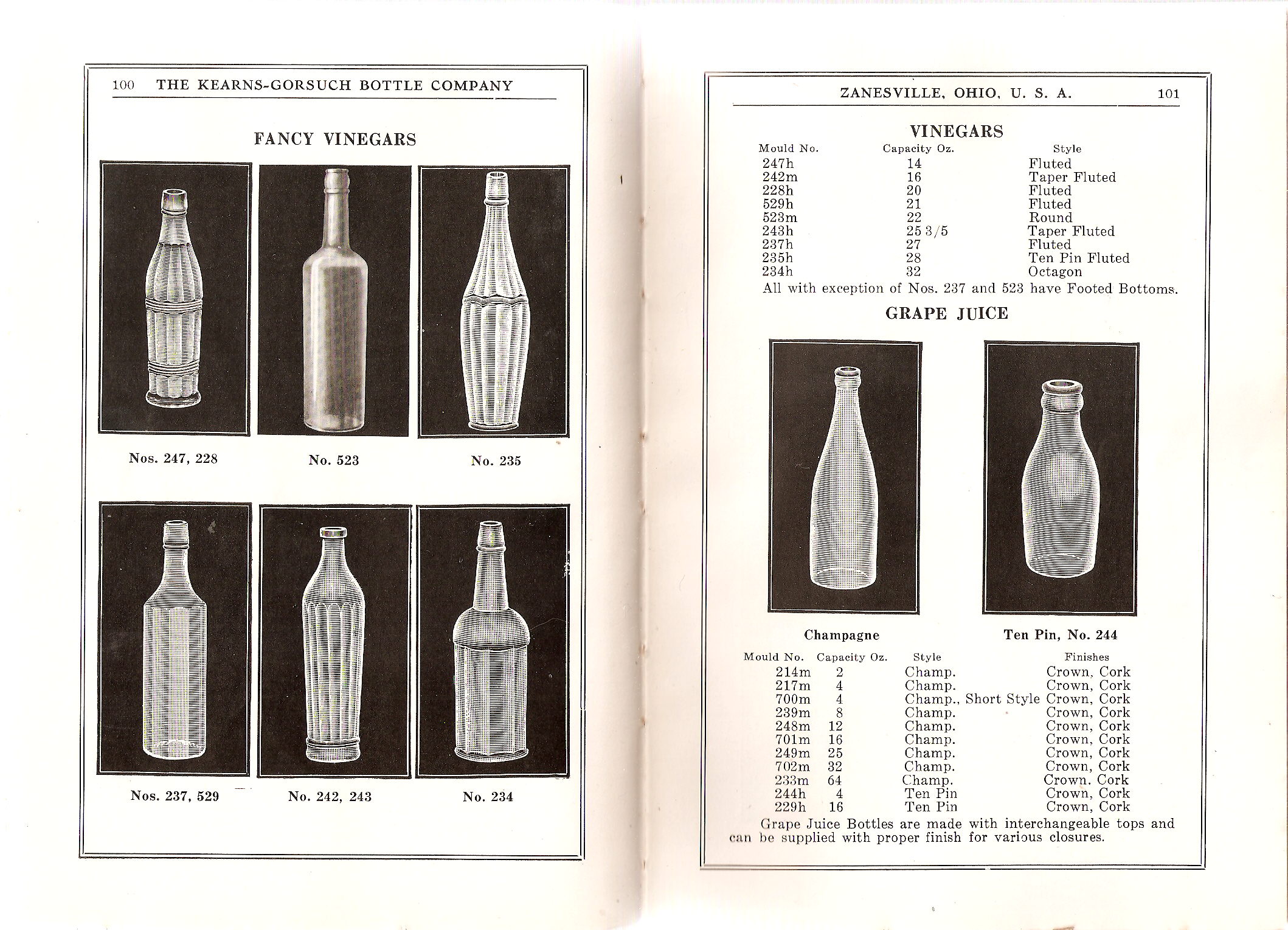

Pages 100-101: Fancy Vinegars / Vinegars, Grape Juice
Pages 102-103: Round & Square Fancy Syrups / Fancy Jug Shape, Decanter Style

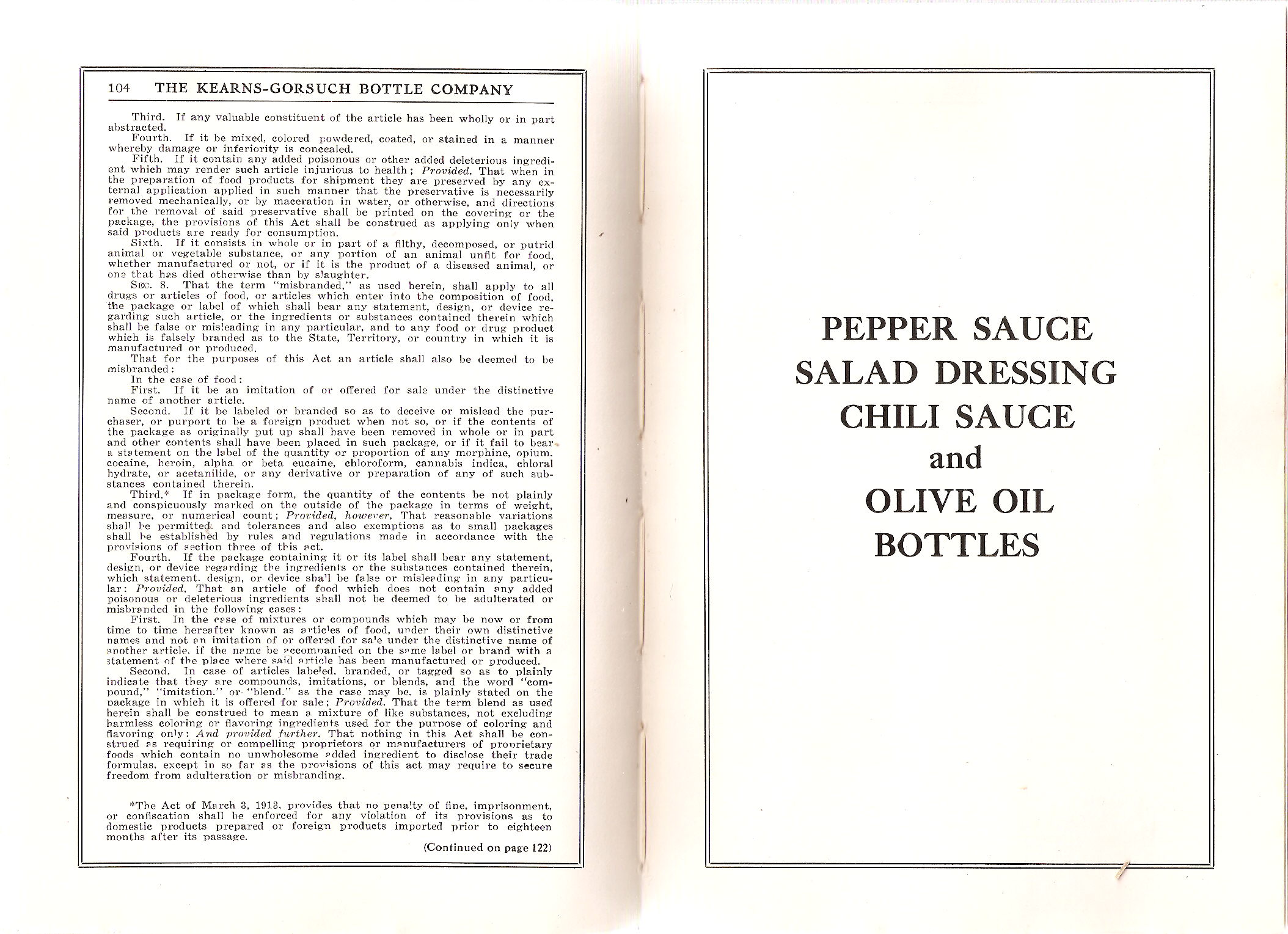

Pages 104-105: The National Pure Food Law (page 2) / Pepper Sauce, Salad Dressing, Chili Sauce & Olive Oil Bottles (title page only)

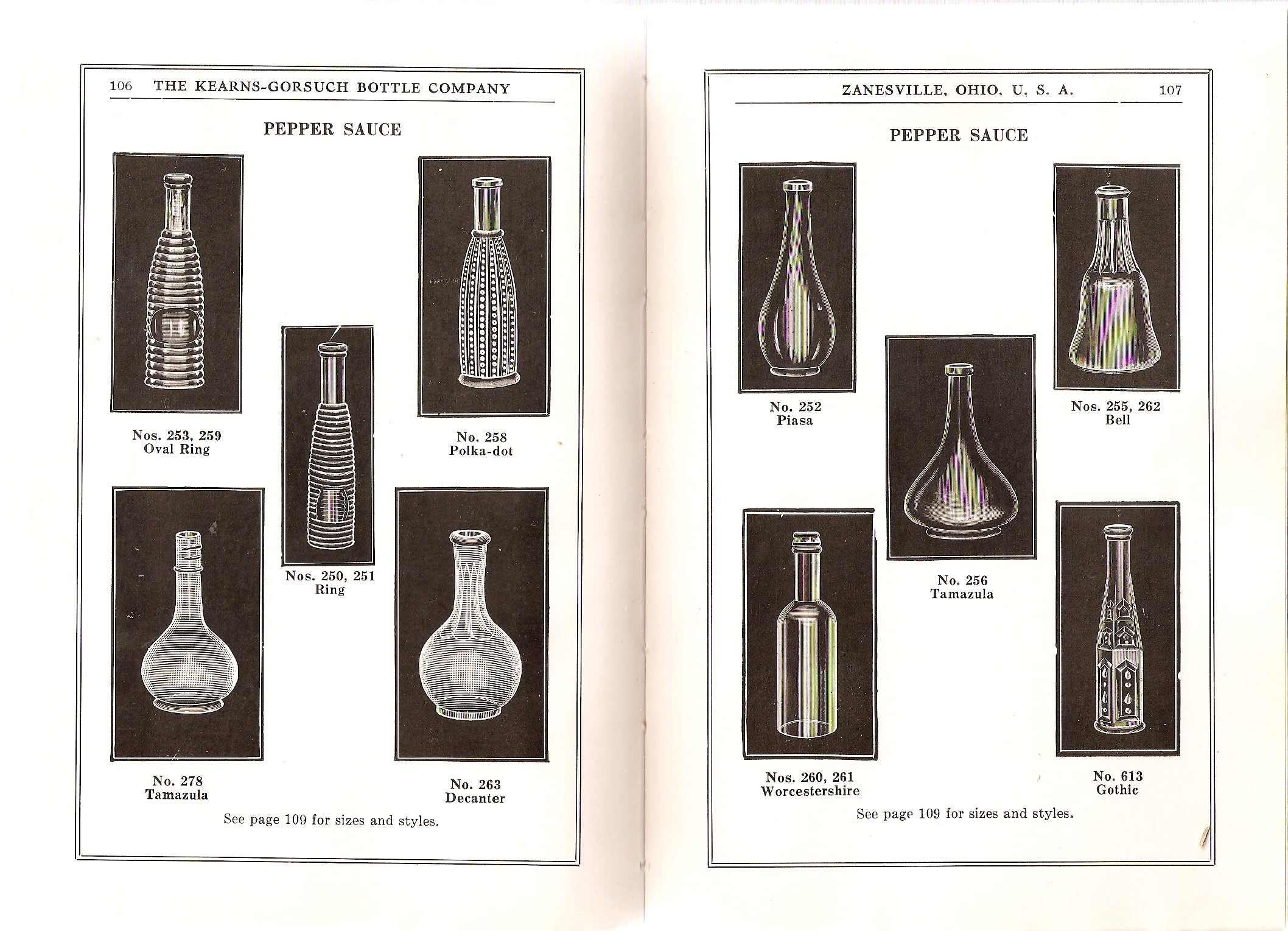

Pages 106-107: Pepper Sauce (both pages)

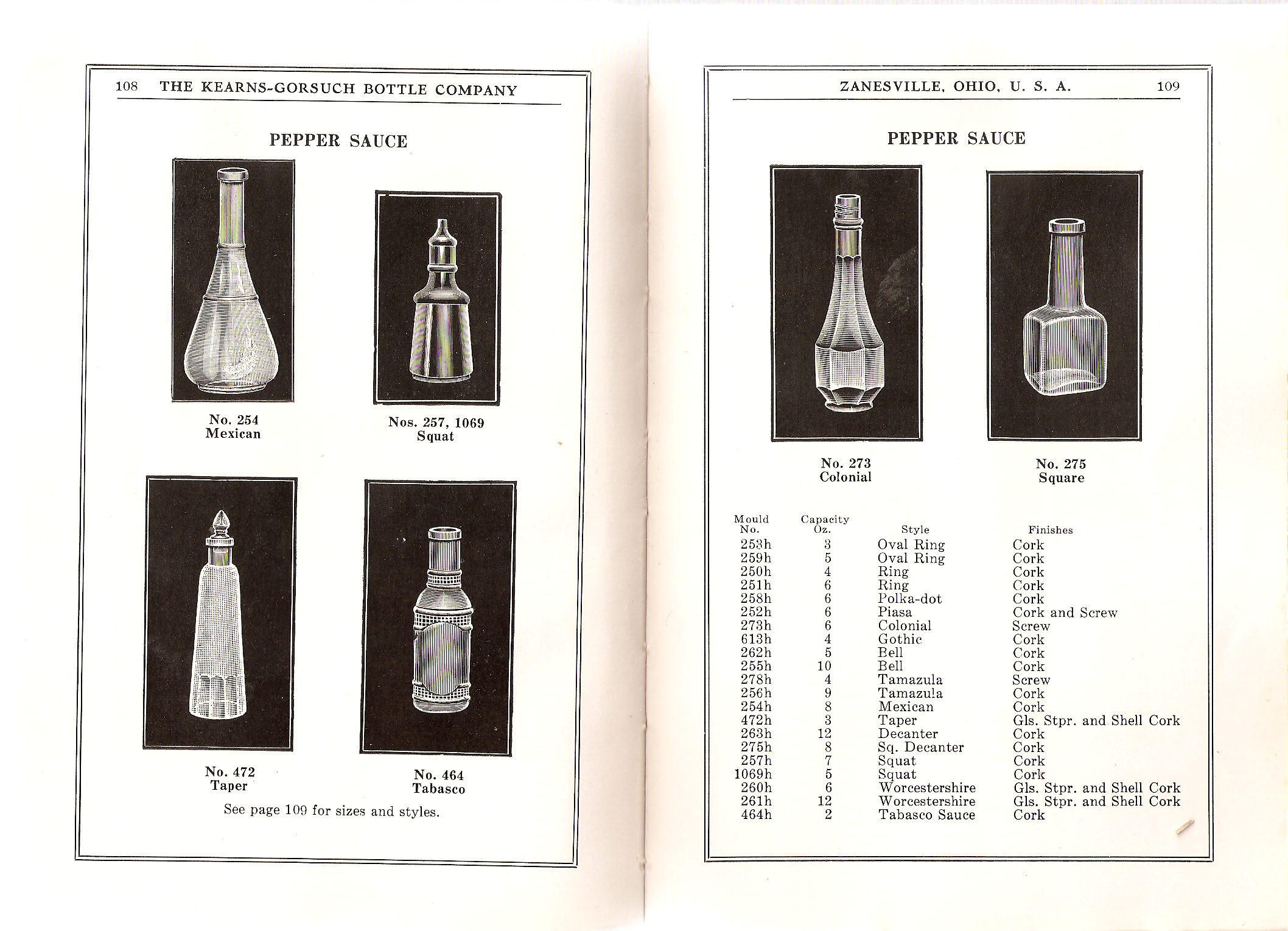

Pages 108-109: Pepper Sauce (both pages)
Pages 110-111: Salad Dressing & Chili Sauce (both pages)

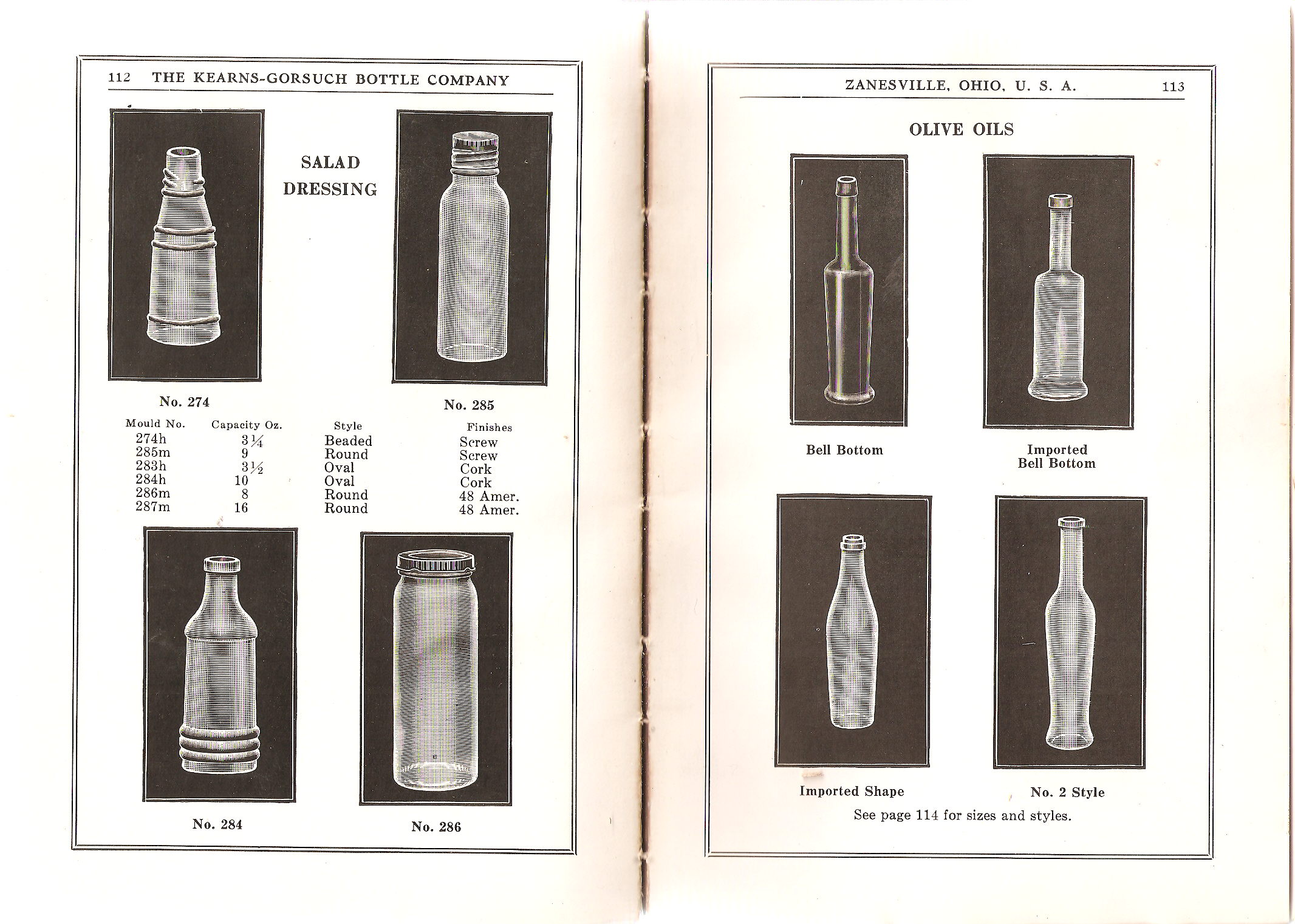

Pages 112-113: Salad Dressing / Olive Oils

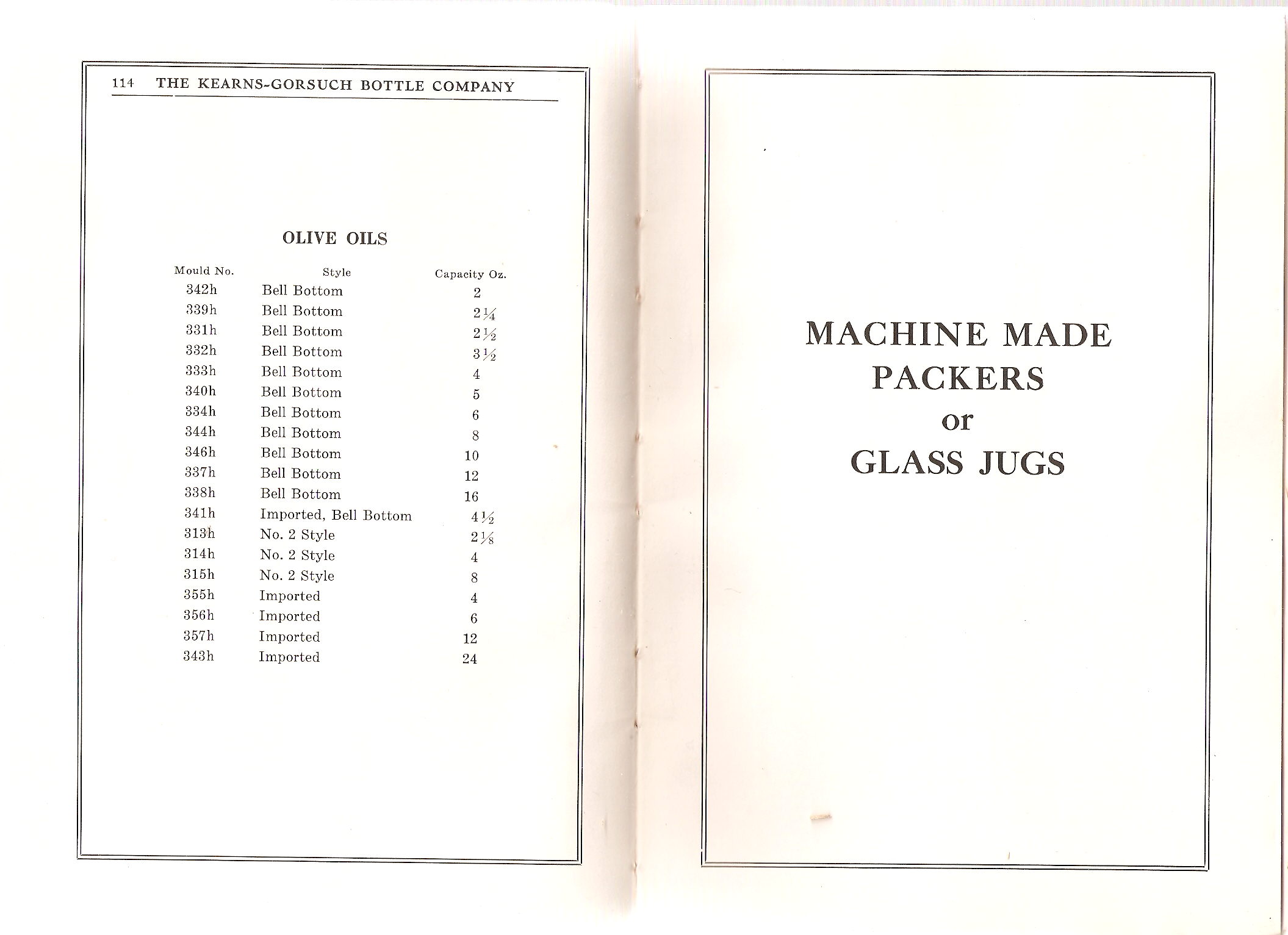

Pages 114-115: Olive Oil sizes & details (illustrated prior page) / Machine Made Packers or Glass Jugs (title page only)

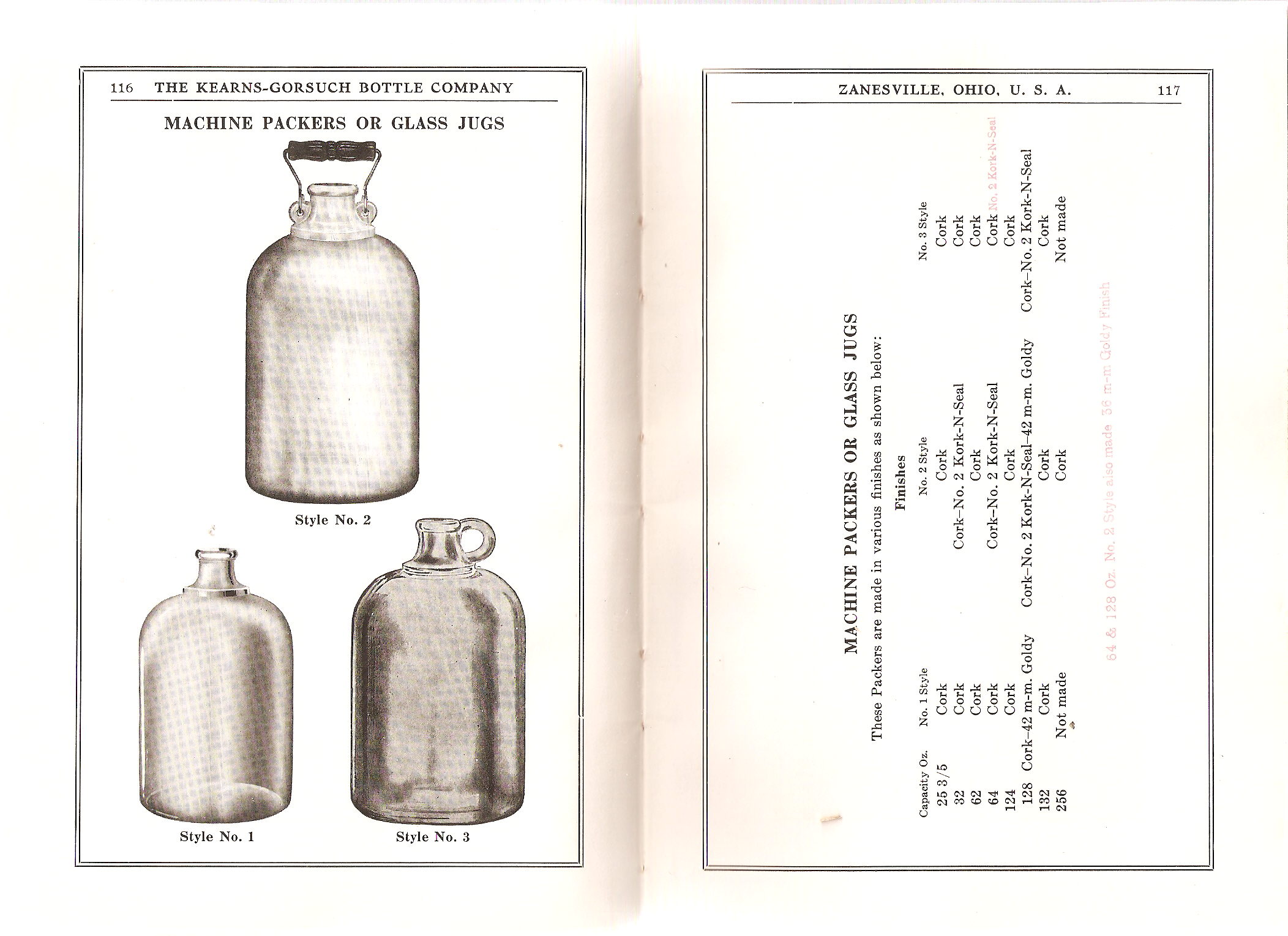

Pages 116-117: Machine Packers or Glass Jugs / sizes & details information

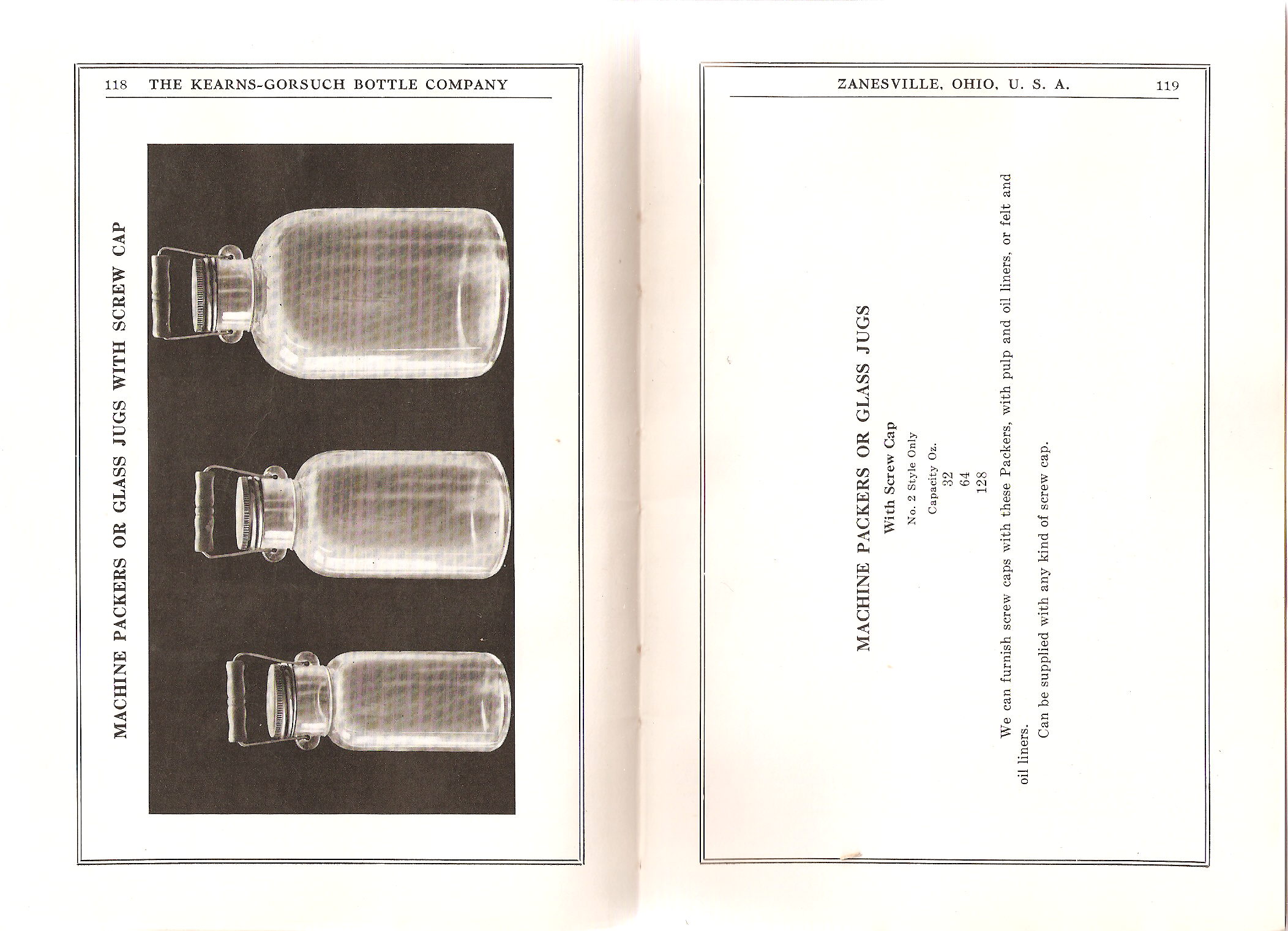

Pages 118-119: Machine Packers or Glass Jugs with Screw Cap / sizes & details information

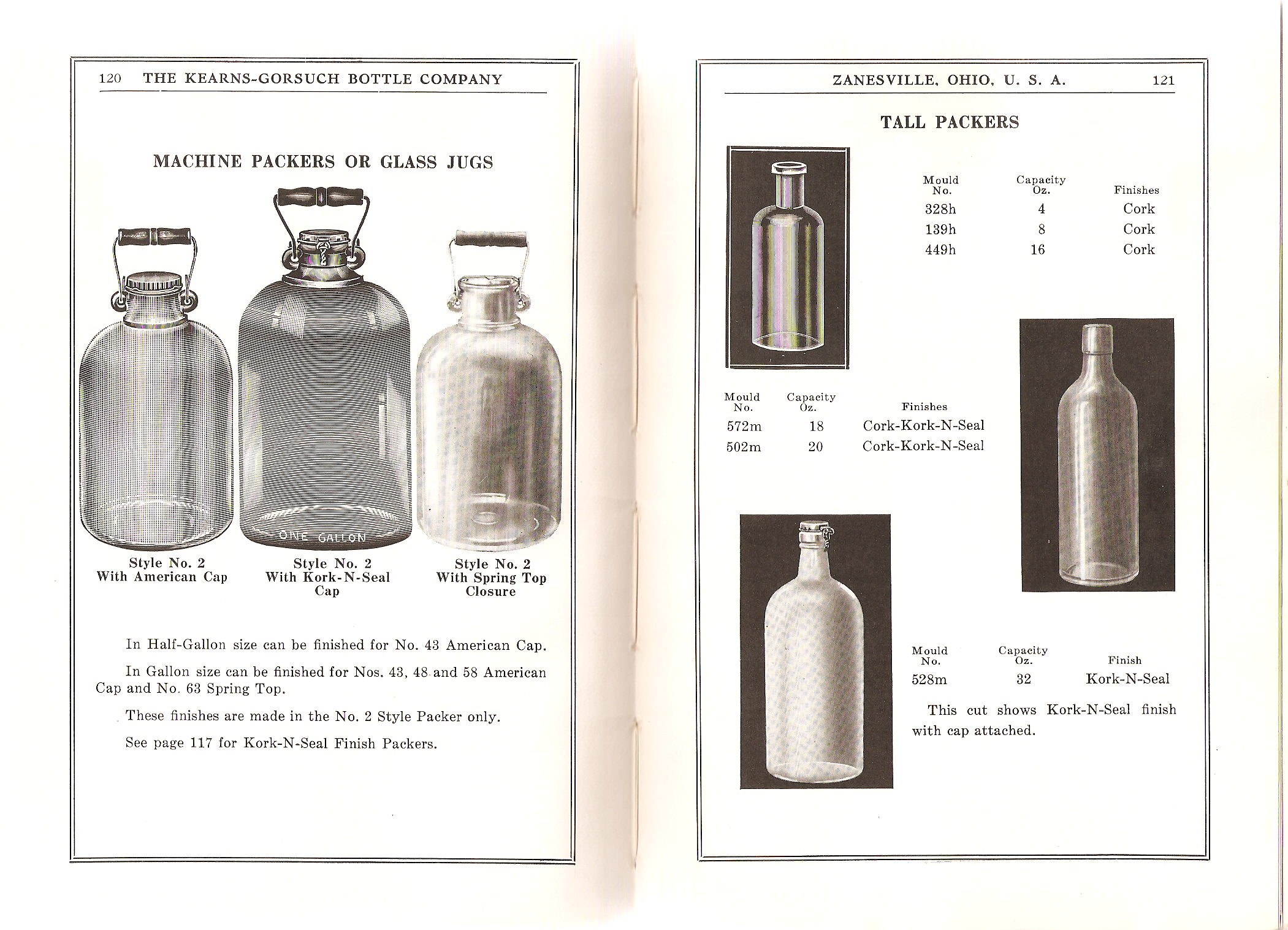

Pages 120-121: Machine Packers or Glass Jugs / Tall Packers

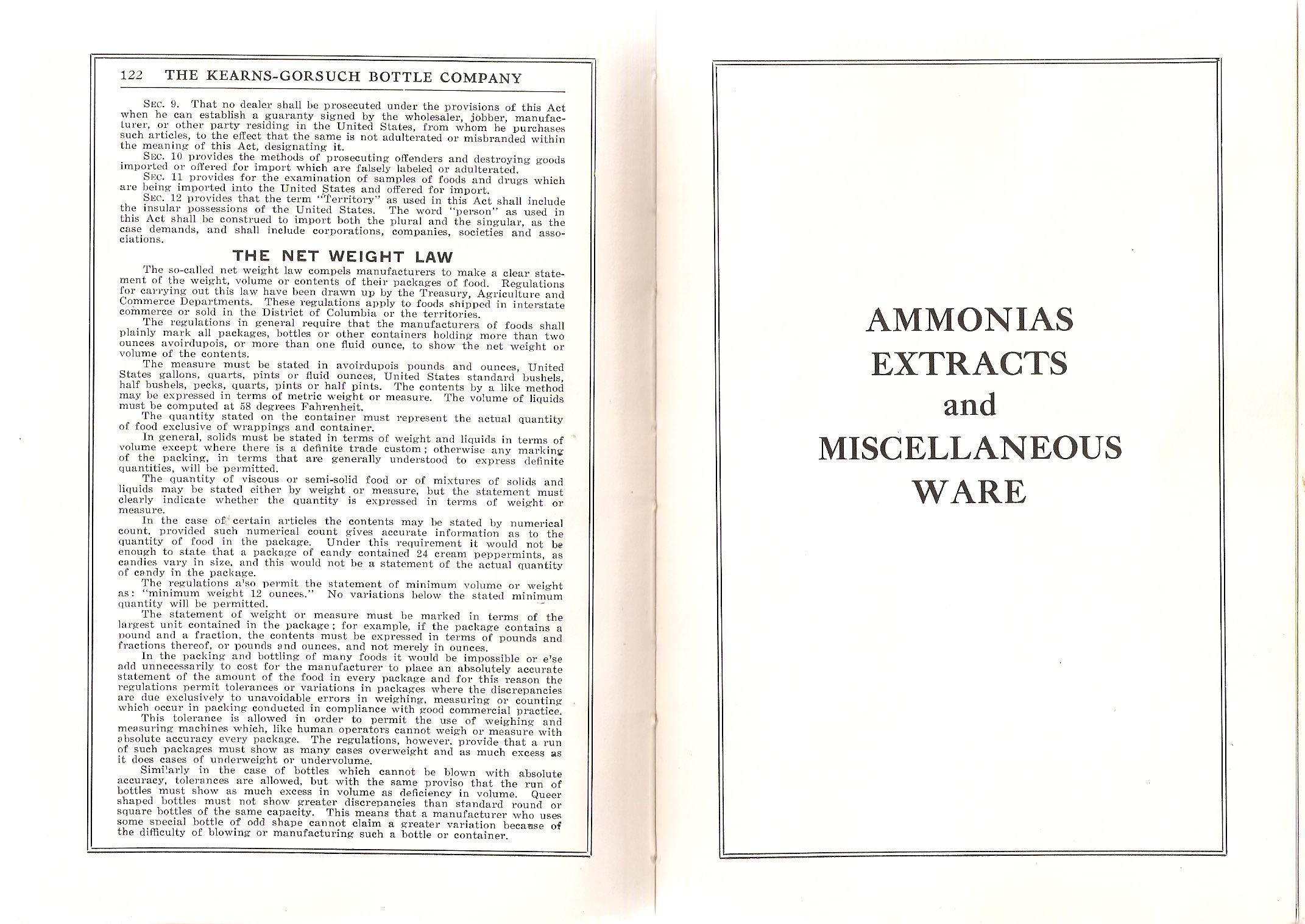

Pages 122-123: The National Pure Food Law (page 3) / Ammonias, Extracts and Miscellaneous Ware (title page only)

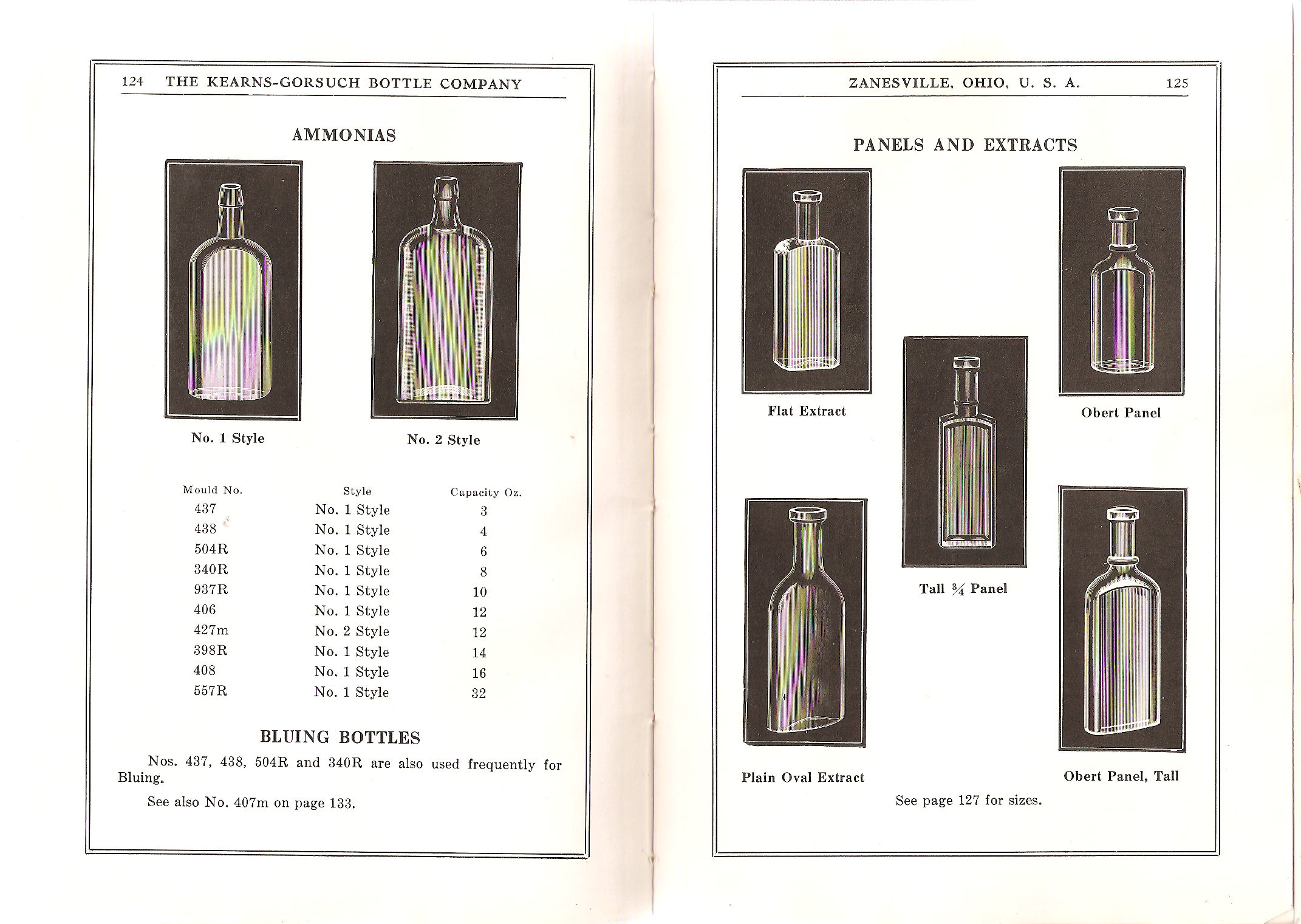

Pages 124-125: Ammonias / Panels & Extracts

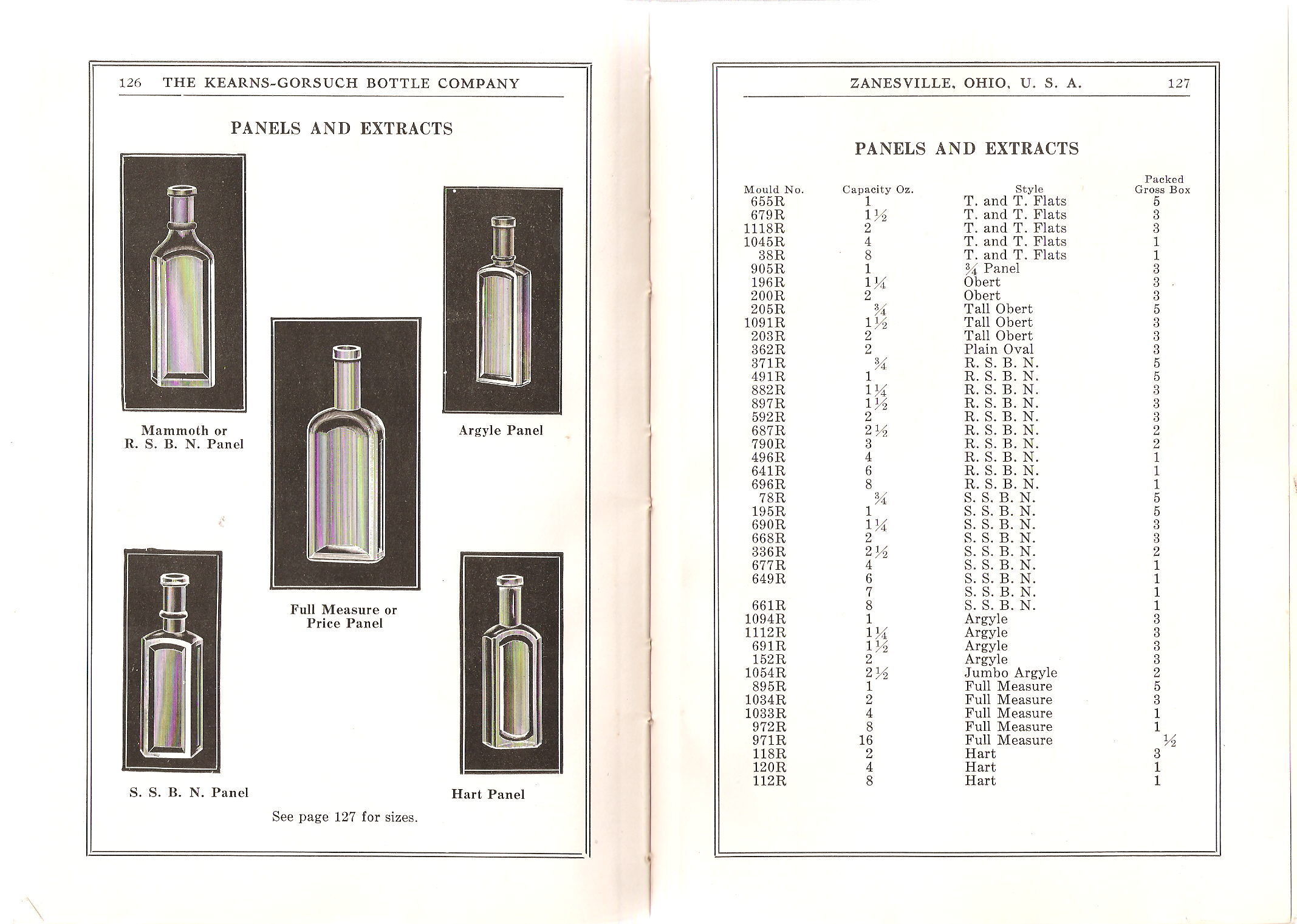

Pages 126-127: Panels & Extracts / sizes & details information

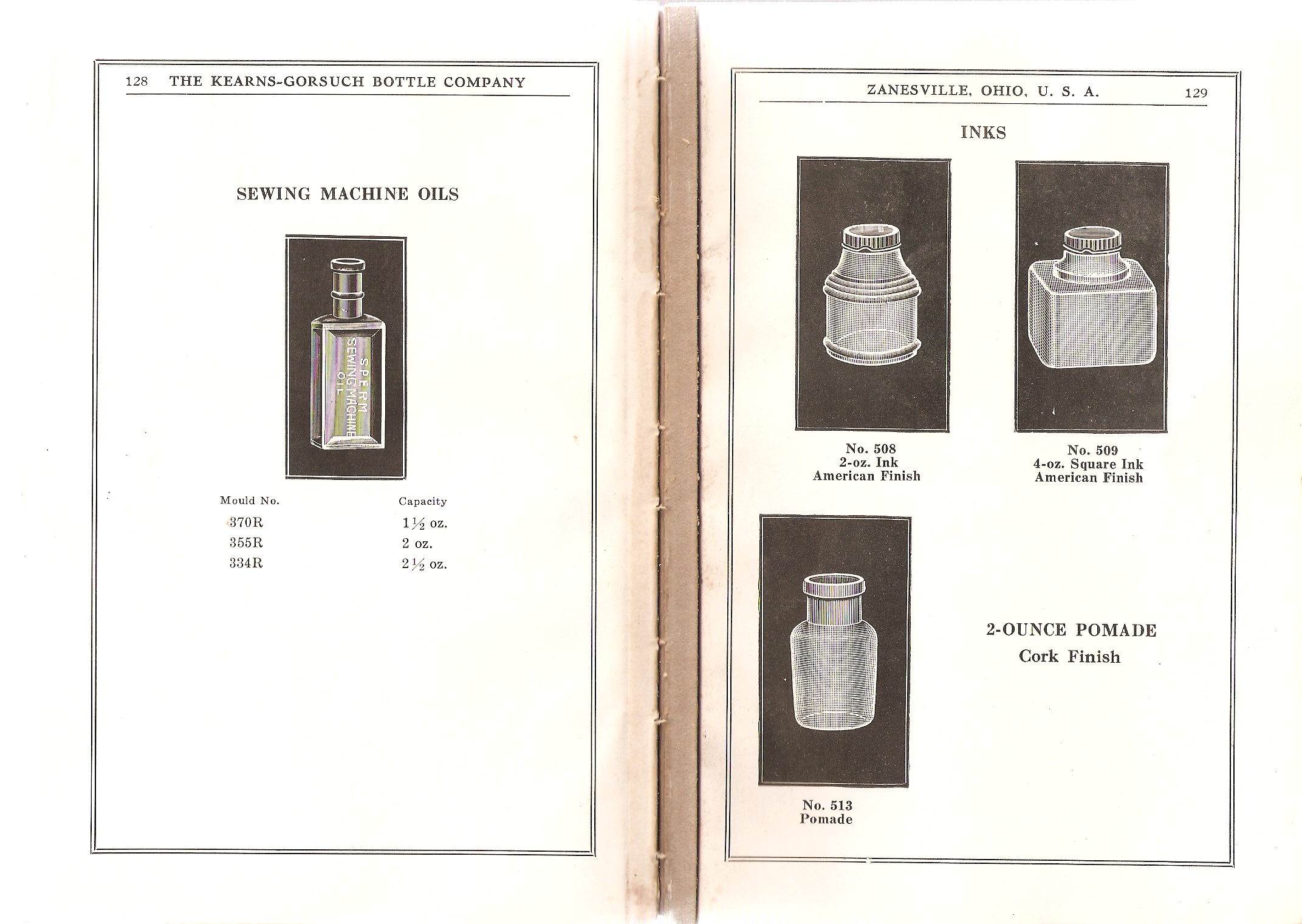

Pages 128-129: Sewing Machine Oils / Inks

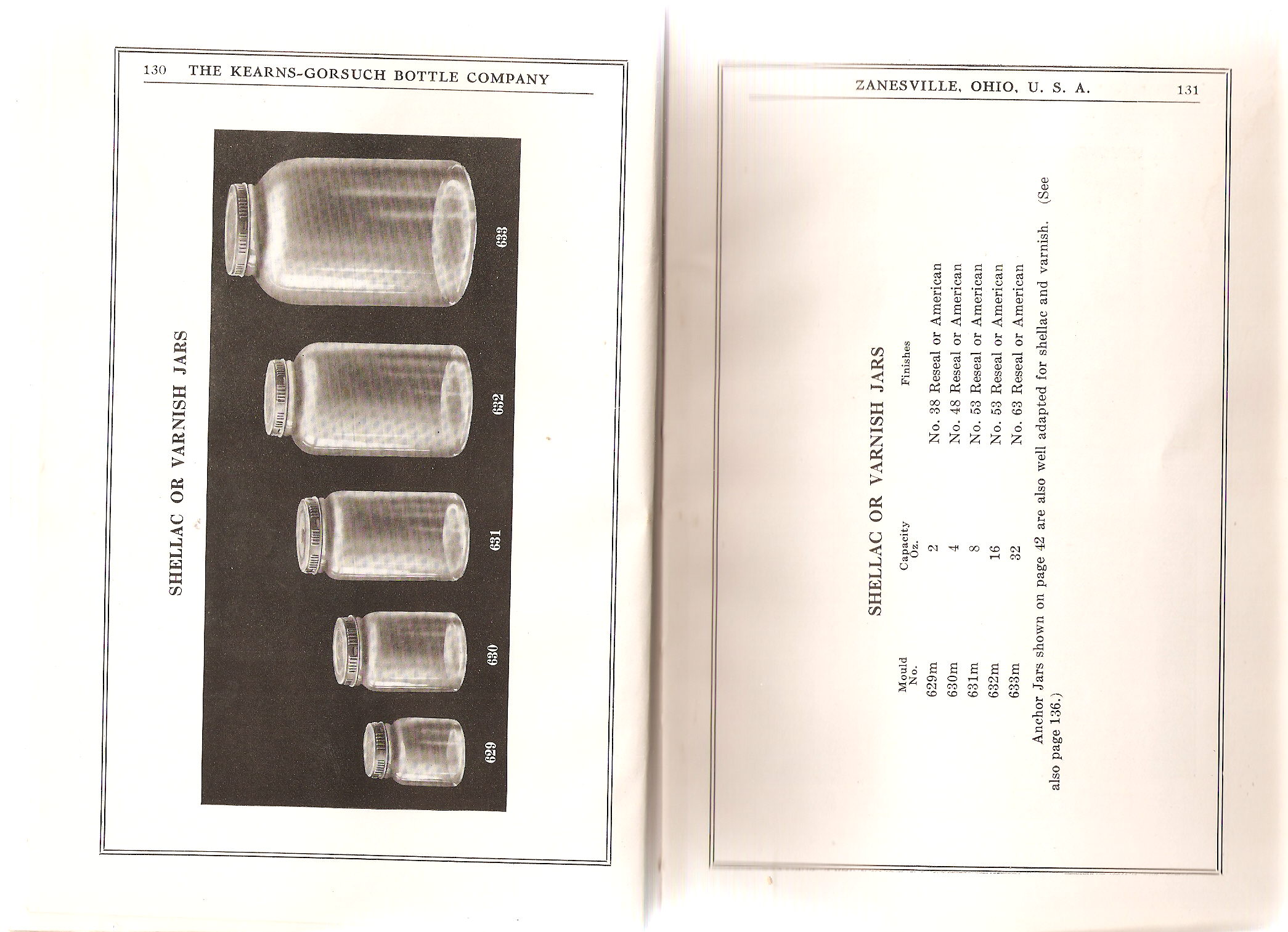

Pages 130-131: Shellac or Varnish Jars / sizes & details information
Pages 132-133: Round Shoe Polish, Quinine / Square Polish, Round Bluing

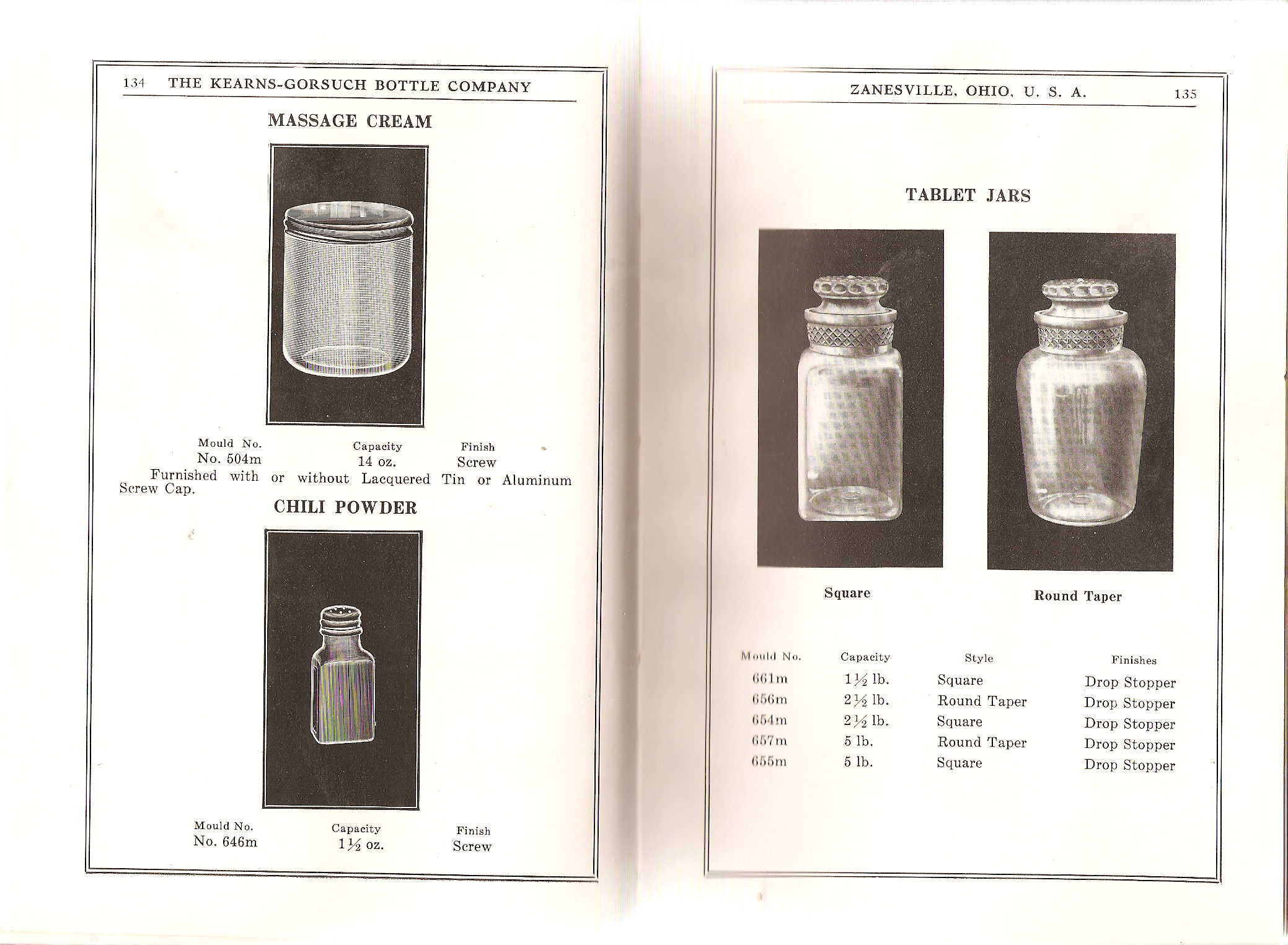

Pages 134-135: Massage Cream, Chili Powder / Tablet Jars

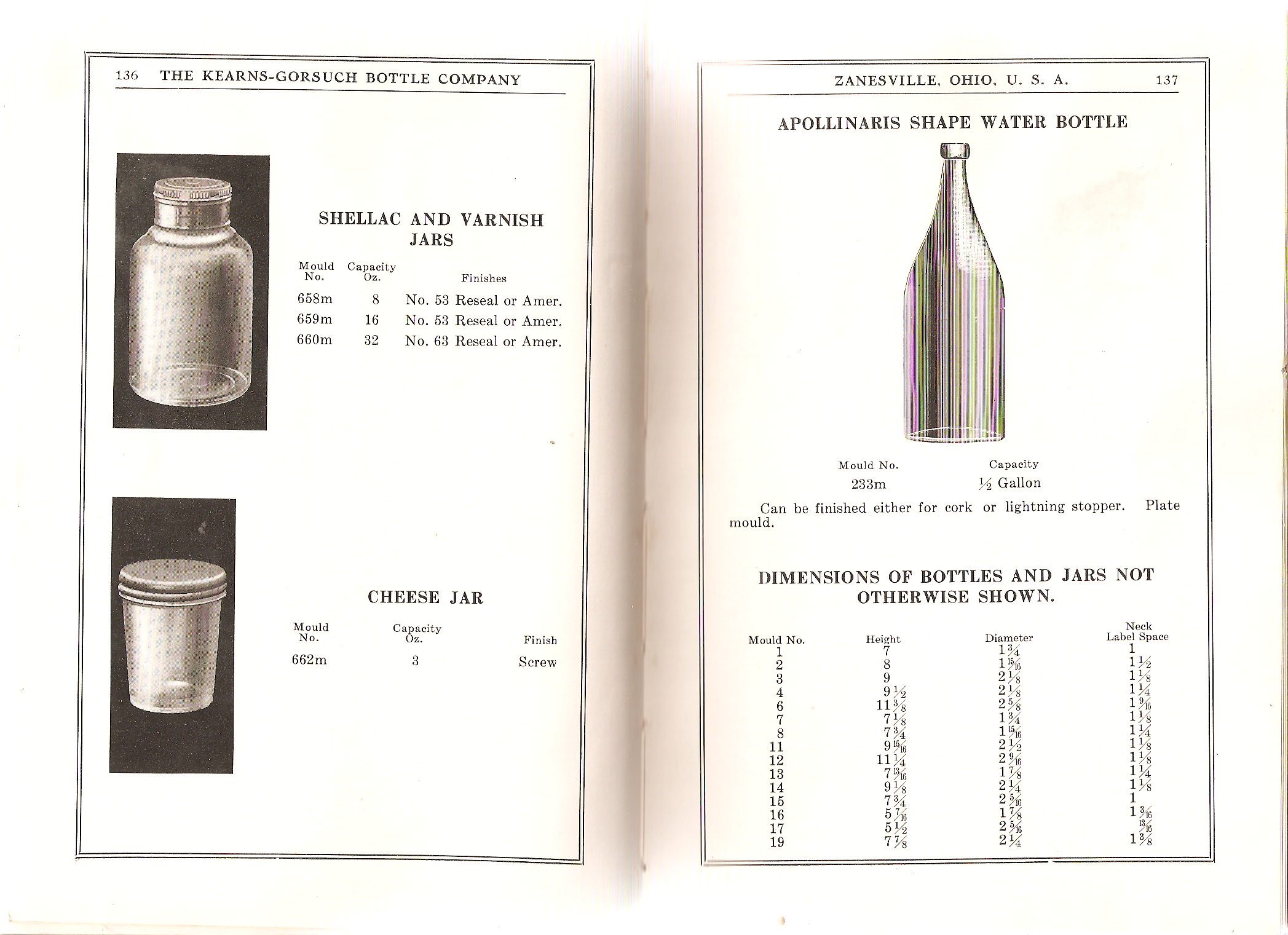

Pages 136-137: Shellac and Varnish Jars, Cheese Jar / Apollinaris Shape Water Bottle

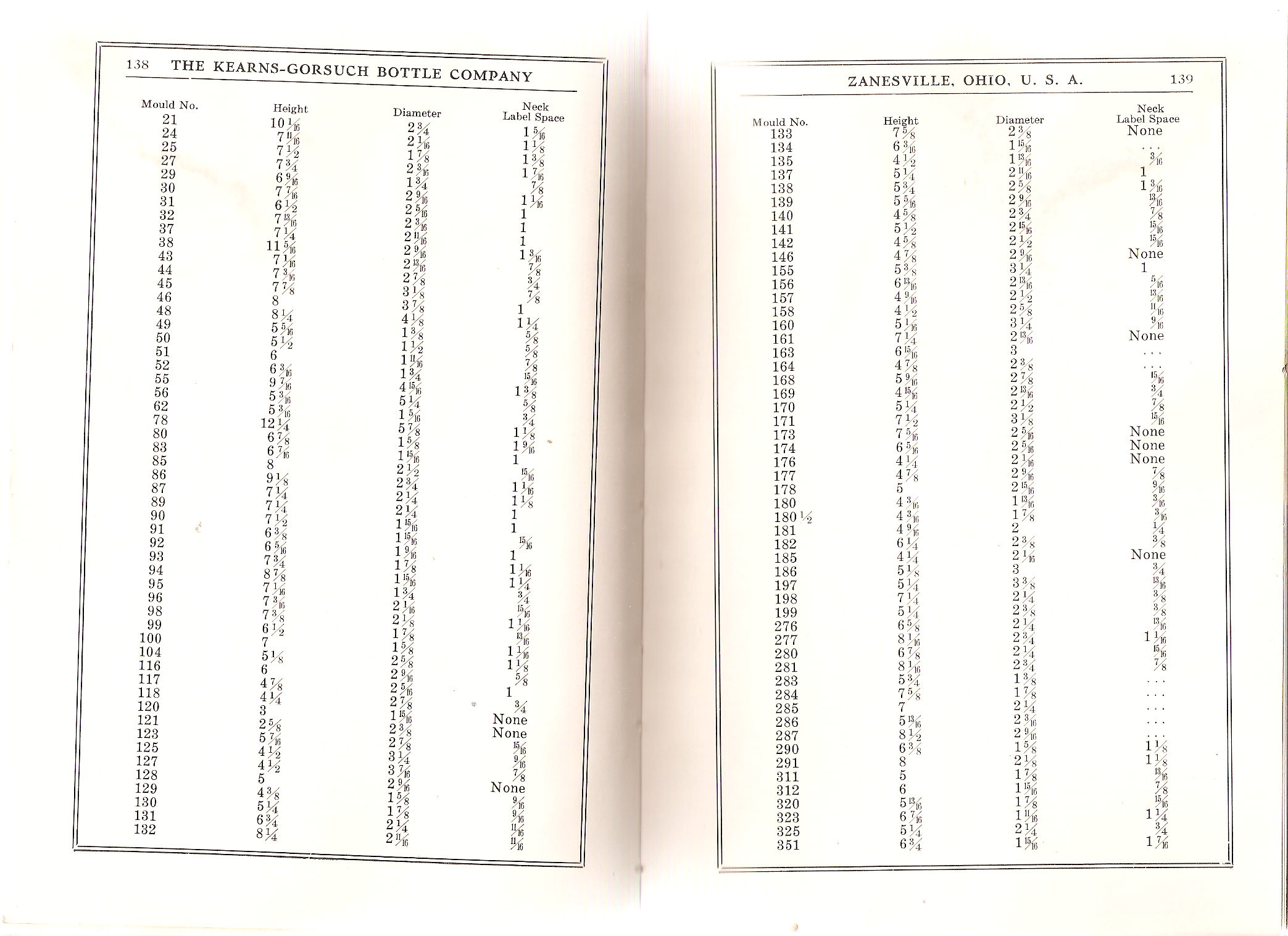

Pages 138-139: Listing of other bottles and jars by mold number (both pages; no illustrations)

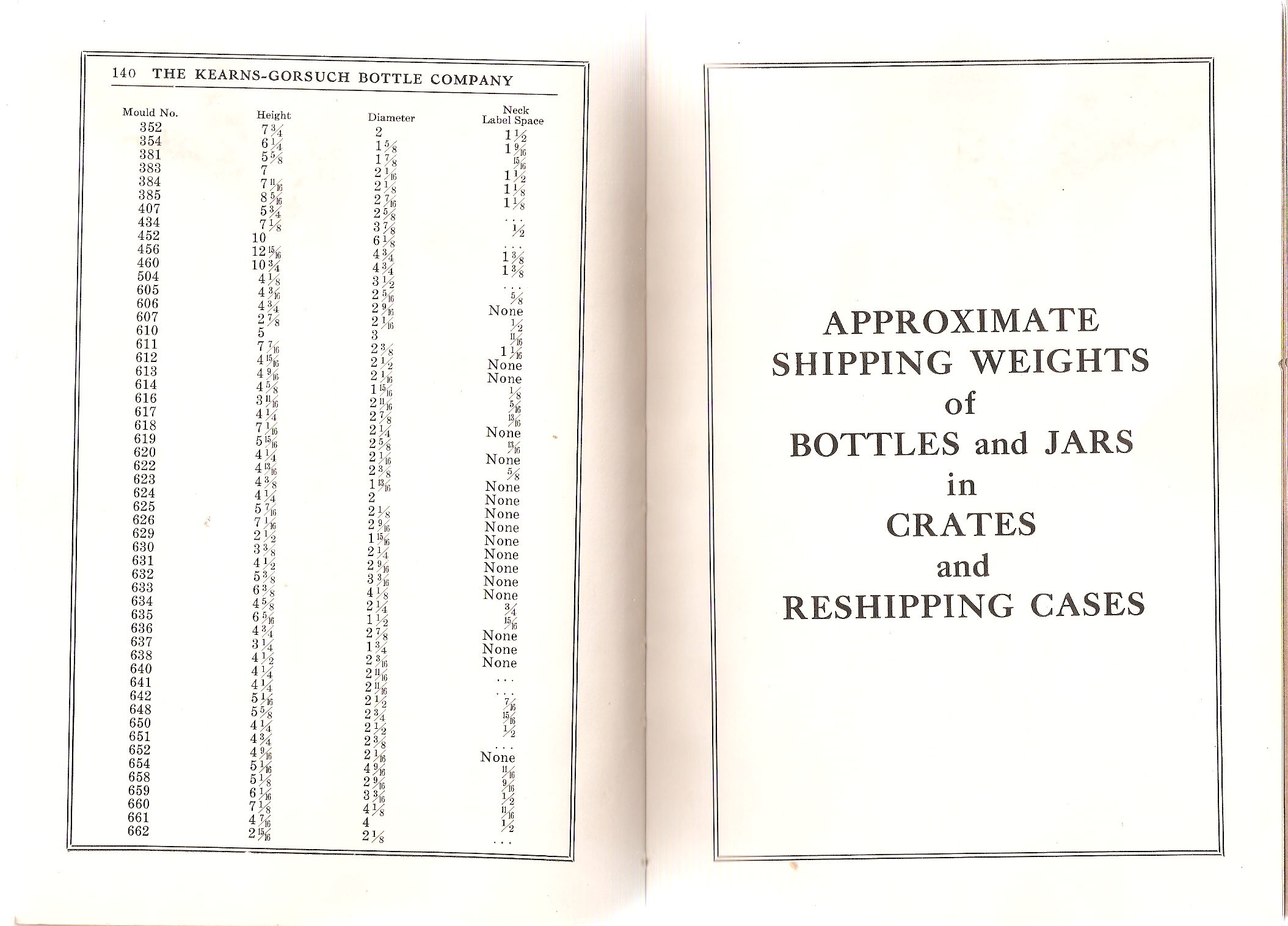

Pages 140-141: Listing of other bottles and jars by mold number (no illustrations) / Approximate Shipping Weights of Bottles and Jars in Crates and Shipping Cases

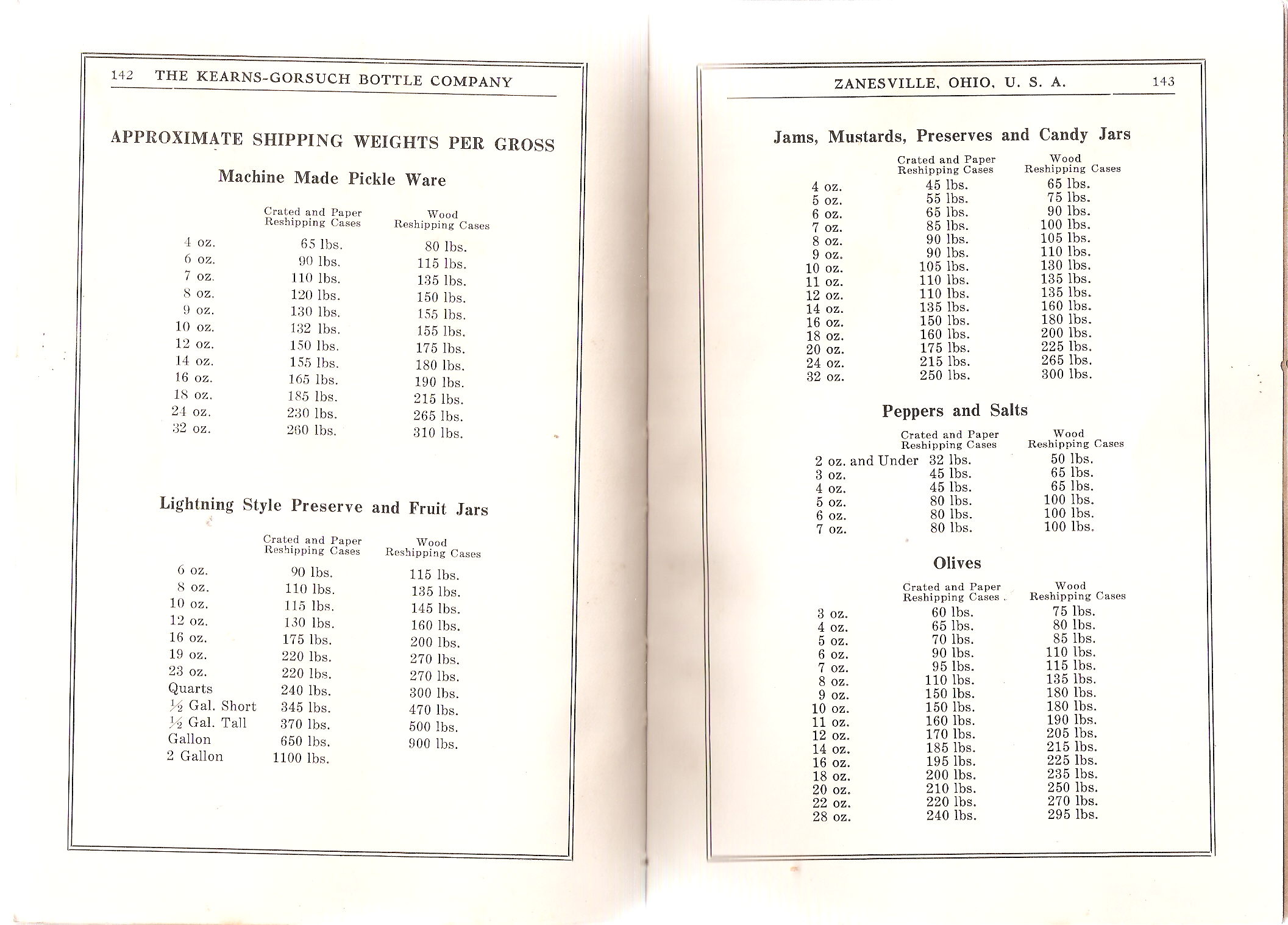

Pages 142-143: Shipping weights of different bottles styles (both pages)

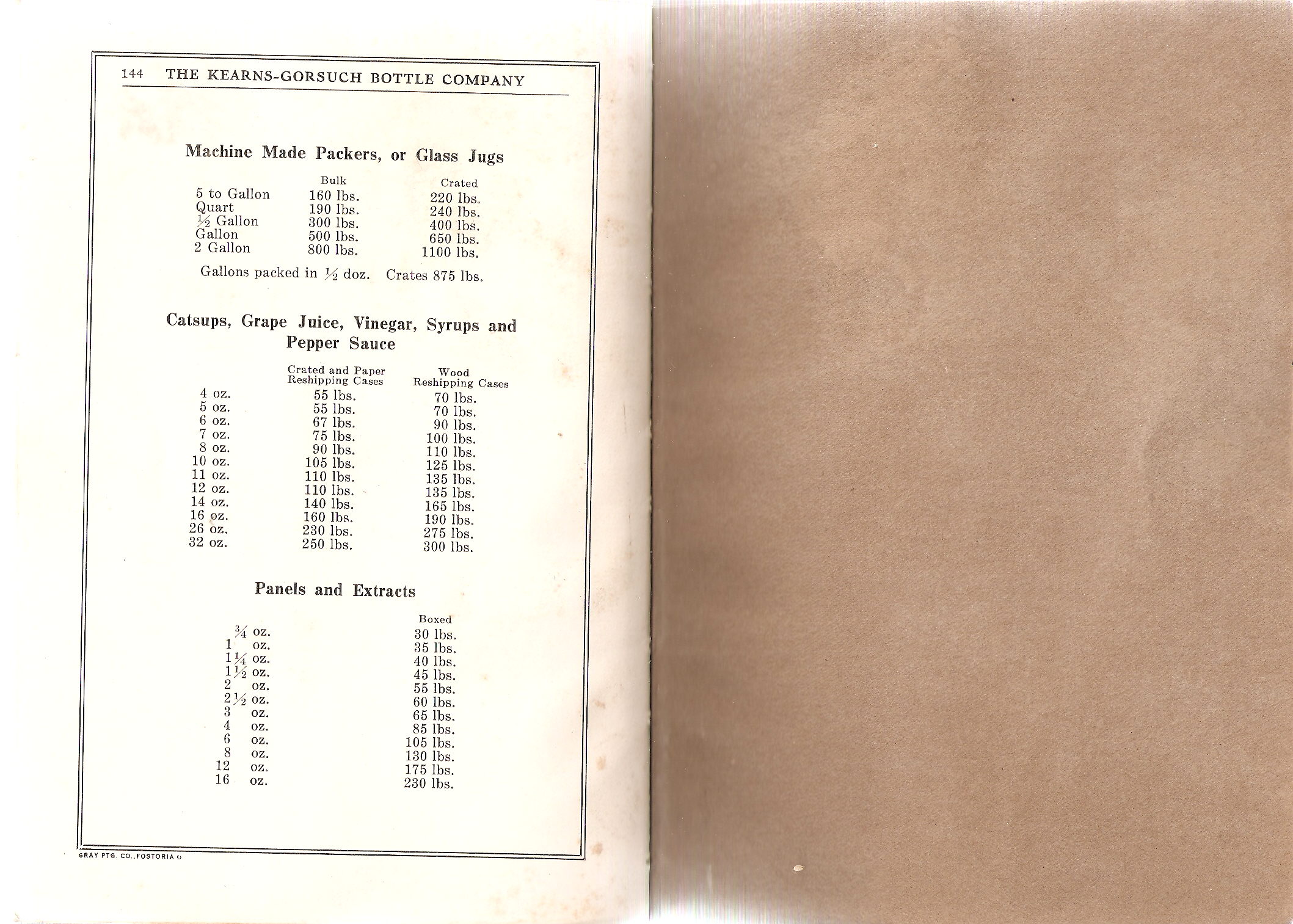

Page 144: Shipping weights of different bottles styles (continued)

End of the catalog.
